Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

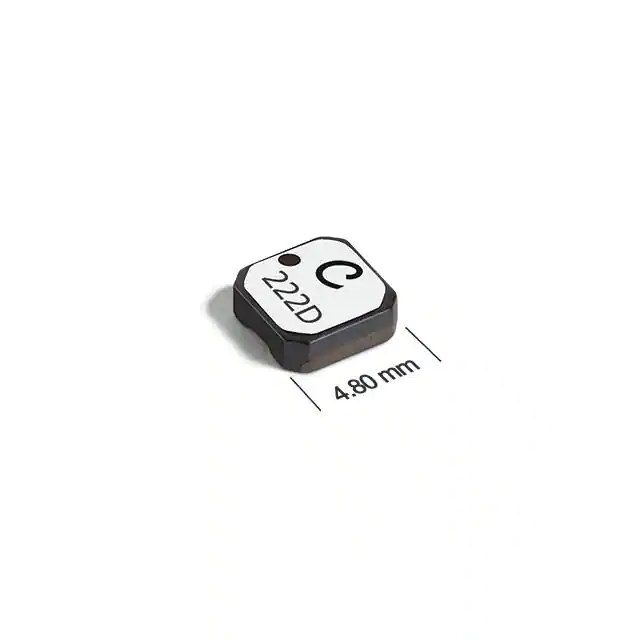

LPS5015-682MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
2,364 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 6.8 µH | ±20% | 900 mA | 1.3A | Shielded | 225mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-185MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,248 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.8 mH | ±20% | 85 mA | 78mA | Shielded | 28Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-223MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
726 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 22 µH | ±20% | 600 mA | 700mA | Shielded | 675mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-182MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
614 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.8 µH | ±20% | 1.5 A | 2.6A | Shielded | 75mOhm Max | - | 128MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-183MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
614 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 700 mA | 750mA | Shielded | 550mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-822MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
614 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 8.2 µH | ±20% | 850 mA | 1.3A | Shielded | 280mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-124MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
608 |
|
Datasheet |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 120 µH | ±20% | 270 mA | 250mA | Shielded | 2.5Ohm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|

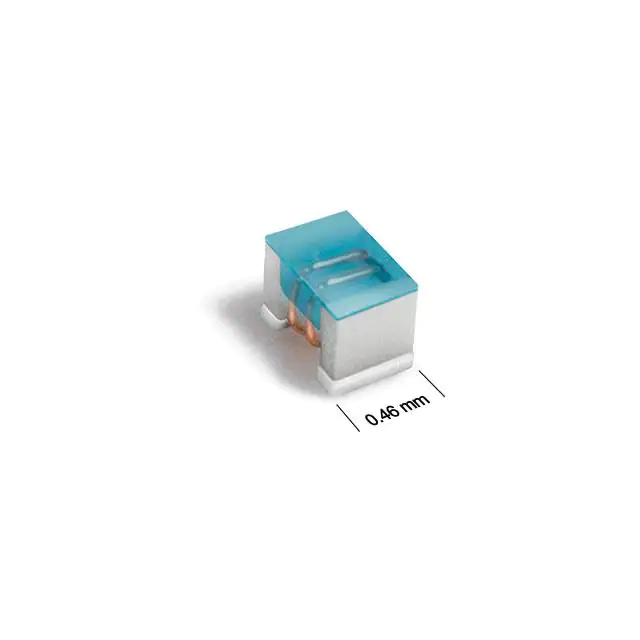

0201DS-7N7XJEWRF INDUCTOR, CERAMIC CORE, 5/10% Coilcraft |
4,840 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 7.7 nH | - | 340 mA | - | Unshielded | 300mOhm Max | 39 @ 900MHz | 9.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
0201DS-3N8XJEWRF INDUCTOR, CERAMIC CORE, 5/10% Coilcraft |
4,264 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 3.8 nH | - | 420 mA | - | Unshielded | 180mOhm Max | 38 @ 900MHz | 10.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
0201DS-5N4XJEWRF INDUCTOR, CERAMIC CORE, 5/10% Coilcraft |
3,230 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 5.4 nH | - | 510 mA | - | Unshielded | 130mOhm Max | 36 @ 900MHz | 10.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
