Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS12555T220MNFIXED IND 22UH 3.81A 35.64 MOHM |
2,378 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.81 A | 3.2A | Shielded | 35.64mOhm Max | - | 13.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
PA5449.332NLTFIXED IND 3.3UH 10A 15 MOHM SMD |
1,695 |
|
Datasheet |
PA5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 11A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|
WTH201612TA1R0MTFIXED IND 1.020%UH 0.031OHM 4400 |
1,375 |
|
Datasheet |
WT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
NS12555T331MNFIXED IND 330UH 960MA 410MOHM SM |
1,175 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 960 mA | 820mA | Shielded | 410mOhm | - | 3.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
CLF7045T-680M-DFIXED IND 68UH 950MA 252MOHM SMD |
1,168 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 950 mA | 1.1A | Shielded | 252mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
IHLP2020CZERR82M01FIXED IND 820NH 9.3A 11.9MOHM SM |
719 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 9.3 A | 13A | Shielded | 11.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP2525CZER8R2M1AIHLP-2525CZ-1A 8.2 20% ER E3 |
696 |
|
Datasheet |
IHLP-2525CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 5 A | 4A | Shielded | 54.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
NS12555T102MNFIXED IND 1MH 590MA 1.344OHM SMD |
475 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 590 mA | 470mA | Shielded | 1.344Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
IHLP4040DZER330M1AIHLP-4040DZ-1A 33 20% ER E3 |
313 |
|
Datasheet |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 4.4 A | 4A | Shielded | 94.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

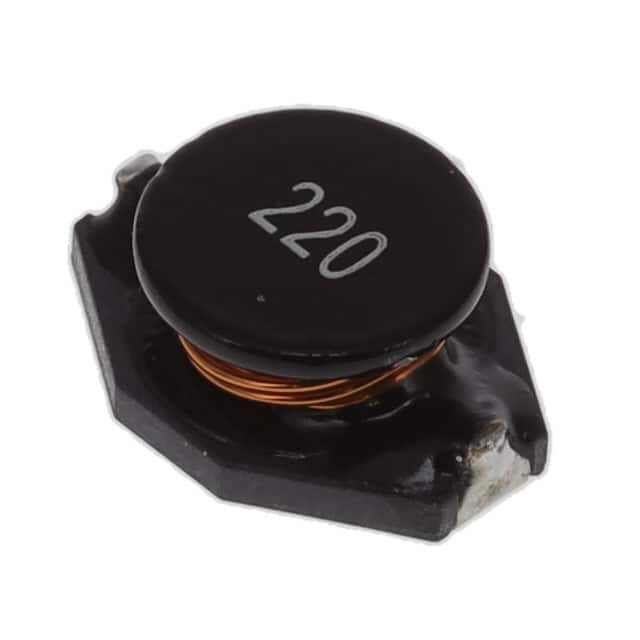

IDC5020ER220MFIXED IND 22UH 2.7A 85 MOHM SMD |
217 |
|
Datasheet |
IDC-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 2.6A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
SDR1307A-102KFIXED IND 1MH 650MA 1.6 OHM SMD |
205 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 650 mA | 1A | Unshielded | 1.6Ohm Max | 10 @ 252kHz | 1.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
SRR1260-6R1YFIXED IND 6.1UH 6.6A 17 MOHM SMD |
16,343 |
|
Datasheet |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±30% | 6.6 A | 6.8A | Shielded | 17mOhm Max | 21 @ 7.96MHz | 29.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLP2525BDER1R0M01FIXED IND 1UH 9A 14.2 MOHM SMD |
13,251 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 16A | Shielded | 14.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
SRR1240-6R8MFIXED IND 6.8UH 5.2A 23 MOHM SMD |
10,962 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.2 A | 4.7A | Shielded | 23mOhm Max | 14 @ 7.96MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SRR1050A-470YFIXED IND 47UH 2A 127 MOHM SMD |
6,230 |
|
Datasheet |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2 A | 2A | Shielded | 127mOhm Max | - | 5.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
SRR1280-270MFIXED IND 27UH 3.9A 52 MOHM SMD |
6,145 |
|
Datasheet |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.9 A | 3.7A | Shielded | 52mOhm Max | 26 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRP4018FA-R47MFIXED IND SMD |
6,047 |
|
Datasheet |
SRP4018FA | Nonstandard | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
MPXV1D0530L1R0FIXED IND 1UH 10.7A 11.5MOHM SMD |
5,121 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 10.7 A | 10.5A | Shielded | 11.5mOhm Max | - | 52MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
IHLP2020ABER3R3M01FIXED IND 3.3UH 2.8A 103MOHM SMD |
4,649 |
|
Datasheet |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.8 A | 5A | Shielded | 103mOhm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
IHLP2020CZERR10M11FIXED IND 100NH 21A 2.9 MOHM SMD |
3,960 |
|
Datasheet |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 21 A | 25A | Shielded | 2.9mOhm Max | - | 333MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
