Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

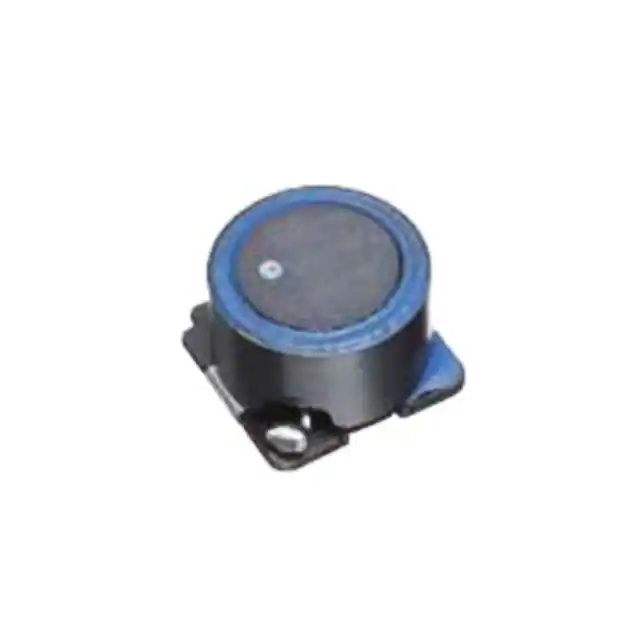

SLF10165T-4R7N4R73PFFIXED IND 4.7UH 4.7A 15.2MOHM SM |
1,291 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.7 A | 6.1A | Shielded | 15.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
|
SLF10165T-6R8N4R33PFFIXED IND 6.8UH 4.3A 18.2MOHM SM |
724 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.3 A | 4.6A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
B82476B1104M100FIXED IND 100UH 1.4A 230MOHM SMD |
716 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.4 A | 1.2A | Unshielded | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
EXL1V0605-2R2-RFIXED IND 2.2UH 13A 8.5MOHM SMD |
268 |
|
Datasheet |
EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 13 A | 12A | Shielded | 8.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
SRU1028A-101YFIXED IND 100UH 850MA 470MOHM SM |
228 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 850 mA | 800mA | Shielded | 470mOhm Max | 20 @ 796kHz | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
CDRH60D45BT150NP-470MCFIXED IND 47UH 1.4A 156MOHM SMD |
7,901 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.4 A | 1.28A | Shielded | 156mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
PA0511.221NLTFIXED IND 220NH 25A 0.39MOHM SMD |
5,833 |
|
Datasheet |
PA0511NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 25 A | 33A | Shielded | 0.39mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
IHLP1616BZER2R2MA1IHLP-1616BZ-A1 2.2 20% ER E3 |
3,791 |
|
Datasheet |
IHLP-1616BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 2.85 A | 6A | Shielded | 90mOhm Max | - | 39MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZERR22M51FIXED IND 0.22UH 12.6 A 7.5 MOHM |
3,684 |
|
Datasheet |
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 12.6 A | 12A | Shielded | 7.5mOhm Max | - | 171MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZERR47MA1IHLP-1616BZ-A1 .47 20% ER E3 |
3,084 |
|
Datasheet |
IHLP-1616BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 5.6 A | 11.5A | Shielded | 18mOhm Max | - | 97MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

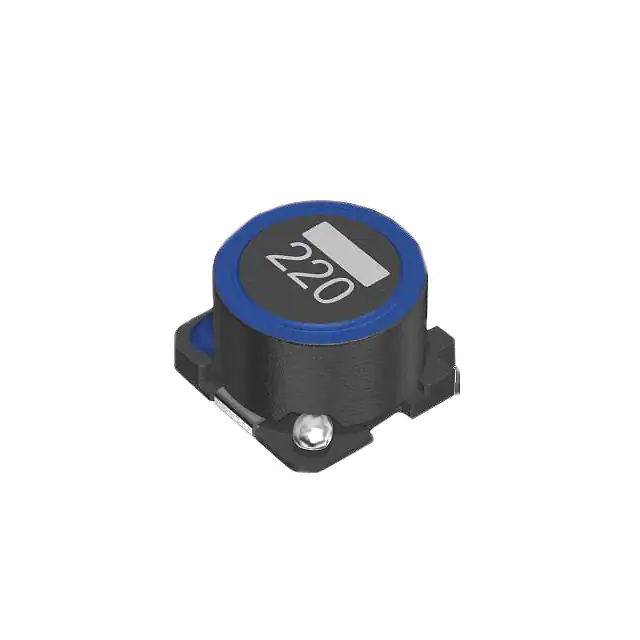

SLF7045T-471MR31-HINDUCTORS FOR POWER CIRCUITS, FO |
2,902 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 310 mA | 310mA | Shielded | 1.8Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
IHLP1616BZERR68M5AFIXED IND 0.68UH 7.6 A 18.8 MOHM |
1,505 |
|
Datasheet |
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7.6 A | 6.8A | Shielded | 18.8mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
CLF10040T-221M-DFIXED IND 220UH 700MA 624MOHM SM |
1,288 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 880mA | Shielded | 624mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
B82442T1222M050FIXED IND 2.2UH 2.71A 38MOHM SMD |
997 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 4.82A | Unshielded | 38mOhm Max | 15 @ 7.96MHz | 46MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
AMXLA-Q1040-2R2M-TIND 2.2UH 15A 7.2M |
926 |
|
Datasheet |
AMXLA-Q1040 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 15 A | 18A | Shielded | 7.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPI-0403S-100M-TFIXED IND 10UH 1A 75 MOHM SMD |
509 |
|
Datasheet |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SDR1806-220MLFIXED IND 22UH 3.6A 45 MOHM SMD |
7,092 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 6.7A | Unshielded | 45mOhm Max | 22 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU1048A-150YFIXED IND 15UH 3.2A 40 MOHM SMD |
6,674 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 2.7A | Shielded | 40mOhm Max | 30 @ 2.52MHz | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
ISC1812ER101JFIXED IND 100UH 147MA 3.25OHM SM |
5,567 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 147 mA | - | Shielded | 3.25Ohm Max | 40 @ 796kHz | 7MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SDR1806-102KLFIXED IND 1MH 500MA 1.8 OHM SMD |
4,433 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 500 mA | 1A | Unshielded | 1.8Ohm Max | 10 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
