Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDWK4040T1R5MMVFIXED IND 1.5UH 4.1A 41MOHM SMD |
1,408 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.1 A | 7A | Shielded | 41mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
FP0404R1-R100-RFIXED IND 100NH 40A 0.32MOHM SMD |
1,800 |
|
Datasheet |
FP0404 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 40 A | 15.6A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
74404063681FIXED IND 680UH 270MA 5.526 OHM |
2,027 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 270 mA | 290mA | Shielded | 5.526Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
SDR1305-330MFIXED IND 33UH 2.5A 85 MOHM SMD |
1,795 |
|
Datasheet |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 2.6A | Unshielded | 85mOhm Max | 23 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.201" (5.10mm) |
|
PM4345.103NLTFIXED IND 10UH 2.3A 199MOHM SMD |
17,273 |
|
Datasheet |
PM4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.3 A | 3.4A | Shielded | 199mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|

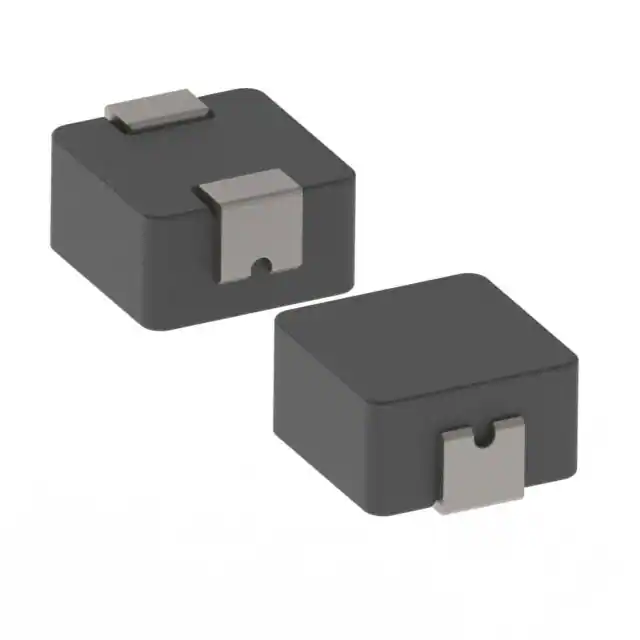

PM4340.472NLTFIXED IND 4.7UH 4.6A 53MOHM SMD |
7,788 |
|
Datasheet |
PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
ETQ-P3MR68KVPFIXED IND 680NH 10.2A 8.36 MOHM |
7,297 |
|
Datasheet |
PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 10.2 A | 15.9A | Shielded | 8.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
PA4548.222NLTFIXED IND 2.2UH 6A 28 MOHM SMD |
3,618 |
|
Datasheet |
PA4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6 A | 12A | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
RCR875DNP-102KFIXED IND 1MH 230MA 2.72 OHM TH |
2,615 |
|
Datasheet |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1 mH | ±10% | 230 mA | - | Shielded | 2.72Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

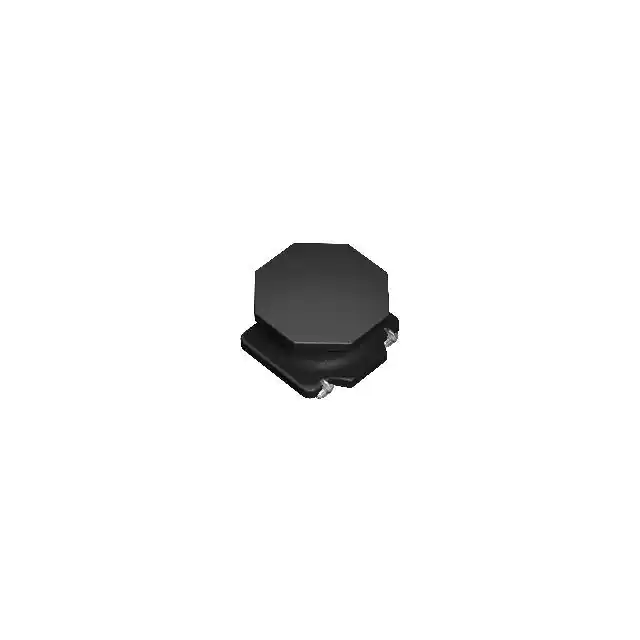

LCDND3030MKT2R2MMFIXED IND 2.2UH 2.1A 112MOHM SMD |
2,436 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.1 A | 2.8A | Unshielded | 112mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74406032033FIXED IND 3.3UH 1.59A 77MOHM SMD |
2,116 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.59 A | 1.31A | Shielded | 77mOhm Max | - | 132MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
PA4548.102NLTFIXED IND 1UH 9A 13.5 MOHM SMD |
1,834 |
|
Datasheet |
PA4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 14.5A | Unshielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
IHLP1212BZEV2R2M01IHLP-1212BZ-01 2.2 20% EV E3 |
1,197 |
|
Datasheet |
IHLP-1212BZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 3.55 A | 4.93A | Shielded | 80.37mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
74406042100FIXED IND 10UH 1.61A 133MOHM SMD |
1,027 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.61 A | 1.1A | Shielded | 133mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
MHE05034R7M-10HIGH CURRENT LOW DCR POWER INDUC |
7,767 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.9 A | 8.5A | Shielded | 35.5mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
CR43NP-3R3MCFIXED IND 3.3UH 1.44A 86.2 MOHM |
7,145 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.44 A | - | Unshielded | 86.2mOhm Max | - | 60MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
SBC2-1R0-612FIXED IND 1UH 6.1A 10 MOHM TH |
3,758 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 6.1 A | 6.4A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
1248AS-H-150M=P3FIXED IND 15UH 2.7A 78 MOHM SMD |
3,000 |
|
Datasheet |
DEM8040C | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.7 A | 3.4A | Shielded | 78mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SBC4-6R8-452FIXED IND 6.8UH 4.5A 30 MOHM TH |
2,613 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.5 A | 5.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
SBC3-101-961FIXED IND 100UH 960MA 260MOHM TH |
2,055 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 960 mA | 1A | Unshielded | 260mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
