0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2320-V-RCFIXED IND 470UH 3.8A 130 MOHM TH |
2,452 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2309-V-RCFIXED IND 47UH 10.7A 16 MOHM TH |
1,631 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

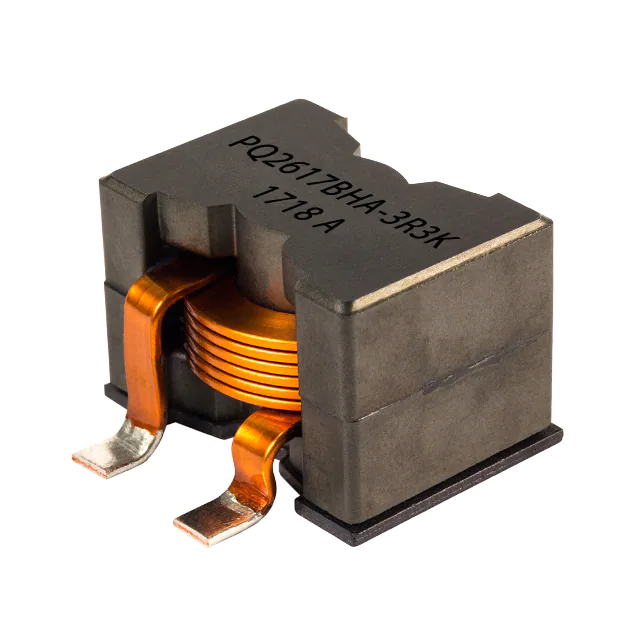

PQ2617BHA-150KFIXED IND 15UH 28A 2.5 MOHM SMD |
1,453 |
|
Datasheet |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 28 A | 21.2A | Shielded | 2.5mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
|
2306-V-RCFIXED IND 27UH 15.6A 8 MOHM TH |
808 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 15.6 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2319-V-RCFIXED IND 390UH 5A 72 MOHM TH |
483 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 390 µH | ±15% | 5 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2318-V-RCFIXED IND 330UH 5.2A 67 MOHM TH |
299 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 5.2 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2209-V-RCFIXED IND 47UH 6.7A 24 MOHM TH |
1,071 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|

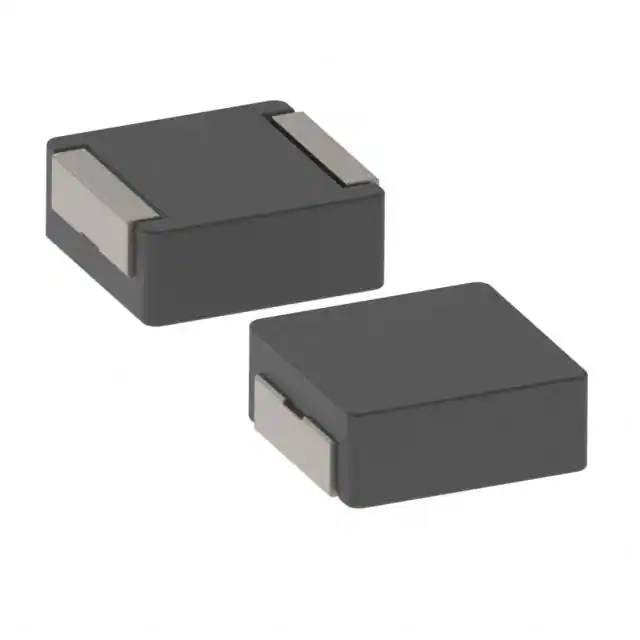

PA4344.473ANLTFIXED IND 47UH 9.5A 47 MOHM SMD |
1,585 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 9.5 A | 9.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.103ANLTFIXED IND 10UH 21A 10.6 MOHM SMD |
1,065 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 21 A | 22A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
74439358047FIXED IND 4.7UH 9.5A 8.65MOHM SM |
943 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 9.5 A | 20.5A | Shielded | 8.65mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|

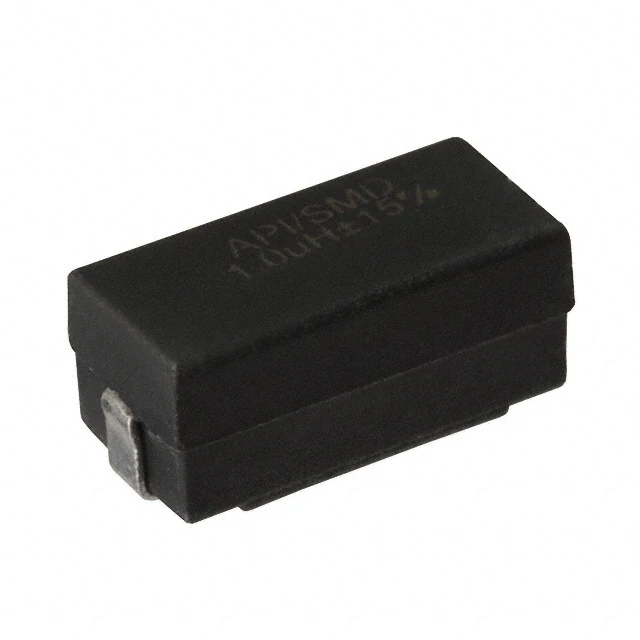

4922R-17LFIXED IND 22UH 1.61A 152MOHM SMD |
103 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 1.61 A | 1.61A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
HC9-470-RFIXED IND 47UH 3.65A 72.3MOHM SM |
454 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±15% | 3.65 A | 5.7A | Unshielded | 72.3mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|

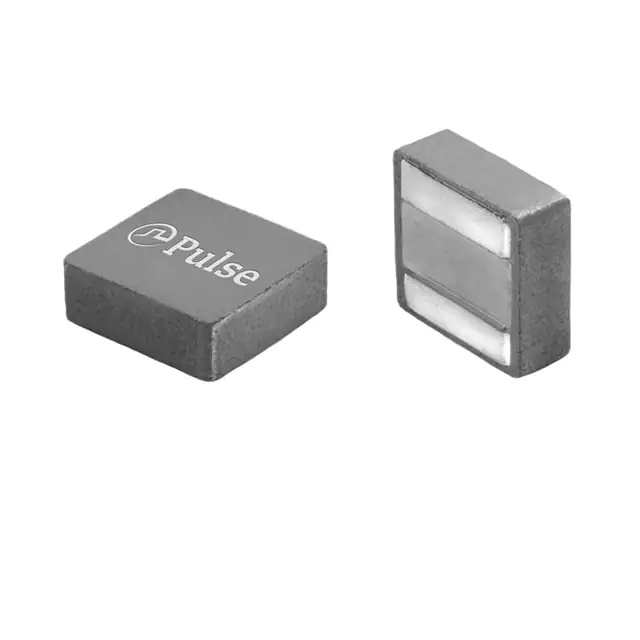

PA2248.153NLTFIXED IND 15UH 22A 7.5 MOHM SMD |
1,395 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 22 A | 25.5A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
IHSM4825ER470LFIXED IND 47UH 1.07A 362MOHM SMD |
630 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.07 A | 740mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
FP3-2R0-RFIXED IND 2UH 5.4A 15 MOHM SMD |
2,024 |
|
Datasheet |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±15% | 5.4 A | 6.9A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

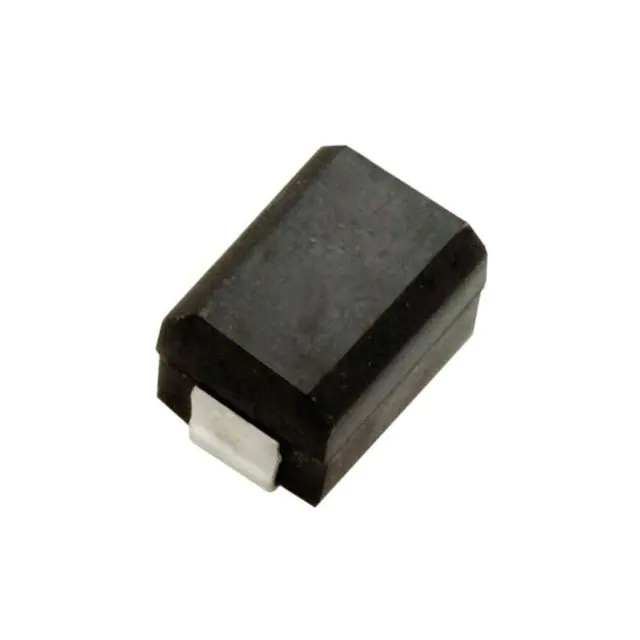

S1812R-563KFIXED IND 56UH 235MA 3.6 OHM SMD |
9,053 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 235 mA | - | Shielded | 3.6Ohm Max | 50 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-102KFIXED IND 1UH 755MA 350 MOHM SMD |
7,725 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 755 mA | - | Shielded | 350mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-103KFIXED IND 10UH 333MA 1.8 OHM SMD |
4,500 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 333 mA | - | Shielded | 1.8Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-105KFIXED IND 1MH 60MA 55 OHM SMD |
1,037 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 60 mA | - | Shielded | 55Ohm Max | 40 @ 790kHz | 2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-104KFIXED IND 100UH 169MA 7 OHM SMD |
797 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 169 mA | - | Shielded | 7Ohm Max | 40 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
