Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447669012FIXED IND 1.2UH 1.8A 105MOHM SMD |
1,991 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±10% | 1.8 A | - | Unshielded | 120mOhm Max | 15 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
744761016AFIXED IND 1.6NH 700MA 30MOHM SMD |
1,849 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.6 nH | ±0.2nH | 700 mA | - | Unshielded | 30mOhm Max | 24 @ 250MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.049" (1.25mm) |
|
ASPI-3012S-100M-TFIXED IND 10UH 830MA 265MOHM SMD |
1,834 |
|
Datasheet |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 830 mA | 600mA | Shielded | 265mOhm | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
VLS3012HBX-150M-NINDUCTORS FOR POWER CIRCUITS, WO |
1,707 |
|
Datasheet |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.11 A | 1.2A | Shielded | 636mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
B78148E1471M000FIXED IND 470NH 5A 27 MOHM TH |
1,406 |
|
Datasheet |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 5 A | 8.5A | Unshielded | 27mOhm Max | 60 @ 7.96MHz | 400MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
55081013400FIXED IND 100NH 350MA 260MOHM SM |
1,405 |
|
Datasheet |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 350 mA | - | Unshielded | 260mOhm Max | 40 @ 150MHz | 1.31GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
RLB0812-101KLFIXED IND 100UH 320MA 600MOHM TH |
1,282 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 320 mA | - | Unshielded | 600mOhm Max | 45 @ 796kHz | 4.2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
RLB0608-681KLFIXED IND 680UH 125MA 9 OHM TH |
1,177 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 125 mA | - | Unshielded | 9Ohm Max | 55 @ 796kHz | 2.2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
7447649133FIXED IND 33UH 320MA 3.64OHM SMD |
1,134 |
|
Datasheet |
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±10% | 320 mA | - | Unshielded | 3.64Ohm Max | 35 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
PE-0603CD6N2JTTFIXED IND 6.2NH 700MA 110MOHM SM |
1,081 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 25 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
LQM18PH3R3MFRLFIXED IND 3.3UH 700MA 438MOHM SM |
1,063 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 700 mA | 80mA | Shielded | 438mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
RLB0608-6R8KLFIXED IND 6.8UH 620MA 400MOHM TH |
1,030 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 620 mA | - | Unshielded | 400mOhm Max | 60 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
B78108E1104J009FIXED IND 100UH 640MA 1.45OHM TH |
29,683 |
|
Datasheet |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 640 mA | 580mA | Unshielded | 1.45Ohm Max | 60 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
|
PE-0603CD150GTTFIXED IND 15NH 700MA 170MOHM SMD |
17,770 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 700 mA | - | Unshielded | 170mOhm Max | 30 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
PE-0603CD330GTTFIXED IND 33NH 600MA 220MOHM SMD |
13,740 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 220mOhm Max | 35 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
BPSD000504321R0K00FIXED IND 1UH 33 MOHM SMD |
11,383 |
|
Datasheet |
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±10% | - | 3.8A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDCH1V5020-101M-RIND 100 UH 0.55A SMT |
9,213 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 500 mA | 550mA | Shielded | 1.277Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
LQW15CNR11J1ZDFIXED IND 106NH 850MA 0.144OHM |
7,850 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 106 nH | ±5% | 850 mA | - | Unshielded | 144mOhm Max | - | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-Height-1.20mm.jpg)
|
1277AS-H-1R5M=P2FIXED IND 1.5UH 2.6A 65 MOHM SMD |
5,624 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.6 A | 3A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

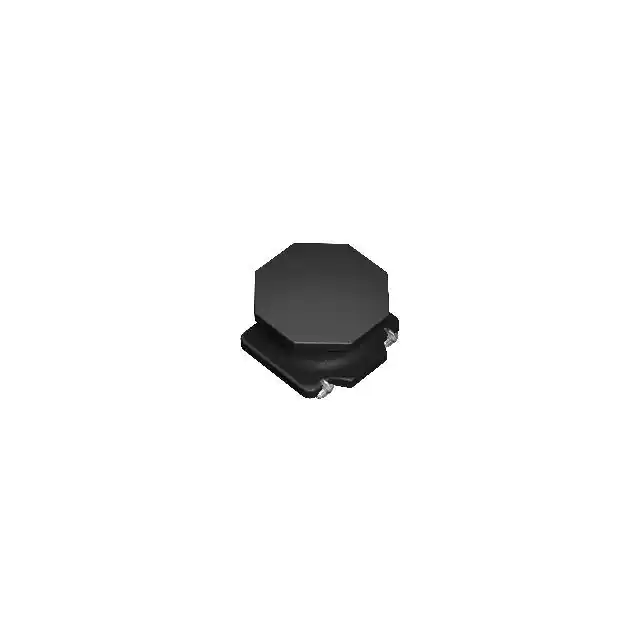

LSDND2020MKT1R0MMFIXED IND 1UH 1.9A 64 MOHM SMD |
5,542 |
|
Datasheet |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.9 A | 2.55A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
