Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5218FIXED IND 3.35UH 20A 10 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | 107MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
|
5219FIXED IND 4.9UH 15A 16 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.9 µH | ±20% | 15 A | - | Unshielded | 16mOhm Max | - | 95MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
5300-14FIXED IND 12UH 1.4A 110 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 1.4 A | 880mA | Unshielded | 110mOhm Max | - | 17MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|

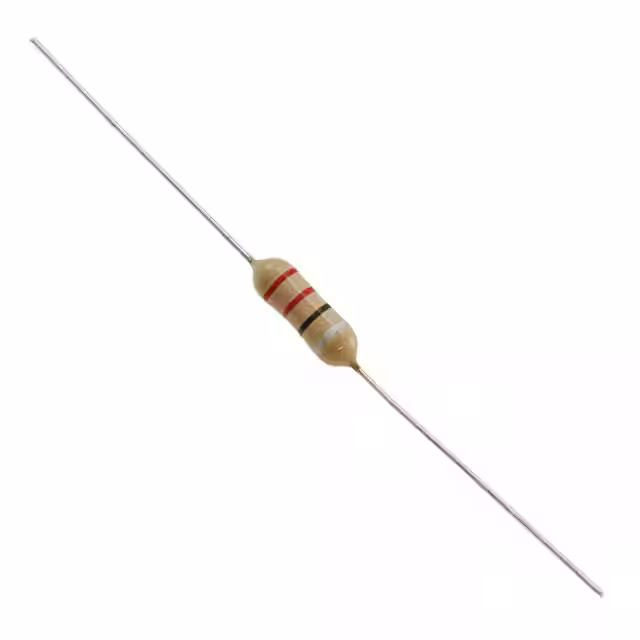

5300-19FIXED IND 33UH 910MA 240 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 910 mA | 530mA | Unshielded | 240mOhm Max | - | 7.6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-44FIXED IND 3.9MH 77MA 34 OHM TH Bourns Inc. |
0 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 77 mA | 48mA | Unshielded | 34Ohm Max | - | 480kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
5501FIXED IND 5UH 10A 13 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
|
5503FIXED IND 27UH 7A 30 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 0.880" L (20.57mm x 22.35mm) | - |
|
|
5505FIXED IND 100UH 4.9A 61 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 4.9 A | - | Unshielded | 61mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.120" L (20.57mm x 28.45mm) | - |
|
|
5506FIXED IND 150UH 4.6A 69 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 4.6 A | - | Unshielded | 69mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.380" L (20.57mm x 35.05mm) | - |
|
|
5508FIXED IND 5UH 14A 9 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 14 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.880" L (16.26mm x 22.35mm) | - |
