Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

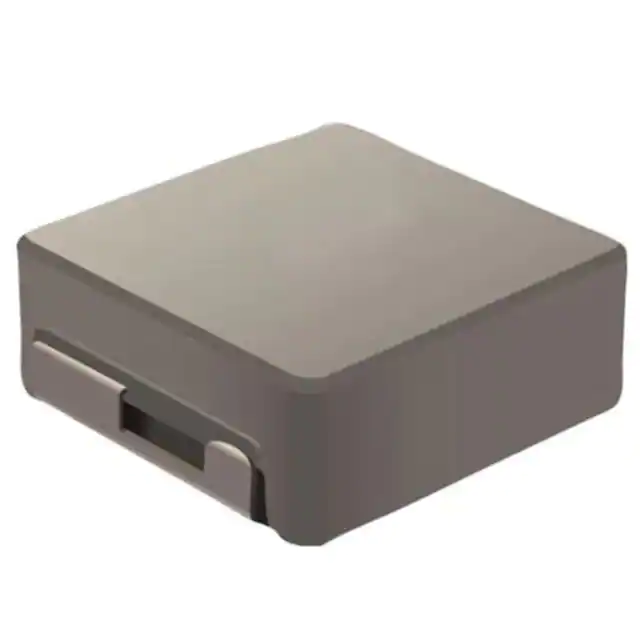

SRP1770C-470MFIXED IND 47UH 8.7A 53 MOHM SMD Bourns Inc. |
11 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 47 µH | ±20% | 8.7 A | 13A | Shielded | 53mOhm Max | 20 @ 100kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-150MFIXED IND 15UH 14A 19.5 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 15 µH | ±20% | 14 A | 23A | Shielded | 19.5mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-220MFIXED IND 22UH 12A 27.6 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 22 µH | ±20% | 12 A | 19A | Shielded | 27.6mOhm Max | 20 @ 100kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-1R0MFIXED IND 1UH 48A 1.5 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 48 A | 68A | Shielded | 1.5mOhm Max | 20 @ 100kHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-1R5MFIXED IND 1UH 42A 2.1 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 42 A | 55A | Shielded | 2.1mOhm Max | 20 @ 100kHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770C-8R2MFIXED IND 8.2UH 18A 10.8MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP1770C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 18 A | 28A | Shielded | 10.8mOhm Max | 20 @ 100kHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
2300HT-150-V-RCFIXED IND 15UH 20.8A 7 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 20.8 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-180-V-RCFIXED IND 18UH 20.2A 7 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 20.2 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-1R2-V-RCFIXED IND 1.2UH 38.7A 2 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 38.7 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-1R8-V-RCFIXED IND 1.8UH 34.6A 3 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.8 µH | ±15% | 34.6 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
