Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300LL-271-V-RCFIXED IND 270UH 4.8A 70 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 270 µH | ±15% | 4.8 A | - | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-471-V-RCFIXED IND 470UH 4.2A 94 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 4.2 A | - | Shielded | 94mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-821-V-RCFIXED IND 820UH 3.6A 123 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 820 µH | ±15% | 3.6 A | - | Shielded | 123mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-1R5-RCFIXED IND 1.5UH 34A 1 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Discontinued at Digi-Key | Toroidal | Sendust | 1.5 µH | ±20% | 34 A | - | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
5729FIXED IND 100UH 2.5A 80 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 2.5 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5730FIXED IND 70UH 3A 50 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 70 µH | ±15% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5731FIXED IND 40UH 4A 25 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 40 µH | ±15% | 4 A | - | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
PM12639S-R67M-RCFIXED IND 670NH 28A 2.5 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12639S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 670 nH | ±20% | 28 A | 32A | Shielded | 2.5mOhm Max | - | 72MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
PM12639S-1R2M-RCFIXED IND 1.2UH 21A 4.5 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12639S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 1.2 µH | ±20% | 21 A | 29A | Shielded | 4.5mOhm Max | - | 37MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|

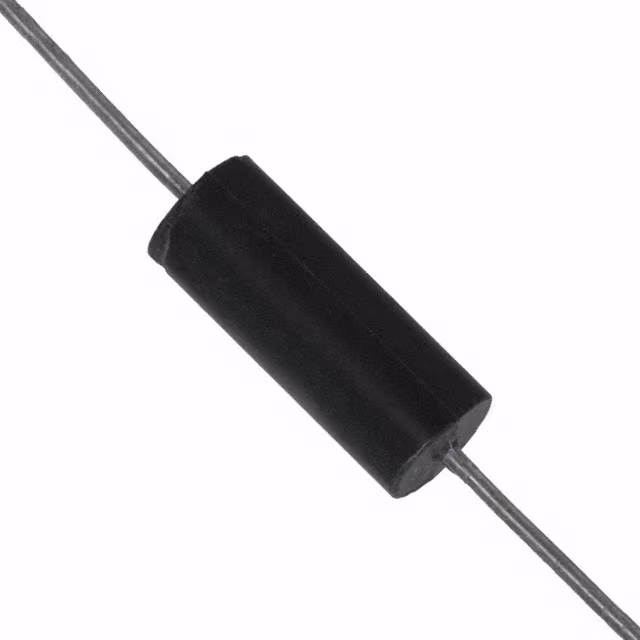

9250-686FIXED IND 68MH 12MA 580 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 12 mA | 4mA | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
