Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2202-H-RCFIXED IND 12UH 12A 8 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±15% | 12 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2203-H-RCFIXED IND 15UH 11.3A 8 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 15 µH | ±15% | 11.3 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2204-H-RCFIXED IND 18UH 10.8A 9 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 18 µH | ±15% | 10.8 A | - | Shielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2213-H-RCFIXED IND 120UH 3.3A 98 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 3.3 A | - | Shielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2215-H-RCFIXED IND 180UH 3.8A 75 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 3.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
PM12645S-1R2MFIXED IND 1.2UH 20A 2 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±20% | 20 A | - | Shielded | 2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
PM12645S-1R8MFIXED IND 1.8UH 13A 3.5 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | 13 A | - | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

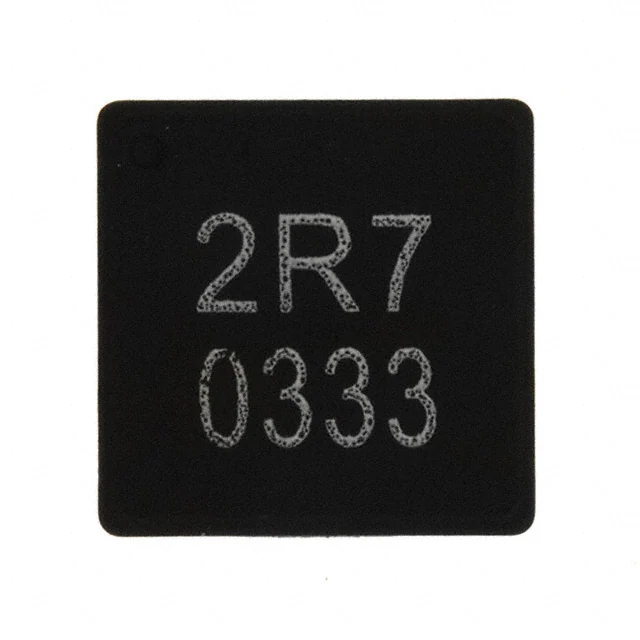

PM12645S-2R7MFIXED IND 2.7UH 12A 4.3 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±20% | 12 A | - | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
PM12651S-4R7MFIXED IND 4.7UH 12A 7.2 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM12651S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 12 A | - | Shielded | 7.2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

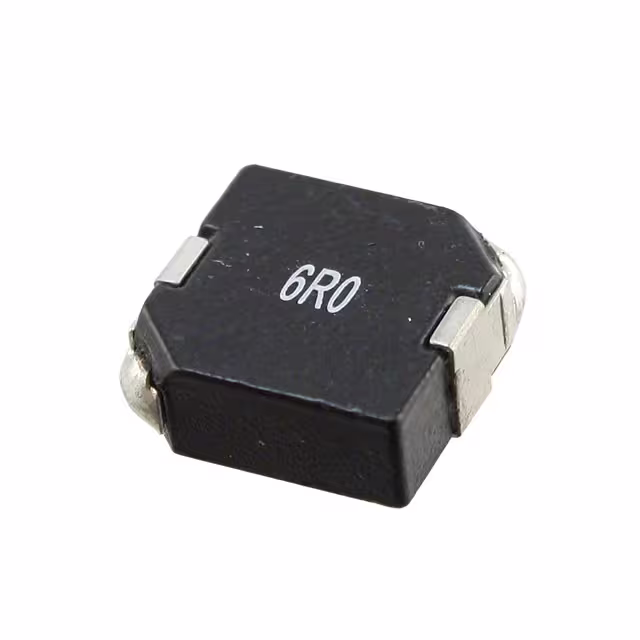

PM13560S-6R0MFIXED IND 6UH 9.5A 10.7 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 6 µH | ±20% | 9.5 A | - | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
