Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2102-H-RCFIXED IND 12UH 10.3A 7 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 12 µH | ±15% | 10.3 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2108-H-RCFIXED IND 39UH 4.8A 32 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 39 µH | ±15% | 4.8 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2123-H-RCFIXED IND 820UH 1.4A 370 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 820 µH | ±15% | 1.4 A | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
5220FIXED IND 8.8UH 10A 21 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.8 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | 64MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
2100LL-121-V-RCFIXED IND 120UH 4.1A 39 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Sendust | 120 µH | ±15% | 4.1 A | - | Shielded | 39mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

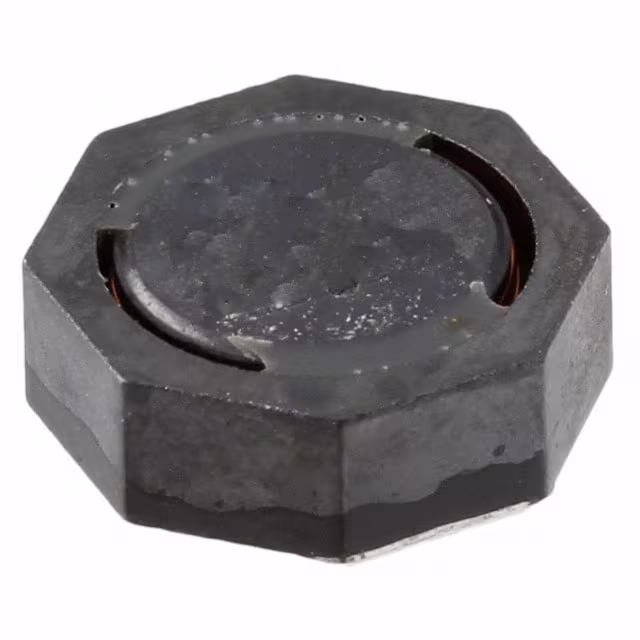

PM104SH-3R8-RCFIXED IND 3.8UH 5.5A 15 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM104SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 5.5 A | 5.5A | Shielded | 15mOhm Max | 14 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
9250-186FIXED IND 18MH 21MA 175 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 21 mA | 10mA | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
2200HT-120-HFIXED IND 12UH 10.9A 15 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 12 µH | ±15% | 10.9 A | - | Shielded | 15mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-390-HFIXED IND 39UH 8.1A 26 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 39 µH | ±15% | 8.1 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-181-HFIXED IND 180UH 4.6A 82 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 4.6 A | - | Shielded | 82mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
