Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250-565FIXED IND 5.6MH 28MA 98.9 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 28 mA | 17mA | Shielded | 98.9Ohm Max | 44 @ 250kHz | 730kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-685FIXED IND 6.8MH 27MA 111 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-565-RCFIXED IND 5.6MH 28MA 98.9 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 28 mA | 17mA | Shielded | 98.9Ohm Max | 44 @ 250kHz | 730kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-685-RCFIXED IND 6.8MH 27MA 111 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-126FIXED IND 12MH 23MA 143 OHM TH Bourns Inc. |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 23 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 330kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

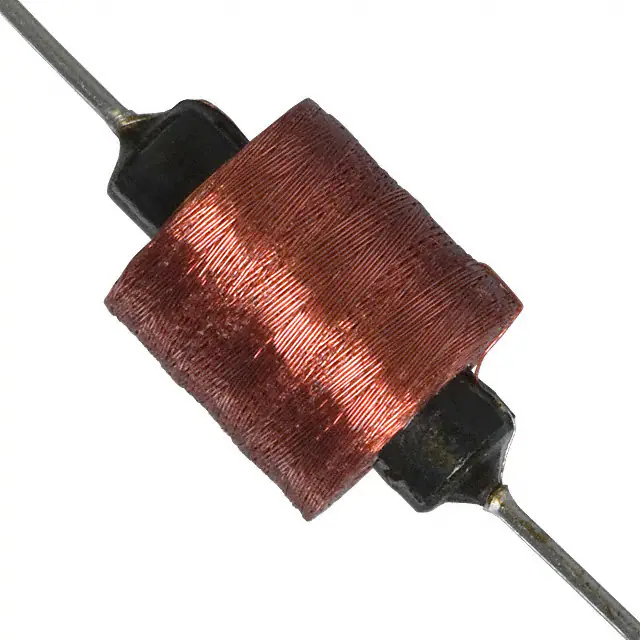

70F101AFFIXED IND 100MH 29MA 278 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 29 mA | - | Unshielded | 278Ohm Max | 48 @ 79kHz | 157kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - |
|
70F221AFFIXED IND 220MH 39MA 424 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 mH | ±5% | 39 mA | - | Unshielded | 424Ohm Max | 51 @ 25kHz | 70kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - |
|
70F331AFFIXED IND 330MH 34MA 540 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 mH | ±5% | 34 mA | - | Unshielded | 540Ohm Max | 54 @ 25kHz | 60kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - |
|
70F471AFFIXED IND 470MH 30MA 704 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 mH | ±5% | 30 mA | - | Unshielded | 704Ohm Max | 55 @ 25kHz | 54kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - |
|
|
70F391AFFIXED IND 390MH 33MA 617 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
