Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-50FIXED IND 18UH 195MA 3.1 OHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 195 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 32MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-54FIXED IND 27UH 185MA 3.5 OHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 185 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-52FIXED IND 22UH 190MA 3.3 OHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

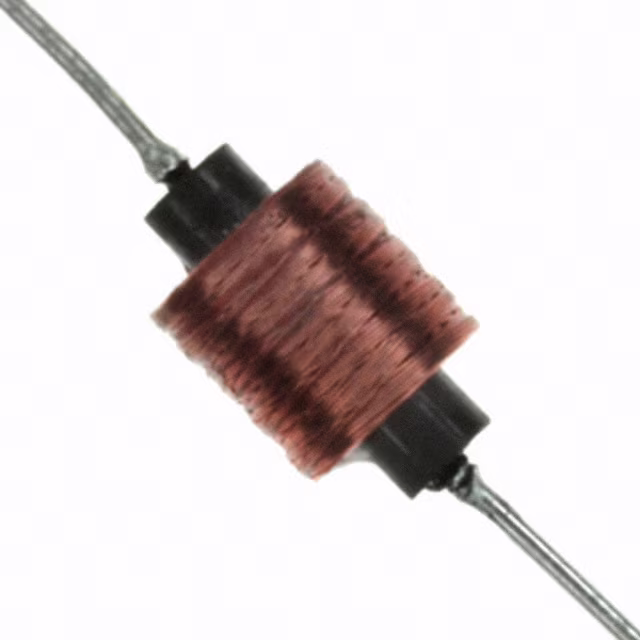

70F333AI-RCFIXED IND 3.3MH 53MA 51.6 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.3 mH | ±5% | 53 mA | - | Unshielded | 51.6Ohm Max | 52 @ 250kHz | 800kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
PM42S-151-RCFIXED IND 150UH 280MA 2.6OHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 280 mA | 260mA | Shielded | 2.6Ohm Max | 14 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-1R0-RCFIXED IND 1UH 2.7A 35 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.7 A | 2.6A | Shielded | 35mOhm Max | 9 @ 7.96MHz | 219MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-2R2-RCFIXED IND 2.2UH 2.1A 55 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.1 A | 2.1A | Shielded | 55mOhm Max | 8 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-8R2-RCFIXED IND 8.2UH 1.4A 135MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.4 A | 1.1A | Shielded | 135mOhm Max | 7 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
8250-151K-RCFIXED IND 150UH 294MA 2.79OHM TH Bourns Inc. |
0 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 294 mA | 90mA | Shielded | 2.79Ohm Max | 65 @ 790kHz | 10.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
8250-1R8K-RCFIXED IND 1.8UH 1.48A 107MOHM TH Bourns Inc. |
0 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 1.48 A | 1.48A | Shielded | 107mOhm Max | 42 @ 7.9MHz | 121MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
