Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

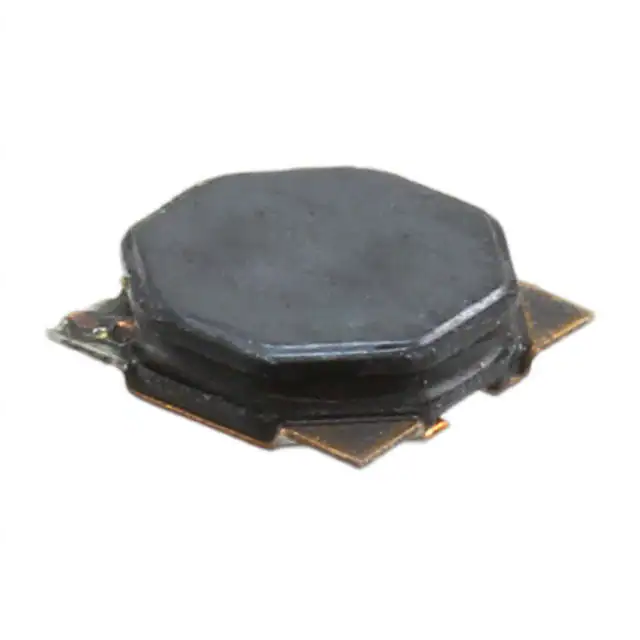

SRN4012-1R5MFIXED IND 1.5UH 2A 60 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2 A | 2.2A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRN4012-2R2MFIXED IND 2.2UH 1.9A 72 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.6A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRN4012-4R7MFIXED IND 4.7UH 1.5A 114MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.2A | Shielded | 114mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRN4012-6R8MFIXED IND 6.8UH 1.3A 150MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRN4012-100MFIXED IND 10UH 1.1A 204 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 800mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SRN4012-220MFIXED IND 22UH 620MA 480MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN4012 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 620 mA | 500mA | Shielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SDR0703-102KHLFIXED IND 1MH 80MA 14.2 OHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 80 mA | 130mA | Unshielded | 14.2Ohm Max | 30 @ 252kHz | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
SDR1005-1R0MFIXED IND 1UH 7.5A 7 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 9A | Unshielded | 7mOhm Max | 55 @ 2.6MHz | 137MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1005-1R5MFIXED IND 1.5UH 6.5A 9 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.5 A | 8A | Unshielded | 9mOhm Max | 50 @ 3MHz | 95MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1005-3R3MFIXED IND 3.3UH 5A 15 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5 A | 6.4A | Unshielded | 15mOhm Max | 45 @ 2.52MHz | 54MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
