制造商 | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SRP1238A-R60MFIXED IND 600NH 29A 2.2 MOHM SMD Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 600 nH | ±20% | 29 A | 51A | Shielded | 2.2mOhm Max | 15 @ 100kHz | 53MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
![]() |
SRP5030TA-R33MFIXED IND 330NH 14A 5 MOHM SMD Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 14 A | 18A | Shielded | 5mOhm Max | 5 @ 100kHz | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
![]() |
9230-84-RCFIXED IND 470UH 50MA 42 OHM TH Bourns Inc. |
0 | - |
|
![]() Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±10% | 50 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
![]() |
SDR2207-102KLFIXED IND 1MH 600MA 1.8 OHM SMD Bourns Inc. |
0 | - |
|
![]() Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 600 mA | 1A | Unshielded | 1.8Ohm Max | 15 @ 1MHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
![]() |
SRP5030CA-R16MFIXED IND 160NH 22.2A 2.33 MOHM Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 160 nH | ±20% | 22.2 A | 35A | Shielded | 2.33mOhm Max | - | 140MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
![]() |
SRP1265A-R36MFIXED IND 360NH 45A 0.9 MOHM SMD Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 360 nH | ±20% | 45 A | 66A | Shielded | 0.9mOhm Max | 10 @ 100kHz | 80MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
![]() |
SRP1245A-R68MFIXED IND 680NH 34A 1.7 MOHM SMD Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 34 A | 54A | Shielded | 1.7mOhm Max | 20 @ 100kHz | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRP7030CA-8R2MFIXED IND 8.2UH 5.9A 0.04873OHM Bourns Inc. |
0 | - |
|
![]() Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 8.2 µH | ±20% | 5.9 A | 10.2A | Shielded | 48.73mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
![]() |

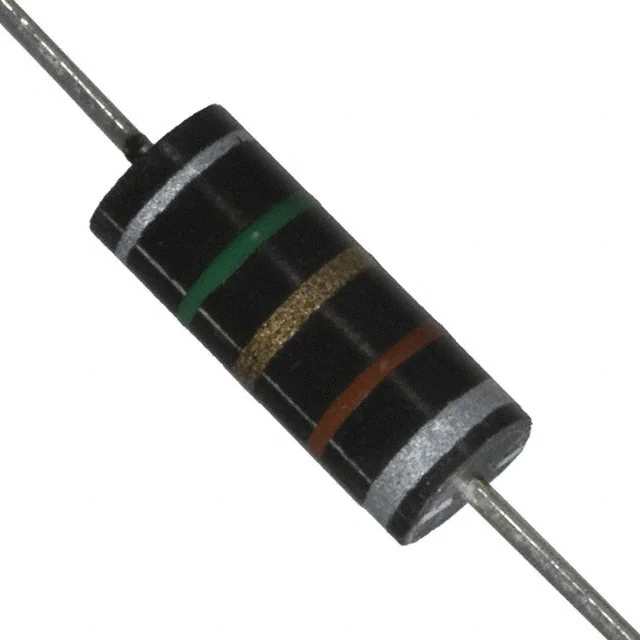

9250A-152-RCFIXED IND 1.5UH 815MA 120MOHM TH Bourns Inc. |
4 | - |
|
![]() Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.5 µH | ±10% | 815 mA | 815mA | Shielded | 120mOhm Max | 44 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
![]() |

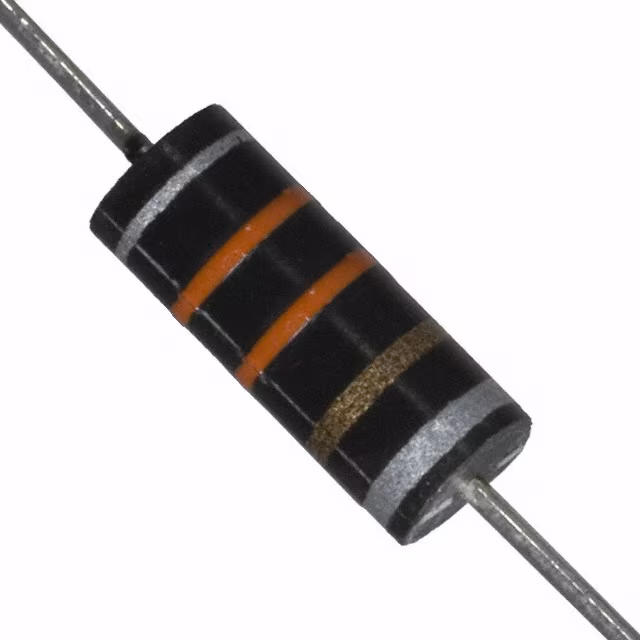

9250A-331-RCFIXED IND 330NH 780MA 130MOHM TH Bourns Inc. |
0 | - |
|
![]() Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 330 nH | ±10% | 780 mA | 780mA | Shielded | 130mOhm Max | 46 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
