Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,0.jpg)
|

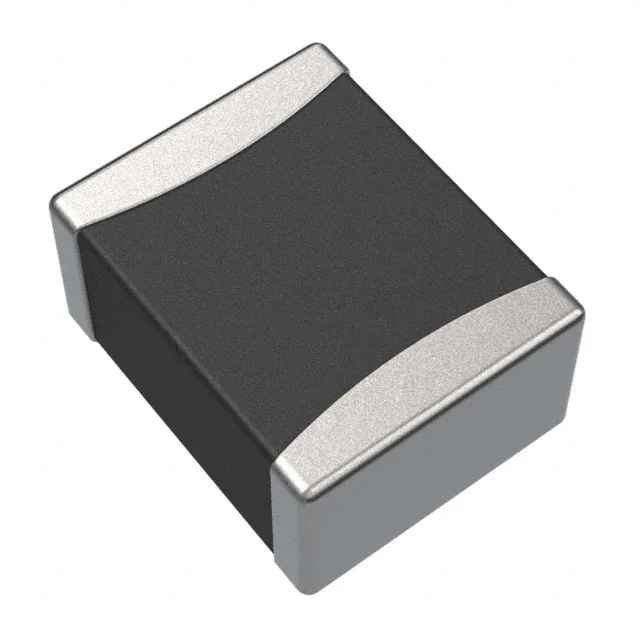

CVH201610A-1R0MFIXED IND 1UH 1.4A 106.25MOHM SM Bourns Inc. |
0 |
|
Datasheet |
CVH201610A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.4 A | - | Shielded | 106.25mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CW252016-R39JFIXED IND 390NH 400MA 1.12OHM SM Bourns Inc. |
0 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 400 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
CW160808-8N2JFIXED IND 8.2NH 700MA 110MOHM SM Bourns Inc. |
38 |
|
Datasheet |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 8.2 nH | ±5% | 700 mA | - | Unshielded | 110mOhm | 30 @ 250MHz | 5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
PM0603-27NJ-RCFIXED IND 27NH 600MA 220MOHM SMD Bourns Inc. |
33 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 27 nH | ±5% | 600 mA | - | Unshielded | 220mOhm | 35 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
PM0805-12NM-RCFIXED IND 12NH 600MA 80 MOHM SMD Bourns Inc. |
50 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 12 nH | ±20% | 600 mA | - | Unshielded | 80mOhm | 60 @ 500MHz | 4.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
PM0805-33NM-RCFIXED IND 33NH 500MA 150MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 33 nH | ±20% | 500 mA | - | Unshielded | 150mOhm | 60 @ 500MHz | 2.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
PM1008-68NK-RCFIXED IND 68NH 600MA 150MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±10% | 600 mA | - | Unshielded | 150mOhm | 60 @ 350MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
SRN2009T-R33MFIXED IND 330NH 2.1A 28MOHM SMD Bourns Inc. |
82 |
|
Datasheet |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 2.1 A | 2.1A | Shielded | 28mOhm | 30 @ 1MHz | 400MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
SRN2512-R33MFIXED IND 330NH 4.5A 32 MOHM SMD Bourns Inc. |
24 |
|
Datasheet |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 4.5 A | 5.7A | Shielded | 32mOhm Max | 7 @ 1MHz | 300MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRN2508A-2R2MFIXED IND 2.2UH 950MA 210MOHM SM Bourns Inc. |
17 |
|
Datasheet |
SRN2508A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 950 mA | 1.4A | Shielded | 210mOhm | 10 @ 1MHz | 140MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
