Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1140-100K-RCFIXED IND 10UH 21.8A 5 MOHM TH Bourns Inc. |
72 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 21.8 A | 65.3A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-4R7M-RCFIXED IND 4.7UH 28.1A 3 MOHM TH Bourns Inc. |
20 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 28.1 A | 80A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
CI160808-6N8JFIXED IND 6.8NH 300MA 300MOHM SM Bourns Inc. |
199 |
|
Datasheet |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 300mOhm Max | 10 @ 100MHz | 2.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SRN6028-3R9MFIXED IND 3.9UH 3A 38 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 3 A | 2.7A | Shielded | 38mOhm Max | 10 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
.JPG)
|
CW105550A-4N7JFIXED IND 4.7NH 640MA 130MOHM SM Bourns Inc. |
301 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 4.7 nH | ±5% | 640 mA | - | Unshielded | 130mOhm Max | 15 @ 250MHz | 4.775GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-13NJFIXED IND 13NH 560MA 210MOHM SMD Bourns Inc. |
273 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 13 nH | ±5% | 560 mA | - | Unshielded | 210mOhm Max | 24 @ 250MHz | 3.45GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
.JPG)
|
CW161009A-24NJFIXED IND 24NH 700MA 140MOHM SMD Bourns Inc. |
135 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 24 nH | ±5% | 700 mA | - | Unshielded | 140mOhm Max | 35 @ 250MHz | 2.65GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-R27JFIXED IND 270NH 200MA 2.1OHM SMD Bourns Inc. |
122 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 270 nH | ±5% | 200 mA | - | Unshielded | 2.1Ohm Max | 25 @ 100MHz | 822MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW105550A-12NJFIXED IND 12NH 640MA 120MOHM SMD Bourns Inc. |
110 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 12 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

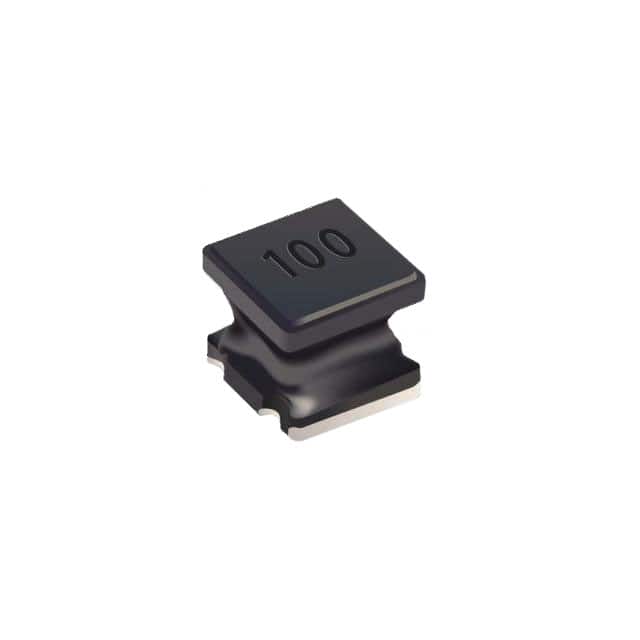

SRN3030HA-470MIND,3X3X3MM,47UH20%,0.35A,150C,S Bourns Inc. |
680 |
|
Datasheet |
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 750mA | Shielded | 2.05Ohm Max | 27 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
