Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6540-220MFIXED IND 22UH 2.5A 133 MOHM SMD |
9,956 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 2.5 A | 2.5A | Shielded | 133mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
B82462G4222M000FIXED IND 2.2UH 2.55A 25MOHM SMD |
5,674 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.55 A | 2.6A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4333M000FIXED IND 33UH 850MA 230MOHM SMD |
3,776 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 850 mA | 720mA | Shielded | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4332M000FIXED IND 3.3UH 2.3A 31 MOHM SMD |
2,738 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 2.1A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|

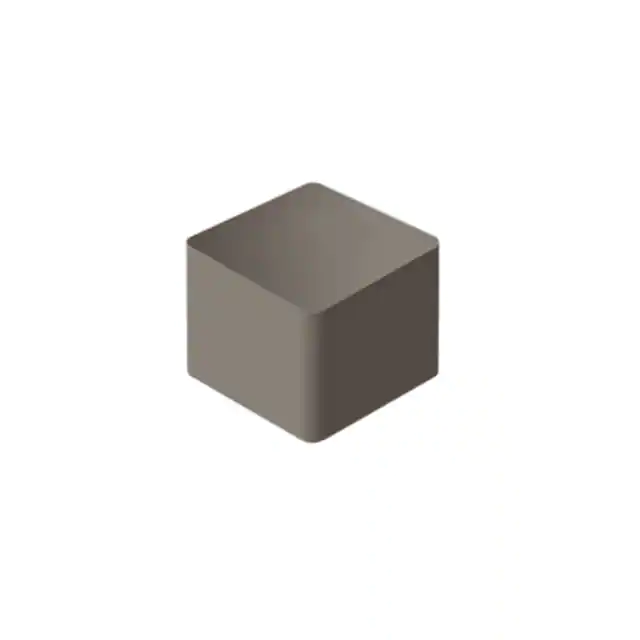

SRP5050FA-6R8MFIXED IND 6.8UH 6.4A 28.6MOHM SM |
487 |
|
Datasheet |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6.4 A | 7.8A | Shielded | 28.6mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
UP2B-220-RFIXED IND 22UH 2.8A 61.7MOHM SMD |
10,177 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 2A | Unshielded | 61.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
MPL-AL5030-4R7FIXED IND 4.7UH 5.3A 33 MOHM SMD |
1,115 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | - | 5.3 A | 8A | Unshielded | 33mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
FP1007R3-R15-RFIXED IND 150NH 61A 0.29MOHM SMD |
177,471 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 61 A | 76A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
MPI4020V2-220-RFIXED IND 22UH 1.2A 402 MOHM SMD |
7,746 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 1.2 A | 1.65A | Shielded | 402mOhm Max | - | 9.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
B82464G4153M000FIXED IND 15UH 2.75A 40 MOHM SMD |
22,230 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.75 A | 3.1A | Shielded | 40mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

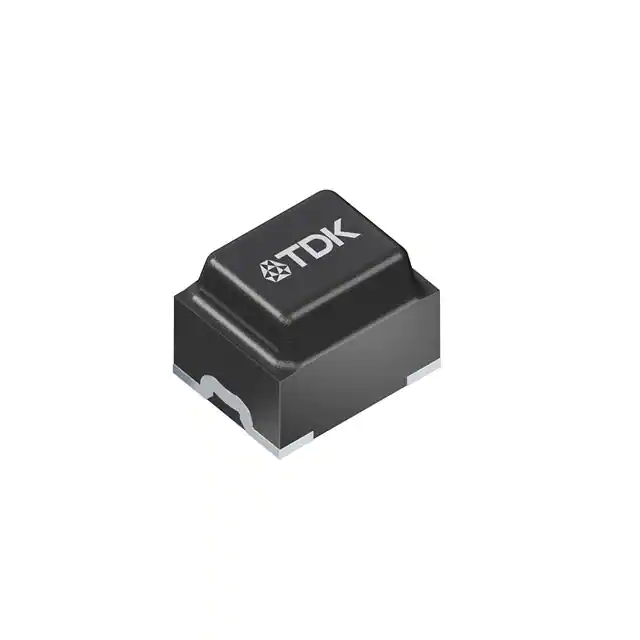

CLT32-R11CLT32-R11 110NH |
14,410 |
|
Datasheet |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | 110 nH | ±20% | 20 A | 29A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 4-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
B82464G4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD |
2,368 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD |
1,689 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.3 A | 4.6A | Shielded | 20mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CLT32-42NCLT32-42N 42NH |
990 |
|
Datasheet |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | 42 nH | ±20% | 28 A | 54A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 4-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
CLT32-55NCLT32-55N 55NH |
593 |
|
Datasheet |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | 55 nH | ±20% | 28 A | 39.5A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 4-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
B82464G4223M000FIXED IND 22UH 2.25A 52 MOHM SMD |
157 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
MPL-AL5050-100FIXED IND 10UH 4.8A 37 MOHM SMD |
3,781 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 4.8 A | 5.5A | Unshielded | 37mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|

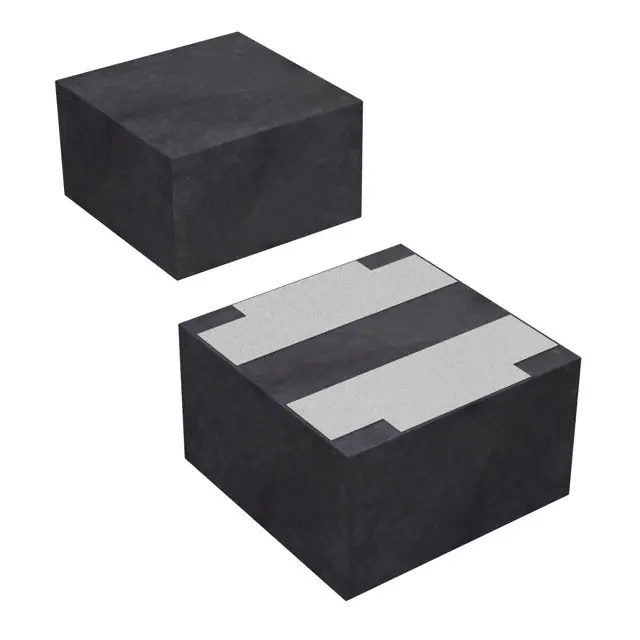

74438356022FIXED IND 2.2UH 4.7A 35 MOHM SMD |
21,384 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 4.7 A | 6.2A | Shielded | 35mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356010FIXED IND 1UH 7.2A 15 MOHM SMD |
1,669 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 7.2 A | 9A | Shielded | 15mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356047FIXED IND 4.7UH 2.9A 76 MOHM SMD |
1,120 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.9 A | 4.7A | Shielded | 76mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
