Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

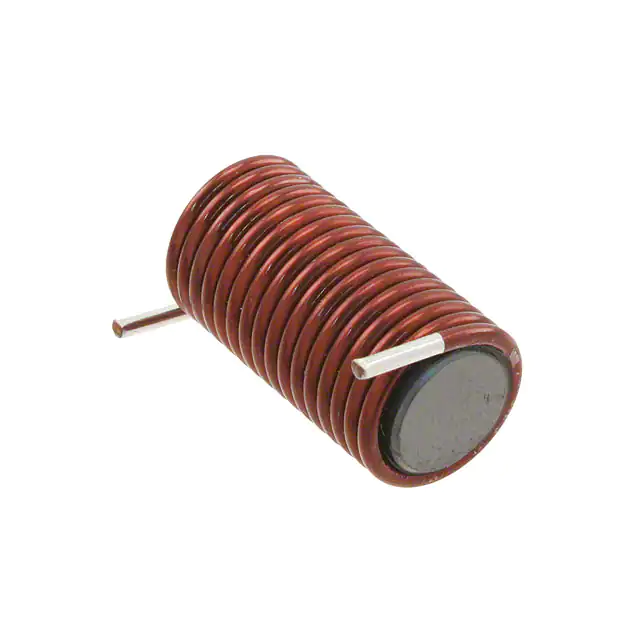

744711015FIXED IND 10UH 15A 5.7 MOHM TH Würth Elektronik |
521 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 15 A | - | Unshielded | 5.7mOhm | - | 37MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) | - |
|

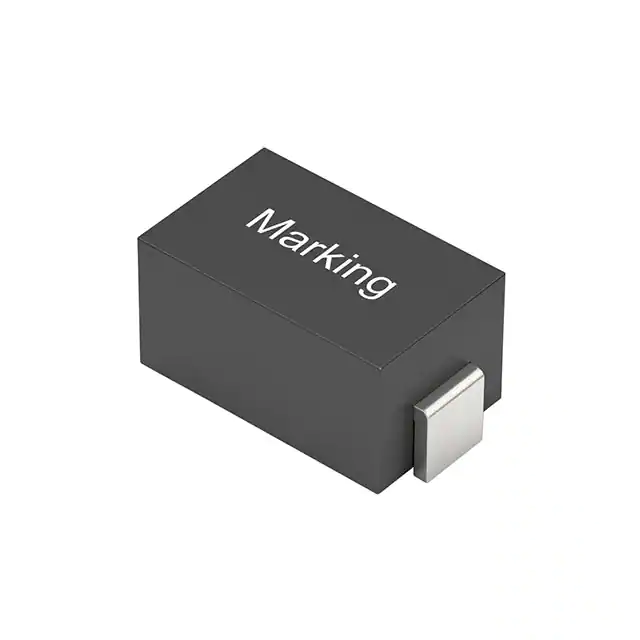

74435030010FIXED IND 100NH 27A 0.00031OHM Würth Elektronik |
4,059 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±15% | 27 A | 19.1A | Shielded | 0.31mOhm | - | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.197" L x 0.122" W (5.00mm x 3.10mm) | 0.118" (3.00mm) |
|
7447786122FIXED IND 22UH 2A 115 MOHM SMD Würth Elektronik |
3,786 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±25% | 2 A | 1.3A | Shielded | 115mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
7447471330FIXED IND 33UH 3.6A 61 MOHM TH Würth Elektronik |
2,991 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.6 A | 2.8A | Shielded | 61mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7443321000FIXED IND 10UH 9A 16.7 MOHM SMD Würth Elektronik |
1,732 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | 10A | Shielded | 16.7mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320100FIXED IND 1UH 24A 2.5 MOHM SMD Würth Elektronik |
1,339 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 24 A | 32A | Shielded | 2.5mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320330FIXED IND 3.3UH 17A 5.7 MOHM SMD Würth Elektronik |
1,300 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 17 A | 17A | Shielded | 5.7mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320470FIXED IND 4.7UH 15.5A 7.9MOHM SM Würth Elektronik |
1,040 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 15.5 A | 17A | Shielded | 7.9mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320680FIXED IND 6.8UH 13A 11 MOHM SMD Würth Elektronik |
822 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 13 A | 13A | Shielded | 11mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7447786147FIXED IND 47UH 1.4A 298 MOHM SMD Würth Elektronik |
777 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±25% | 1.4 A | 800mA | Shielded | 298mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
