Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78404064022WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,166 |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 5.3 A | 8.1A | Shielded | 17mOhm Max | - | 60MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064047WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
862 |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.7 A | 5.5A | Shielded | 34mOhm Max | - | 36MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|

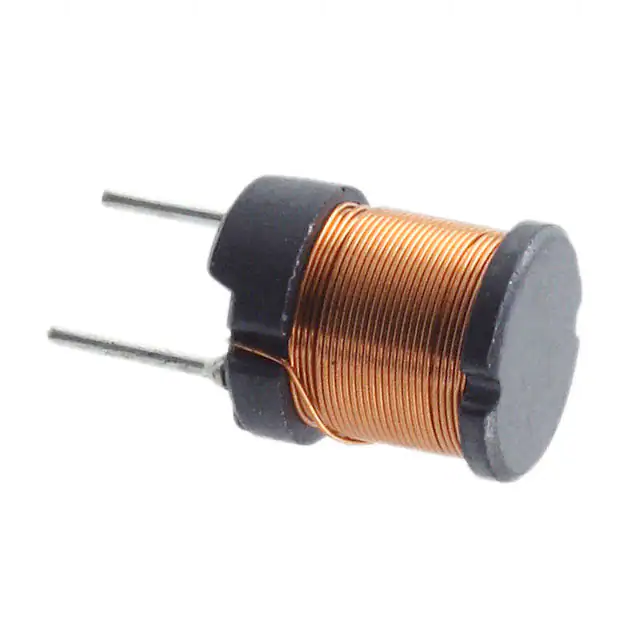

768772152FIXED IND 1.5MH 380MA 3 OHM TH Würth Elektronik |
421 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 380 mA | 400mA | Unshielded | 3Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

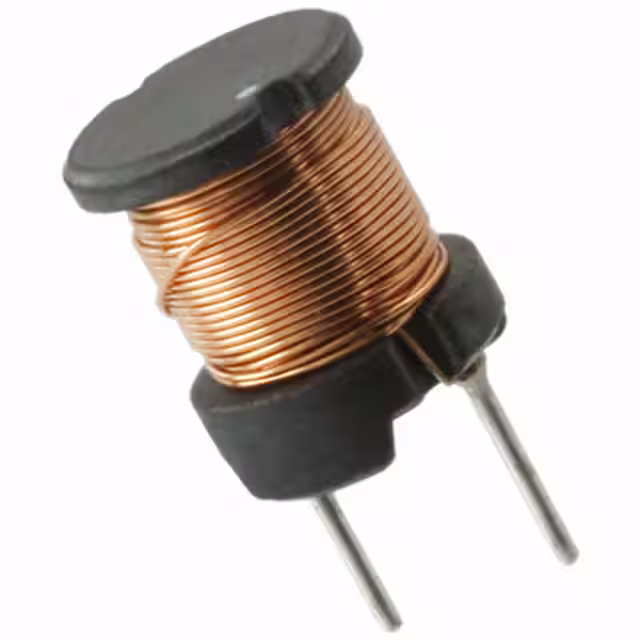

768772681FIXED IND 680UH 520MA 1.68OHM TH Würth Elektronik |
216 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 520 mA | 760mA | Unshielded | 1.68Ohm Max | - | 2.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
768772122FIXED IND 1.2MH 400MA 2.64OHM TH Würth Elektronik |
180 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 400 mA | 450mA | Unshielded | 2.64Ohm Max | - | 1.65MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
1.2mm.jpg)
|
744383240047FIXED IND 470NH 3.4A 40 MOHM SMD Würth Elektronik |
11,228 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 3.4 A | 6.25A | Shielded | 40mOhm Max | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg)
|
74438343015FIXED IND 1.5UH 1.3A 180MOHM SMD Würth Elektronik |
7,741 |
|
Datasheet |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±30% | 1.3 A | 3A | Shielded | 180mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438324068FIXED IND 6.8UH 900MA 640MOHM SM Würth Elektronik |
7,020 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 900 mA | 1.6A | Shielded | 640mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74438324015FIXED IND 1.5UH 2.2A 99 MOHM SMD Würth Elektronik |
5,654 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 2.2 A | 3.7A | Shielded | 99mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
744383430068FIXED IND 680NH 2A 84 MOHM SMD Würth Elektronik |
2,698 |
|
Datasheet |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±30% | 2 A | 4.7A | Shielded | 84mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
