Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404024033FIXED IND 3.3UH 1.4A 120MOHM SMD Würth Elektronik |
890 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.35 A | 1.5A | Shielded | 120mOhm | - | 66MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74404031330AFIXED IND 33UH 600MA 802MOHM SMD Würth Elektronik |
574 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 0.5 A | 540mA | Shielded | 802mOhm | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404054332FIXED IND 3.3MH 100MA 21.6OHM SM Würth Elektronik |
322 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 100 mA | 150mA | Shielded | 21.6Ohm | - | 1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|

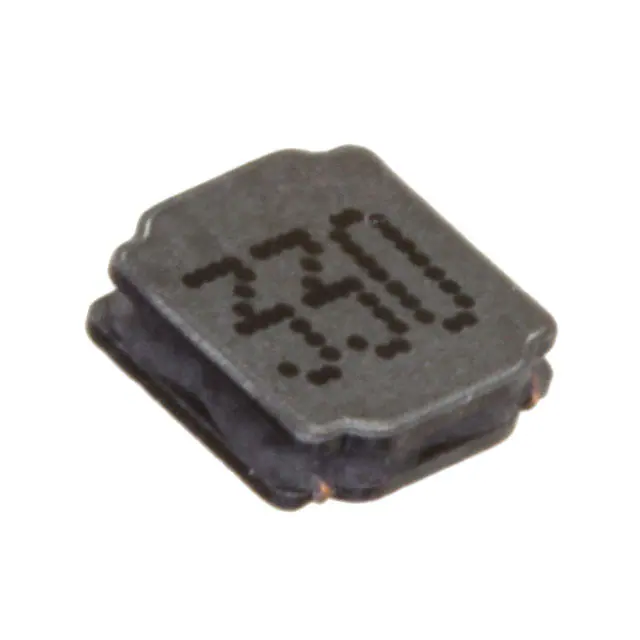

74404041330FIXED IND 33UH 650MA 628MOHM SMD Würth Elektronik |
24,229 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 650 mA | 600mA | Shielded | 628mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|

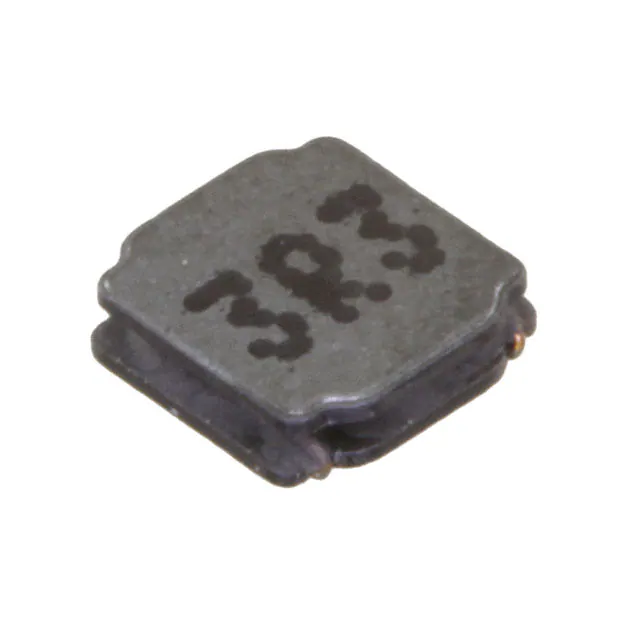

74404041033FIXED IND 3.3UH 1.75A 69MOHM SMD Würth Elektronik |
10,304 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.75 A | 1.8A | Shielded | 69mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
74479288222FIXED IND 2.2UH 1.7A 102MOHM SMD Würth Elektronik |
8,987 |
|
Datasheet |
WE-PMCI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±30% | 1.7 A | 2.8A | Shielded | 102mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
74404063330FIXED IND 33UH 1.22A 185MOHM SMD Würth Elektronik |
8,813 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.22 A | 1.5A | Shielded | 185mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
1mm.jpg)
|
74438323012FIXED IND 1.2UH 1.9A 106MOHM SMD Würth Elektronik |
8,389 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 1.9 A | 3.8A | Shielded | 106mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74404063033FIXED IND 3.3UH 3.48A 25MOHM SMD Würth Elektronik |
7,249 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.48 A | 4.5A | Shielded | 25mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
1.2mm.jpg)
|
74438334015FIXED IND 1.5UH 2A 96 MOHM SMD Würth Elektronik |
5,488 |
|
Datasheet |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 2 A | 5.7A | Shielded | 96mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
