制造商 | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
IHLP4040EDER4R7M5AFIXED IND 4.7UH 11.5A 11.77 MOHM Vishay Dale |
663 | - |
|
![]() Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 11.5 A | 11.9A | Shielded | 11.77mOhm Max | - | 16.45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
![]() |
IHLP5050CEER1R8M01FIXED IND 1.8UH 16.5A 7 MOHM SMD Vishay Dale |
499 | - |
|
![]() Datasheet |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 16.5 A | 30A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
![]() |

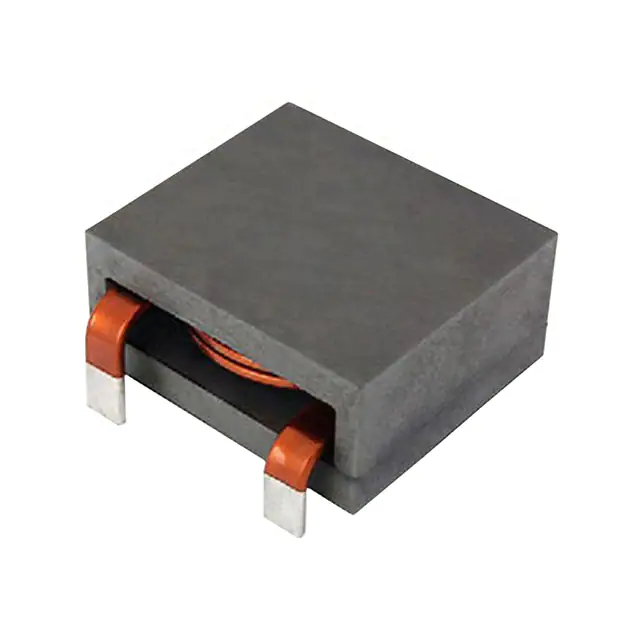

IHDF1300AEEH5R0K1AFIXED IND 5UH 59A 1.11 MOHM TH Vishay Dale |
422 | - |
|
![]() Datasheet |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 59 A | 78A | Unshielded | 1.11mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
![]() |
IHLP5050CEERR33M01FIXED IND 330NH 36.5A 1.5MOHM SM Vishay Dale |
349 | - |
|
![]() Datasheet |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 36.5 A | 62A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
![]() |
IHLP5050CEER8R2M01FIXED IND 8.2UH 8.5A 28 MOHM SMD Vishay Dale |
283 | - |
|
![]() Datasheet |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.5 A | 16A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
IHLP4040DZER470M8AFIXED IND 47UH 2.5A 178 MOHM SMD Vishay Dale |
1,257 | - |
|
![]() Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.1 A | 4.1A | Shielded | 178mOhm Max | - | 5.22MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
![]() |
IHLM2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD Vishay Dale |
1,933 | - |
|
![]() Datasheet |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
![]() |

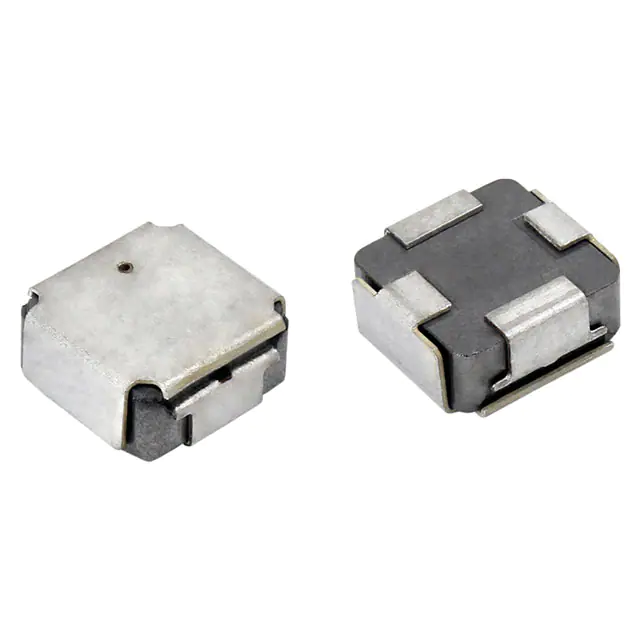

IHLE2525CDER220M5AIHLE-2525CD-5A 22 20% ER E3 Vishay Dale |
1,215 | - |
|
![]() Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
![]() |

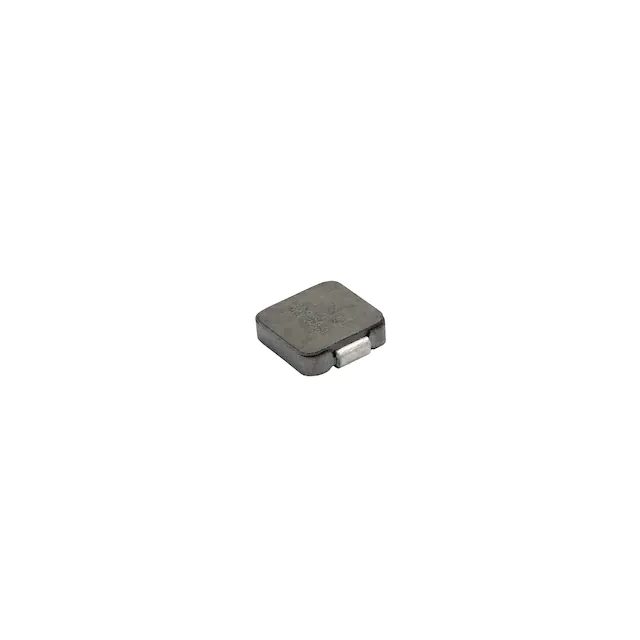

IHSR1616ABER33NM01FIXED IND 33NH 37A 1.15 MOHM SMD Vishay Dale |
3,070 | - |
|
![]() Datasheet |
IHSR-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 nH | ±20% | 37 A | 41A | Shielded | 1.15mOhm | - | 856MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.180" L x 0.160" W (4.57mm x 4.06mm) | 0.047" (1.20mm) |
![]() |
IHLP4040EDER2R2M5AFIXED IND 2.2UH 18.4A 4.91 MOHM Vishay Dale |
463 | - |
|
![]() Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 18.4 A | 17.58A | Shielded | 4.91mOhm Max | - | 25.01MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
