0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHDF1300AEEH2R2K1AFIXED IND 2.2UH 59A 1.11MOHM TH Vishay Dale |
29 |
|
Datasheet |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 59 A | 149A | Unshielded | 1.11mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
IHTH1125MZEB330M5AFIXED IND 33UH 16.8A 11 MOHM TH Vishay Dale |
93 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 33 µH | ±20% | 16.8 A | 22A | Shielded | 11mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHTH1125MZEB220M5AFIXED IND 22UH 21A 6.83 MOHM TH Vishay Dale |
51 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 22 µH | ±20% | 21 A | 23A | Shielded | 6.83mOhm Max | - | 5.61MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|

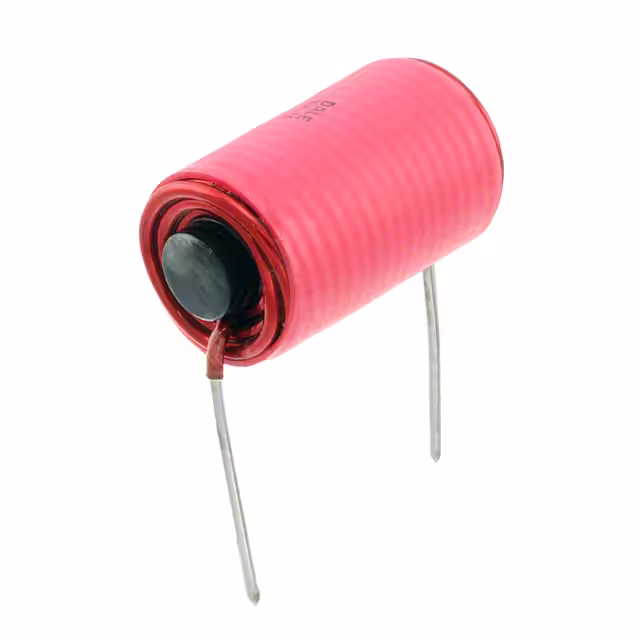

IH10BQ101KFIXED IND 100UH 10A 30 MOHM TH Vishay Dale |
58 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|
IHTH1500MZEB2R2M5AIHTH-1500MZ-5A 2.2 20% EB E2 Vishay Dale |
48 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 81.7 A | 111.4A | Shielded | 0.54mOhm Max | - | 14.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
|
IHTH1500MZEBR47M5AIHTH-1500MZ-5A .47 20% EB E2 Vishay Dale |
23 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 134.8 A | 156.2A | Shielded | 0.2mOhm Max | - | 54.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
IHXL1500VZEBR68M5AFIXED IND 680NH 235A 0.13MOHM TH Vishay Dale |
56 |
|
Datasheet |
IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
ILSB0603ER2R2KFIXED IND 2.2UH 15MA 1.15OHM SMD Vishay Dale |
222 |
|
Datasheet |
ILSB-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 15 mA | - | Shielded | 1.15Ohm Max | 35 @ 10MHz | 58MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
-Unshielded-Inductor.jpg)
|
IMC0805ER27NJ01FIXED IND 27NH 600MA 120MOHM SMD Vishay Dale |
894 |
|
Datasheet |
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 60 @ 500MHz | 2.6GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
IMC1008ERR22JFIXED IND 220NH 800MA 450MOHM SM Vishay Dale |
350 |
|
Datasheet |
IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 800 mA | - | Unshielded | 450mOhm Max | 45 @ 100MHz | 730MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
