Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

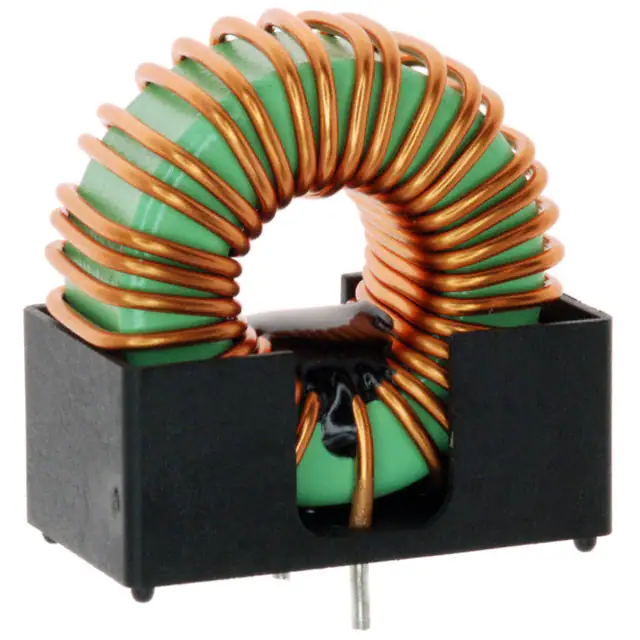

FIT106-6FIXED IND 70.05UH 9.7A 24MOHM TH Triad Magnetics |
1,268 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 70.05 µH | - | 9.7 A | - | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|

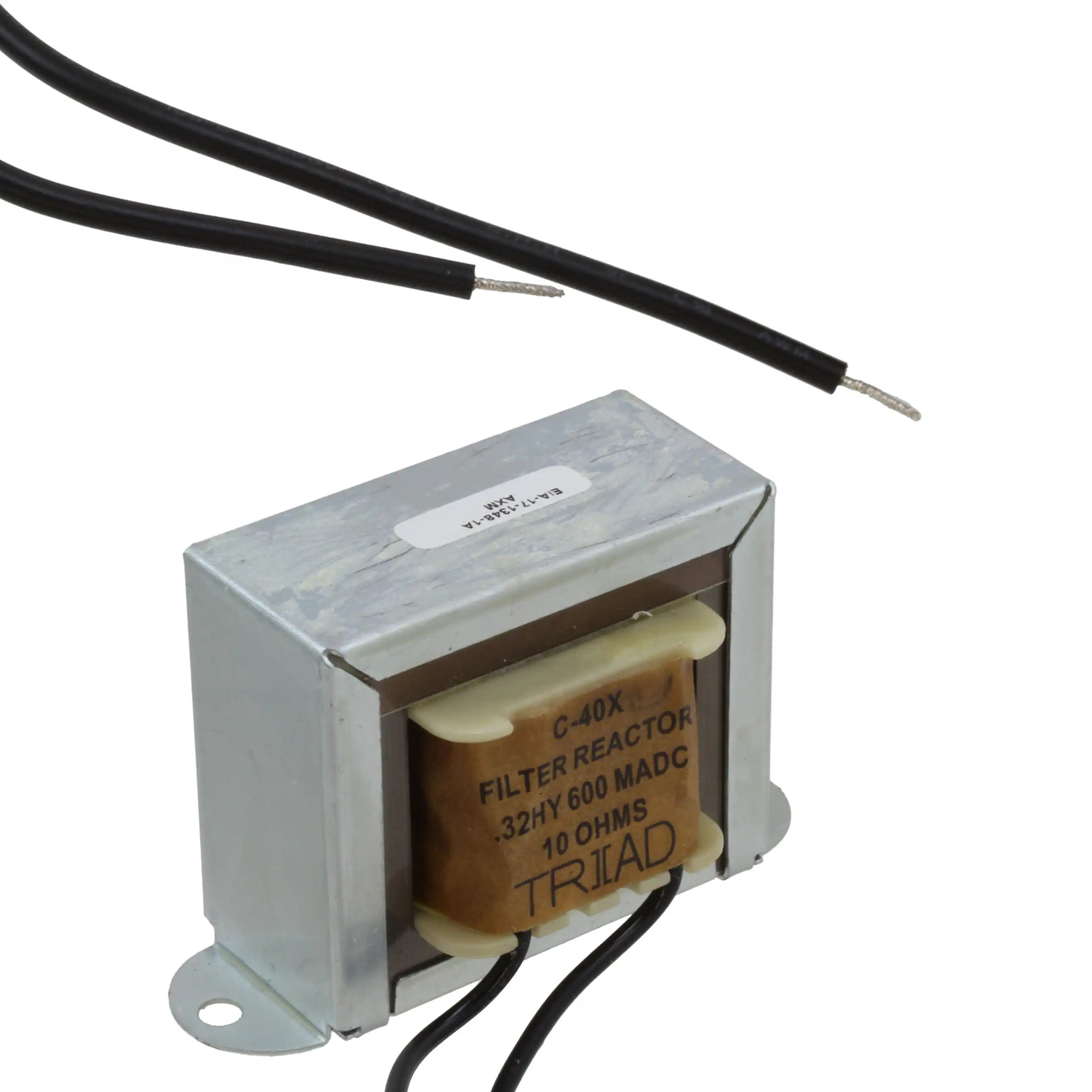

C-40XFIXED IND 320MH 600MA 10 OHM Triad Magnetics |
143 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 320 mH | -20%, +50% | 600 mA | - | Unshielded | 10Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | 1.940" (49.28mm) |
|
FIT50-1FIXED IND 47.4UH 2.8A 78.9 MOHM Triad Magnetics |
902 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47.4 µH | - | 2.8 A | - | Unshielded | 78.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
FIT80-1FIXED IND 128UH 4A 95.2 MOHM TH Triad Magnetics |
126 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 128 µH | - | 4 A | - | Unshielded | 95.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
C-36XFIXED IND 500MH 300MA 30OHM CHAS Triad Magnetics |
794 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 500 mH | -20%, +50% | 300 mA | - | Unshielded | 30Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.375" L x 1.500" W (60.32mm x 38.10mm) | 1.375" (34.93mm) |
|

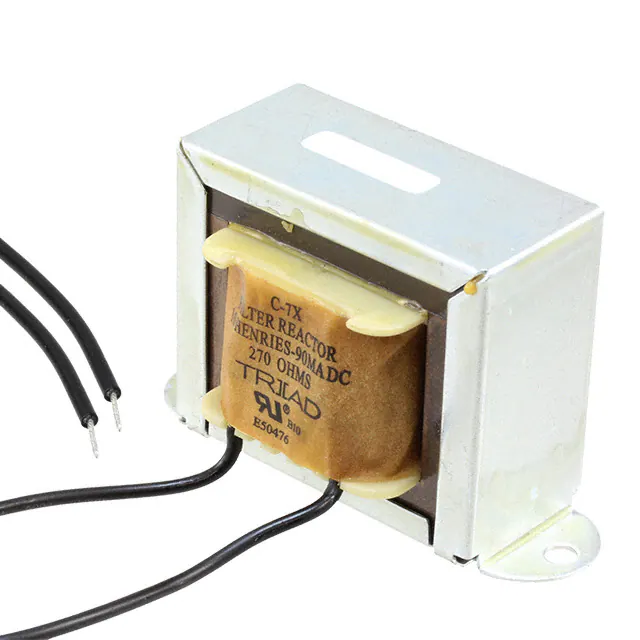

C-7XFIXED IND 10H 90MA 270 OHM CHASS Triad Magnetics |
691 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 10 H | -20%, +50% | 90 mA | - | Unshielded | 270Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | 1.940" (49.28mm) |
|

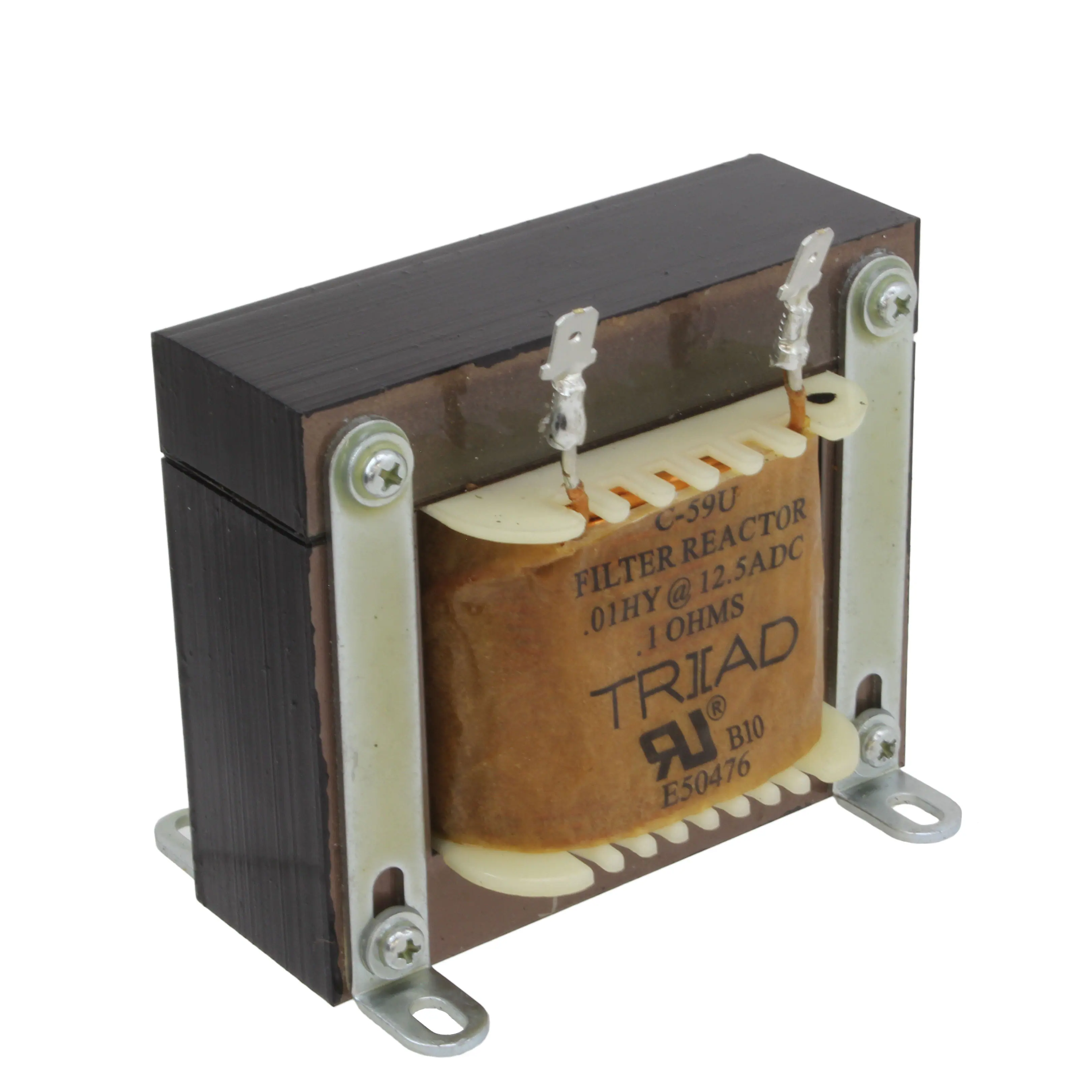

C-59UFIXED IND 10MH 12.5A 100 MOHM Triad Magnetics |
290 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 10 mH | -20%, +50% | 12.5 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.125" L x 3.000" W (104.77mm x 76.20mm) | 3.500" (88.90mm) |
|
|
FIT50-3FIXED IND 27.16UH 4A 40.1MOHM TH Triad Magnetics |
2,618 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 27.16 µH | - | 4 A | - | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
FIT44-3FIXED IND 12.3UH 4A 23.4 MOHM TH Triad Magnetics |
190 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12.3 µH | - | 4 A | - | Unshielded | 23.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
|
FIT44-2FIXED IND 14.75UH 3.4A 30.7 MOHM Triad Magnetics |
180 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 14.75 µH | - | 3.4 A | - | Unshielded | 30.7mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
