Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

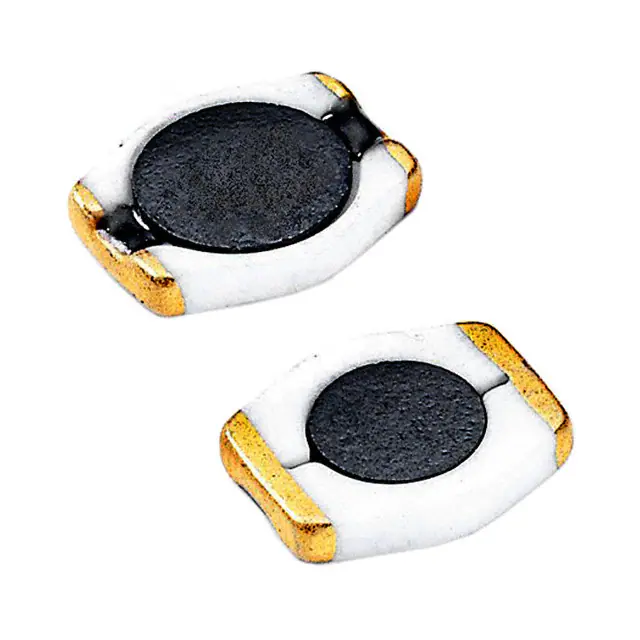

SC2506-150FIXED IND 15UH 900MA 300MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 900 mA | 900mA | Unshielded | 300mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-220FIXED IND 22UH 780MA 420MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 780 mA | 700mA | Unshielded | 420mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-221FIXED IND 220UH 240MA 4.6OHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 µH | ±20% | 240 mA | 220mA | Unshielded | 4.6Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-330FIXED IND 33UH 680MA 650MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 680 mA | 600mA | Unshielded | 650mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-331FIXED IND 330UH 190MA 7.3OHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | ±20% | 190 mA | 180mA | Unshielded | 7.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-470FIXED IND 47UH 560MA 880MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 560 mA | 500mA | Unshielded | 880mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-471FIXED IND 470UH 160MA 12 OHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | ±20% | 160 mA | 140mA | Unshielded | 12Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-4R7FIXED IND 4.7UH 1.6A 145MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 1.6 A | 1.6A | Unshielded | 145mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-680FIXED IND 68UH 480MA 1.3 OHM SMD Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 480 mA | 400mA | Unshielded | 1.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-681FIXED IND 680UH 140MA 15.3OHM SM Signal Transformer |
0 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | ±20% | 140 mA | 120mA | Unshielded | 15.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
