Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH2HPN100MGRLFIXED IND 10UH 710MA 672MOHM SMD |
2,955 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 710 mA | 700mA | Shielded | 672mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
RLB0608-221KLFIXED IND 220UH 200MA 2.5 OHM TH |
2,643 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 45 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
-Height-1.00mm.jpg)
|
1276AS-H-6R8M=P2FIXED IND 6.8UH 1A 378 MOHM SMD |
2,548 |
|
Datasheet |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 1 A | 1.3A | Shielded | 378mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
LQM18PH1R0MFRLFIXED IND 1UH 950MA 250 MOHM SMD |
2,291 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | 360mA | Shielded | 250mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
RLB0812-473KLFIXED IND 47MH 16MA 162 OHM TH |
2,168 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 16 mA | - | Unshielded | 162Ohm Max | 60 @ 79.6kHz | 100kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0812-333KLFIXED IND 33MH 20MA 140 OHM TH |
1,970 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 20 mA | - | Unshielded | 140Ohm Max | 60 @ 79.6kHz | 160kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
7447669220FIXED IND 220UH 200MA 7.2OHM SMD |
1,933 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 µH | ±10% | 200 mA | - | Unshielded | 9Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LQH32PH150MNCLFIXED IND 15UH 700MA 570MOHM SMD |
1,896 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 700 mA | 800mA | Shielded | 570mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQM18PH2R2MFRLFIXED IND 2.2UH 750MA 375MOHM SM |
1,654 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 750 mA | 150mA | Shielded | 375mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-Height-1.20mm.jpg)
|
1277AS-H-100M=P2FIXED IND 10UH 900MA 420MOHM SMD |
20,906 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 900 mA | 1.2A | Shielded | 420mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
1277AS-H-2R2M=P2FIXED IND 2.2UH 2.1A 84 MOHM SMD |
14,456 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.1 A | 2.6A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
PA4335.102NLTFIXED IND 1UH 3A 54 MOHM SMD |
14,213 |
|
Datasheet |
PA4335.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 3 A | 3.6A | Shielded | 54mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.047" (1.20mm) |
|
IFSC1515AHER330M01FIXED IND 33UH 900MA 486MOHM SMD |
10,384 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 900 mA | 680mA | Shielded | 486mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
1277AS-H-6R8M=P2FIXED IND 6.8UH 1.2A 276MOHM SMD |
8,166 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 1.2 A | 1.5A | Shielded | 276mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
VLS5045EX-151MFIXED IND 150UH 610MA 949MOHM SM |
6,861 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 560mA | Shielded | 949mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLS5045EX-3R3N-HFIXED IND 3.3UH 4.2A 35.1MOHM SM |
6,264 |
|
Datasheet |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.2 A | 5.2A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
PE-0603CD270GTTFIXED IND 27NH 600MA 220MOHM SMD |
5,932 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 600 mA | - | Unshielded | 220mOhm | 35 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|

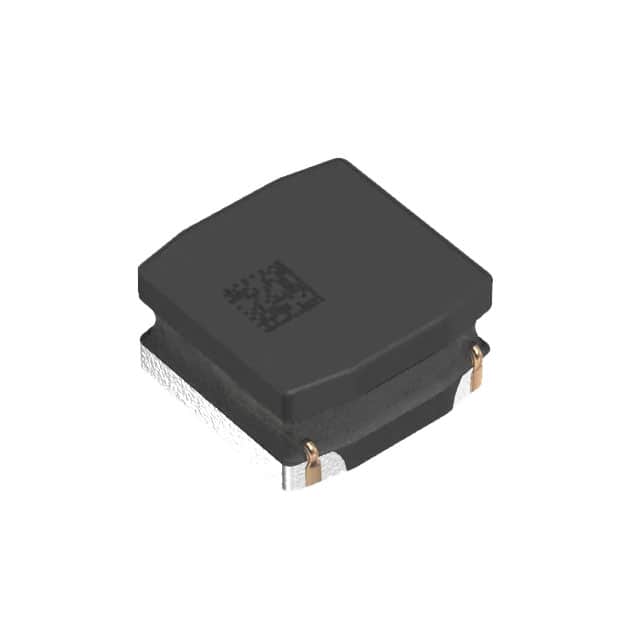

VLS4020CX-680M-HINDUCTORS FOR POWER CIRCUITS, AU |
4,847 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 590 mA | 650mA | Shielded | 1.36Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
1277AS-H-3R3M=P2FIXED IND 3.3UH 1.8A 126MOHM SMD |
3,203 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 1.8 A | 2.1A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLS5045EX-151M-HFIXED IND 150UH 610MA 949MOHM SM |
2,922 |
|
Datasheet |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 560mA | Shielded | 949mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
