Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2BAS3N0J00LFIXED IND 3NH 800MA 60 MOHM SMD Murata Electronics |
1,885 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 3 nH | ±5% | 800 mA | - | Unshielded | 60mOhm Max | 65 @ 1.5GHz | 12.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

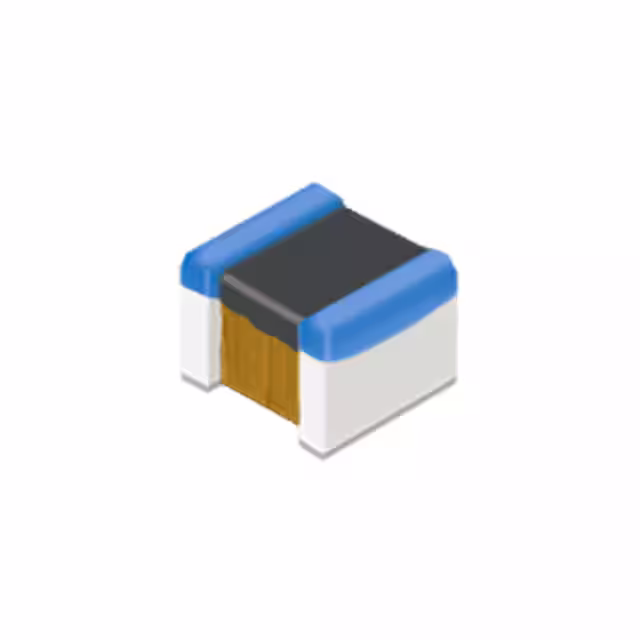

LQW2UASR68G0CLFIXED IND 680NH 400MA 1.47OHM SM Murata Electronics |
1,680 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 680 nH | ±2% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2BAS24NJ00LFIXED IND 24NH 500MA 220MOHM SMD Murata Electronics |
1,134 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 24 nH | ±5% | 500 mA | - | Unshielded | 220mOhm Max | 50 @ 500MHz | 2.4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQW15AN6N5G8ZDFIXED IND 6.5NH 1.38A 0.065OHM Murata Electronics |
39,272 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.5 nH | ±2% | 1.38 A | - | Unshielded | 65mOhm Max | 32 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN16NG8ZDFIXED IND 16NH 1A 0.126OHM SMD Murata Electronics |
29,157 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 16 nH | ±2% | 1 A | - | Unshielded | 126mOhm Max | 31 @ 250MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N6B8ZDFIXED IND 5.6NH 1.77A 0.04OHM SM Murata Electronics |
28,711 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.1nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN7N7G8ZDFIXED IND 7.7NH 1.7A 0.05OHM SMD Murata Electronics |
28,683 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.7 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 30 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N0G8ZDFIXED IND 6NH 1.6A 0.056OHM SMD Murata Electronics |
28,148 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6 nH | ±2% | 1.6 A | - | Unshielded | 56mOhm Max | 32 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN2N3B8ZDFIXED IND 2.3NH 2.53A 0.022OHM Murata Electronics |
25,385 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.3 nH | ±0.1nH | 2.53 A | - | Unshielded | 22mOhm Max | 30 @ 250MHz | 15.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN14NG8ZDFIXED IND 14NH 1.15A 0.111OHM SM Murata Electronics |
20,825 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 14 nH | ±2% | 1.15 A | - | Unshielded | 111mOhm Max | 31 @ 250MHz | 5.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
