Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH6045C-100MA=P3FIXED IND 10UH 1.9A 40 MOHM SMD Murata Electronics |
2,600 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 2A | Shielded | 40mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
1274AS-H-4R7N=P3FIXED IND 4.7UH 6.7A 13.5MOHM SM Murata Electronics |
1,651 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 6.7 A | 9.5A | Shielded | 13.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
1274AS-H-330M=P3FIXED IND 33UH 2.5A 93.6MOHM SMD Murata Electronics |
457 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 3.5A | Shielded | 93.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
DD1274AS-H-220M=P3FIXED IND 22UH 2.9A 68.1MOHM SMD Murata Electronics |
1,321 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.9 A | 5.6A | Shielded | 68.1mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
DD1274AS-H-3R3N=P3FIXED IND 3.3UH 7.4A 11.4MOHM SM Murata Electronics |
1,233 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 7.4 A | 14.4A | Shielded | 11.4mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
LQW21FT2R0M0HLFIXED IND 2UH 450MA POWRTRN Murata Electronics |
2,367 |
|
Datasheet |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±20% | 400 mA | 450mA | Shielded | 290mOhm Max | - | 230MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.071" (1.80mm) |
|
|
LQW21FT1R0M0HLFIXED IND 1UH 700MA POWRTRN Murata Electronics |
489 |
|
Datasheet |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 600 mA | 700mA | Shielded | 130mOhm Max | - | 320MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.071" (1.80mm) |
|

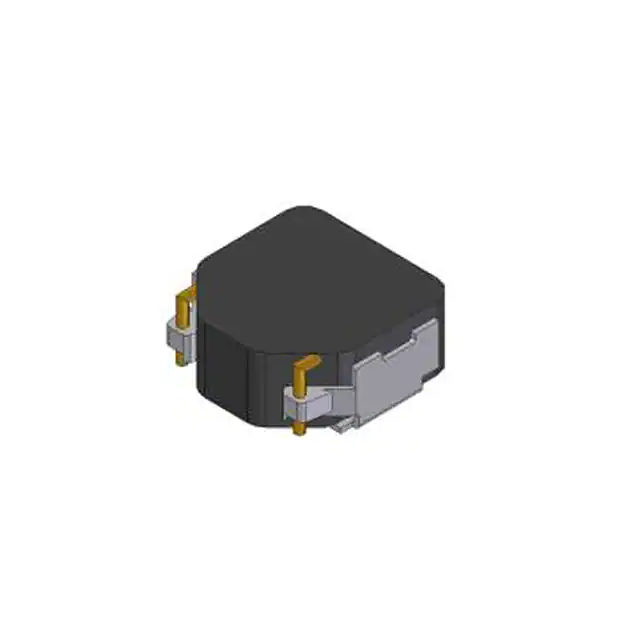

DFEG7030D-3R3M=P3FIXED IND 3.3UH 5.4A 29MOHM SMD Murata Electronics |
5,810 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 3.3 µH | ±20% | 5.4 A | 7.1A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

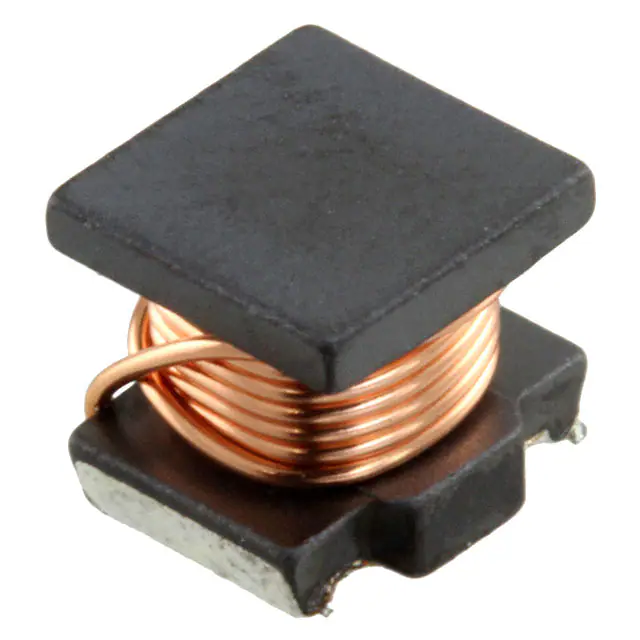

LQH55DN2R2M03LFIXED IND 2.2UH 3.2A 40.6MOHM SM Murata Electronics |
540 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.2 A | - | Unshielded | 40.6mOhm Max | - | 80MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN100M03LFIXED IND 10UH 1.7A 130.2MOHM SM Murata Electronics |
162 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | - | Unshielded | 130.2mOhm Max | - | 20MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
