Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH32MN151K23LFIXED IND 150UH 70MA 9.3 OHM SMD Murata Electronics |
1,900 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 70 mA | - | Unshielded | 9.3Ohm Max | 40 @ 796kHz | 7MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32CN221K23LFIXED IND 220UH 70MA 10.92OHM SM Murata Electronics |
1,680 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 70 mA | - | Unshielded | 10.92Ohm Max | - | 6.8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32MN220J23LFIXED IND 22UH 150MA 2.8 OHM SMD Murata Electronics |
1,509 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 150 mA | - | Unshielded | 2.8Ohm Max | 35 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LQW15AW56NG80DFIXED IND 56NH 480MA 0.52OHM SMD Murata Electronics |
19,108 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±2% | 480 mA | - | Unshielded | 520mOhm Max | 33 @ 250MHz | 2.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
.jpg)
|

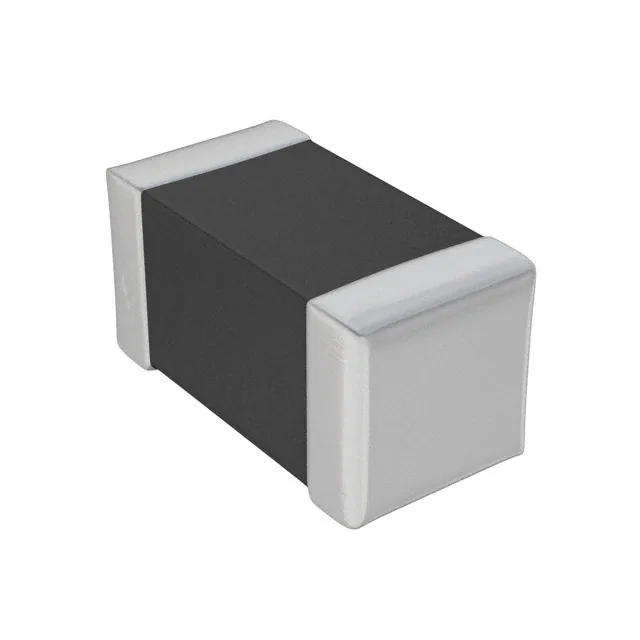

LQM18PZ2R2MDHDFIXED IND 2.2UH 650MA 470MOHM SM Murata Electronics |
15,866 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 650 mA | 250mA | Shielded | 470mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AW82NG80DFIXED IND 82NH 370MA 0.87OHM SMD Murata Electronics |
7,825 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 370 mA | - | Unshielded | 870mOhm Max | 33 @ 250MHz | 1.7GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
LQM18PZ1R0MCHDFIXED IND 1UH 950MA 290MOHM SMD Murata Electronics |
7,795 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | 600mA | Shielded | 290mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
LQM31PNR47M00LFIXED IND 470NH 1.4A 87.5MOHM SM Murata Electronics |
7,402 |
|
Datasheet |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 1.4 A | - | Shielded | 87.5mOhm Max | - | 80MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
LQM21PN4R7MGHLFIXED IND 4.7UH 1.2A 275MOHM SMD Murata Electronics |
7,166 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.2 A | 250mA | Shielded | 275mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LQW15AWR22G80DFIXED IND 220NH 220MA 2.75OHM SM Murata Electronics |
6,942 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 220 nH | ±2% | 220 mA | - | Unshielded | 2.75Ohm Max | 33 @ 250MHz | 1.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
