Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFM201610ALM-R47MTAAFIXED IND 470NH 4.5A 34MOHM SMD |
14,394 |
|
Datasheet |
TFM-ALM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 4.5 A | 5.8A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
HTEP25201T-1R0MSRFIXED IND 1 UH 5.2A 25 MOHM SMD |
3,679 |
|
Datasheet |
HTEP25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 5.2 A | 5.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
B82496C3120G000FIXED IND 12NH 450MA 350MOHM SMD |
32,271 |
|
Datasheet |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 450 mA | - | Unshielded | 350mOhm Max | 14 @ 100MHz | 5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
BWQC00322520100KL1INDUCTOR RF |
15,997 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 300mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

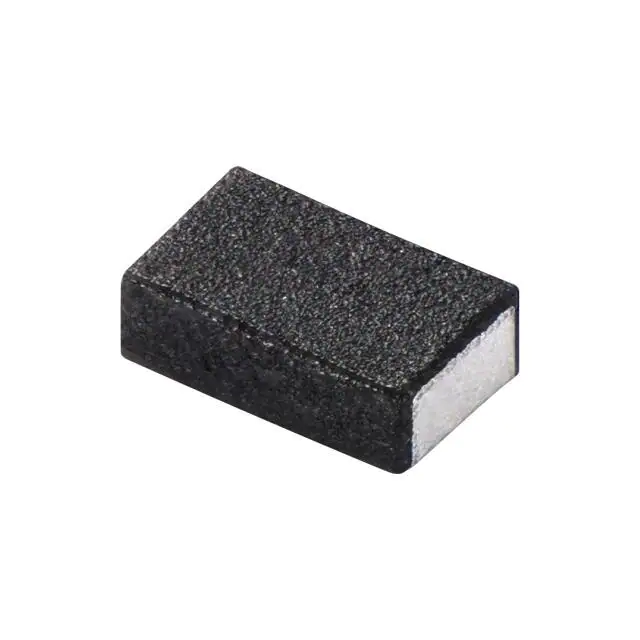

DFE21CCN2R2MELLFIXED IND 2.2UH 2100MA NONAUTO |
10,417 |
|
Datasheet |
DFE21CCN_EL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.8 A | 2.1A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
NRS8040T101MJGKFIXED IND 100UH 1A 364 MOHM SMD |
6,320 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.1A | Shielded | 364mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

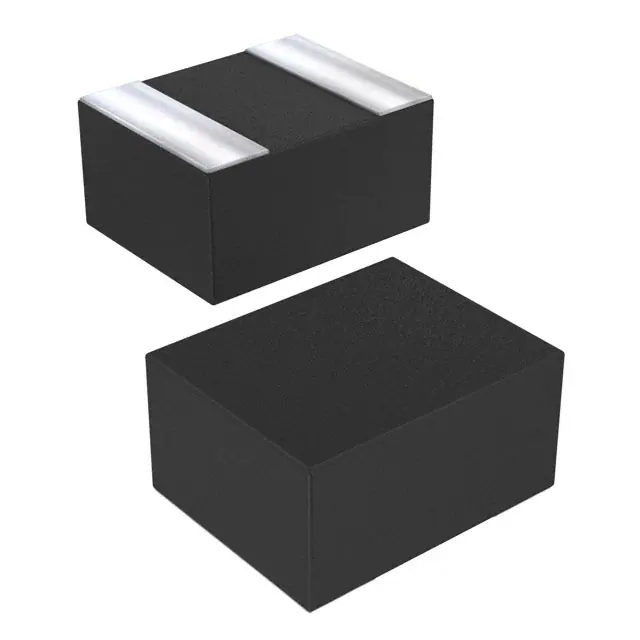

MEKK2016T1R0MFIXED IND 1UH 3.1A 60 MOHM SMD |
3,939 |
|
Datasheet |
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NRS8040T220MJGJFIXED IND 22UH 2.2A 85.8MOHM SMD |
1,210 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.4A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

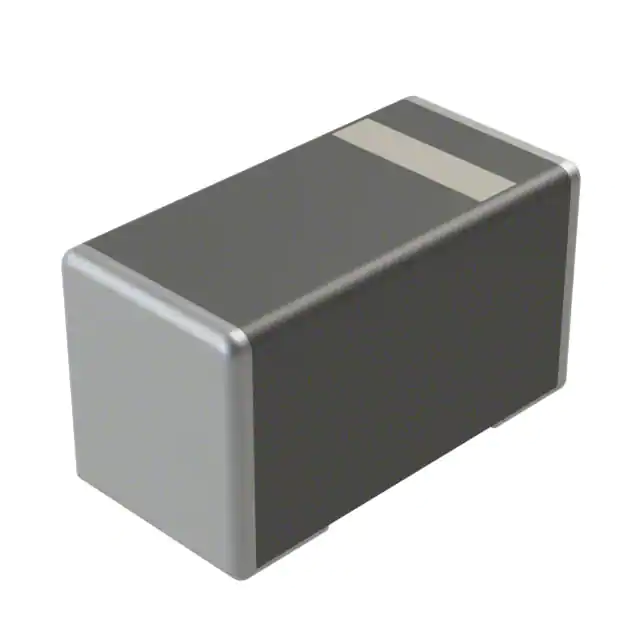

MCEE1005T1R0MHNFIXED IND 1UH 800MA 300 MOHM SMD |
31,213 |
|
Datasheet |
MCOIL™, MC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 800 mA | 1A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

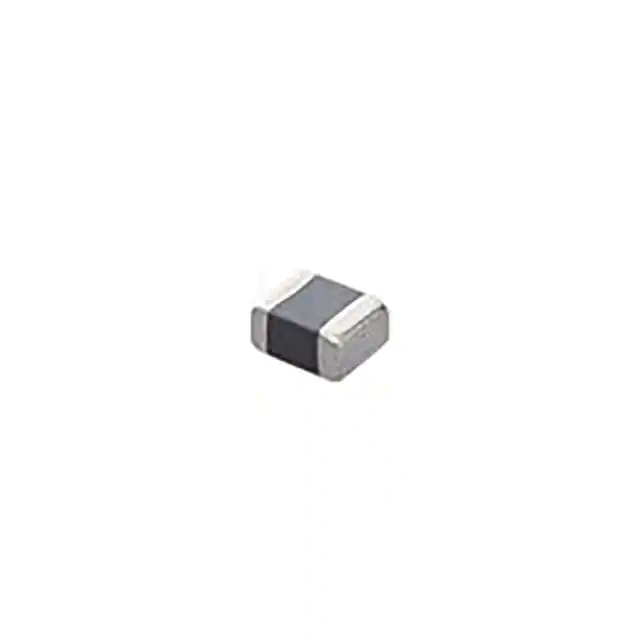

LQM2MPZR10MJHLFIXED IND 100NH 4A 19 MOHM SMD |
12,804 |
|
Datasheet |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 4 A | 4A | Shielded | 19mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQH5BPN2R2NT0LFIXED IND 2.2UH 2.6A 36 MOHM SMD |
10,462 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.6 A | 4A | Shielded | 36mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
IFSC1515AHER4R7M01FIXED IND 4.7UH 2.2A 90 MOHM SMD |
47,539 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 2A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
IFSC1515AHER220M01FIXED IND 22UH 1.2A 315 MOHM SMD |
32,447 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.2 A | 830mA | Shielded | 315mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|

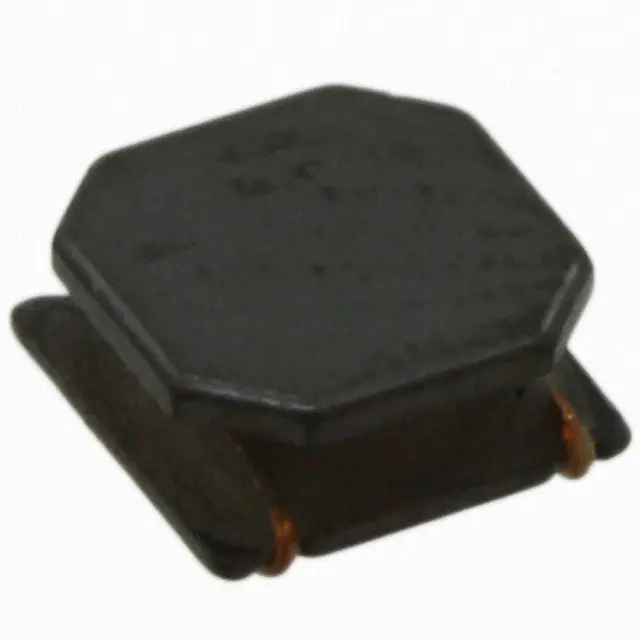

IFSC1515AHER2R2M01FIXED IND 2.2UH 3A 45 MOHM SMD |
29,213 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3 A | 3A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
TFM201610GHM-2R2MTAAFIXED IND 2.2UH 1.9A 152MOHM SMD |
21,364 |
|
Datasheet |
TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.9 A | 2.4A | Shielded | 152mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IFSC1515AHER100M01FIXED IND 10UH 1.3A 170 MOHM SMD |
16,836 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.3 A | 1.3A | Shielded | 170mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
LQH3NPZ2R2MMELFIXED IND 2.2UH 1.22A 78MOHM SMD |
14,163 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | - | Shielded | 78mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
TYA40203R3M-10FIXED IND 3.3UH 3.4A 88 MOHM SMD |
3,539 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.4 A | 4.7A | Shielded | 88mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
SRN4018-2R2MFIXED IND 2.2UH 2.9A 44 MOHM SMD |
138,206 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.9 A | 3A | Shielded | 44mOhm Max | 9 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
RLB0914-681KLFIXED IND 680UH 490MA 1.6 OHM TH |
49,100 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 490 mA | 900mA | Unshielded | 1.6Ohm Max | 20 @ 796kHz | 1.6MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
