Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFP 252010BF-1R0M1 UH SHIELDED DRUM CORE, WIREWOU |
3,960 |
|
Datasheet |
DFP252010BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 2.6 A | 3.4A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
DFP 252012BF-2R2M2.2 UH SHIELDED DRUM CORE, WIREW |
3,935 |
|
Datasheet |
DFP252012BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 2.3 A | 2.7A | Unshielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFP 252010BF-1R5M1.5 UH SHIELDED DRUM CORE, WIREW |
3,930 |
|
Datasheet |
DFP252010BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 2.3 A | 2.7A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
HPC 3012TF-2R2M2.2 UH SHIELDED DRUM CORE, WIREW |
3,788 |
|
Datasheet |
HPC3012TF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.9 A | 1.8A | Shielded | 80mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
.jpg)
|
HFI-100505-3N9SFIXED IND 3.9NH 300MA 220 MOHM |
3,708 |
|
Datasheet |
HFI-100505 | 0402 (1005 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 220mOhm Max | 8 @ 100MHz | 4GHz | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
FSLU2520-12NKP2FIXED IND 12NH 690MA 170MOHM SMD |
3,536 |
|
Datasheet |
FSLU2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 nH | ±10% | 690 mA | - | Unshielded | 170mOhm Max | 15 @ 100MHz | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
L1008C1R0MDMITFIXED IND 1UH 1.4A 80 MOHM SMD |
2,997 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.4 A | - | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|

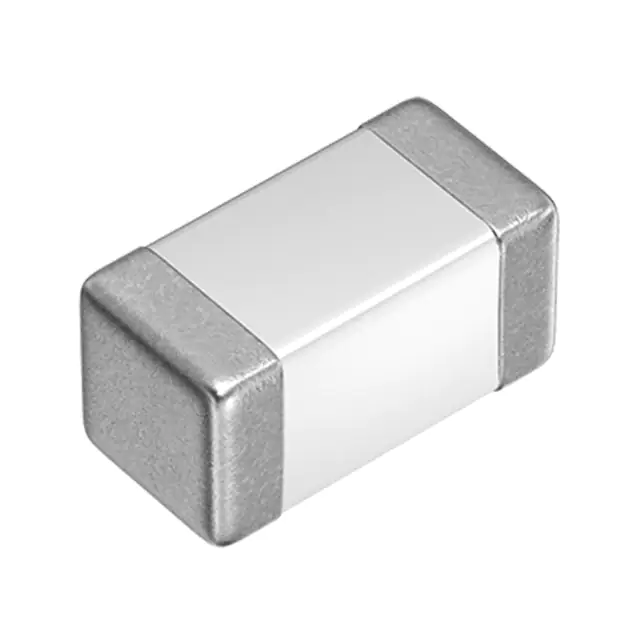

MLK0603L12NJT000FIXED IND 12NH 150MA 1 OHM SMD |
2,923 |
|
Datasheet |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 12 nH | ±5% | 150 mA | - | Unshielded | 1Ohm Max | 6 @ 300MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
L1008C3R3MDMITFIXED IND 3.3UH 1.2A 120MOHM SMD |
2,884 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
-2,00x1,60x,80mm.jpg)
|
CIGT201610LMR24MNEFIXED IND 240NH 4A 23 MOHM SMD |
2,868 |
|
Datasheet |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 240 nH | ±20% | 4 A | 5.3A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
UHP 252010BF-100M10 UH SHIELDED DRUM CORE, WIREWO |
2,862 |
|
Datasheet |
UHP252010BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 750 mA | 750mA | Unshielded | 470mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
L1008C4R7MDMITFIXED IND 4.7UH 1.1A 150MOHM SMD |
2,805 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
MLK0603L8N2JT000FIXED IND 8.2NH 200MA 700MOHM SM |
2,714 |
|
Datasheet |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 8.2 nH | ±5% | 200 mA | - | Unshielded | 700mOhm Max | 6 @ 300MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HFI-100505-1N2SFIXED IND 1.2NH 300MA 120 MOHM |
2,575 |
|
Datasheet |
HFI | 0402 (1005 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 1.2 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 10GHz | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
HPC 5040NF-6R8M6.8 UH SHIELDED DRUM CORE, WIREW |
2,560 |
|
Datasheet |
HPC5040NF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.5 A | 3.3A | Shielded | 43mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
HPC 4018NF-100M10 UH SHIELDED DRUM CORE, WIREWO |
2,306 |
|
Datasheet |
HPC4018NF | 1616 (4040 Metric) | Cut Tape (CT) | Active | Wirewound | - | 10 µH | ±20% | 1.5 A | 1.5A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
HPC 5040NF-4R7M4.7 UH SHIELDED DRUM CORE, WIREW |
2,299 |
|
Datasheet |
HPC5040NF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 3.2 A | 3.9A | Shielded | 32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
HPC 4018NF-4R7M4.7 UH SHIELDED DRUM CORE, WIREW |
2,094 |
|
Datasheet |
HPC4018NF | 1616 (4040 Metric) | Cut Tape (CT) | Active | Wirewound | - | 4.7 µH | ±20% | 2 A | 2A | Shielded | 70mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
MLK0603L3N6ST000FIXED IND 3.6NH 200MA 450MOHM SM |
2,044 |
|
Datasheet |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3.6 nH | ±0.3nH | 200 mA | - | Unshielded | 450mOhm Max | 6 @ 300MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
SNL322522QF-R10JFIXED IND 100NH 450MA 440MOHM SM |
1,990 |
|
Datasheet |
SNL322522QF | 1210 (3225 Metric) | Cut Tape (CT) | Active | Wirewound | Ferrite | 100 nH | ±5% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
