Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L1008L2R2MDMITFIXED IND 2.2UH 1.2A 100MOHM SMD KEMET |
2,744 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
L1008CR47MDMITFIXED IND 470NH 1.8A 50 MOHM SMD KEMET |
2,671 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.8 A | - | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
L1008Q3R3MDMITFIXED IND 3.3UH 1.1A 150MOHM SMD KEMET |
1,975 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.1 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
L0805C100MPWSTINDUCTOR, WW SMD KEMET |
1,505 |
|
Datasheet |
L-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 100 mA | - | Unshielded | 700mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

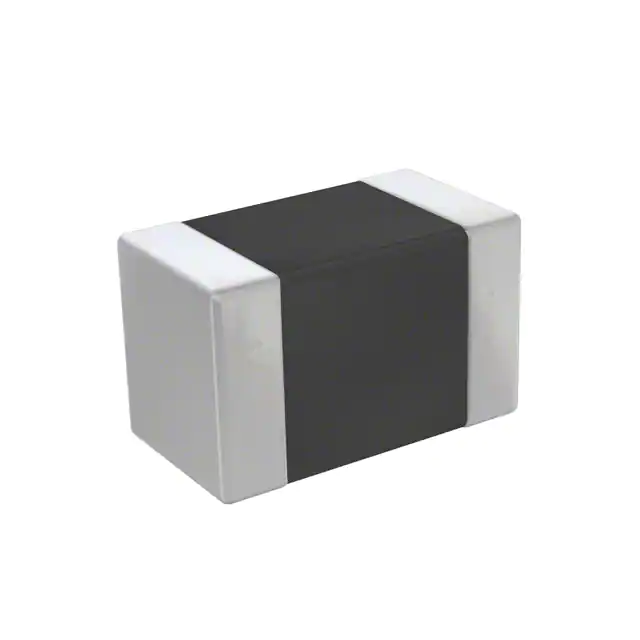

L1207C1R0MPWSTFIXED IND 1UH 1.075A 60 MOHM SMD KEMET |
5,411 |
|
Datasheet |
L-PWS | 1207 (3218 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.075 A | - | Unshielded | 60mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|

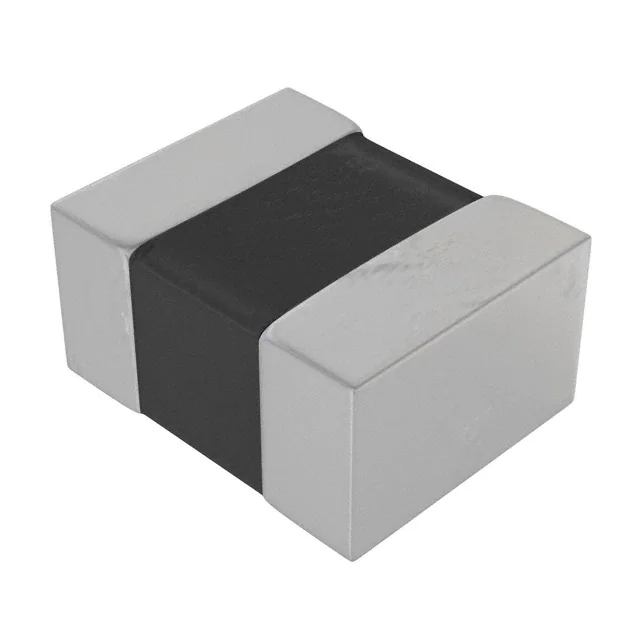

L0806B270JSWSTFIXED IND 27UH 130MA 3.2 OHM SMD KEMET |
5,530 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 130 mA | - | Unshielded | 3.2Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B6R8JSWSTFIXED IND 6.8UH 240MA 970MOHM SM KEMET |
5,307 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 240 mA | - | Unshielded | 970mOhm | - | 33MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR82JSWSTFIXED IND 820NH 390MA 340MOHM SM KEMET |
3,348 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 390 mA | - | Unshielded | 340mOhm | - | 250MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B180JSWSTFIXED IND 18UH 150MA 2.5 OHM SMD KEMET |
2,984 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 150 mA | - | Unshielded | 2.5Ohm | - | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B120JSWSTFIXED IND 12UH 200MA 1.4 OHM SMD KEMET |
2,221 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 200 mA | - | Unshielded | 1.4Ohm | - | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
