Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPGV1D1054L330FIXED IND 33UH 4.5A 85.1MOHM SMD KEMET |
756 |
|
Datasheet |
METCOM MPGV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 4.5 A | 7.5A | Shielded | 85.1mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1054 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
MPXV1D1054L4R7FIXED IND 4.7UH 11.3A 13.69 MOHM KEMET |
1,407 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 11.3 A | 14A | Shielded | 13.69mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|

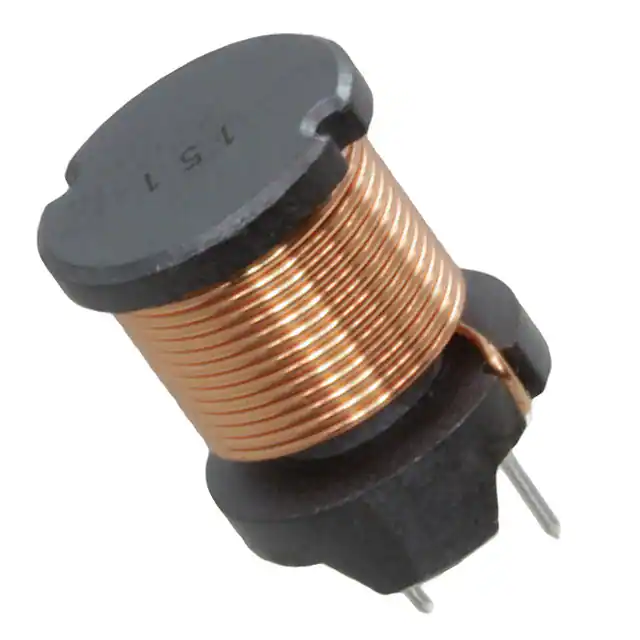

SBCP-14HY472BFIXED IND 4.7MH 270MA 4.97OHM TH KEMET |
1,442 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 270 mA | 480mA | Unshielded | 4.97Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
MPXV1D1250L220FIXED IND 22UH 6.7A 46.2MOHM SMD KEMET |
500 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 6.7 A | 9A | Shielded | 46.2mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPX1D1264LR47FIXED IND 470NH 38.2A 1.7MOHM SM KEMET |
250 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 38.2 A | 58A | Shielded | 1.7mOhm Max | - | 53MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
TPI078060L068NFIXED IND 68NH 53A 0.31 MOHM SMD KEMET |
868 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 nH | ±10% | 53 A | 69A | Shielded | 0.31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.236" (6.00mm) |
|
SHBC12-1R0A0080VCMC 80UH 5A 2LN TH KEMET |
208 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 80 µH | ±20% | 5 A | - | Unshielded | 35.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.039" Dia (26.40mm) | 1.039" (26.40mm) |
|
|
SHBC10-0R8A0068VCMC 68UH 3A 2LN TH KEMET |
224 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 68 µH | ±20% | 3 A | - | Unshielded | 42.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.846" Dia (21.50mm) | 0.846" (21.50mm) |
|
|
SHBC13-1R2A0045VCMC 45UH 6A 2LN TH KEMET |
262 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 45 µH | ±20% | 6 A | - | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.181" Dia (30.00mm) | 1.181" (30.00mm) |
|

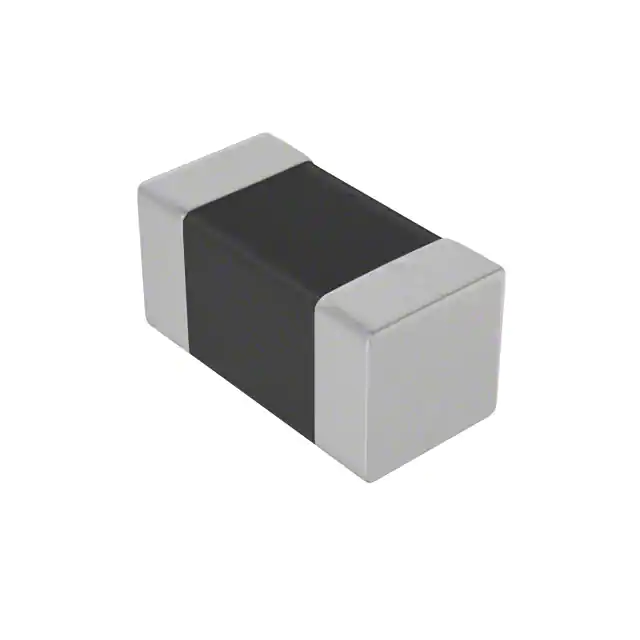

L0603CR18JRMSTFIXED IND 180NH 300MA 1.3OHM SMD KEMET |
0 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 180 nH | ±5% | 300 mA | - | Unshielded | 1.3Ohm Max | 13 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
