Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWP 252012FW-1R0M1.0 UH SHIELDED MOLDED INDUCTOR |
3,423 |
|
Datasheet |
AWP252012FW | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Molded | - | 1 µH | ±20% | 3.3 A | 3.6A | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
L0806C1R0MDMITFIXED IND 1UH 1.3A 120 MOHM SMD |
2,998 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.3 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
L0806C2R2MDMITFIXED IND 2.2UH 1.2A 140MOHM SMD |
2,925 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
L0806C4R7MDMITFIXED IND 4.7UH 900MA 200MOHM SM |
2,898 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 900 mA | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
L0806C3R3MDMITFIXED IND 3.3UH 1.1A 160MOHM SMD |
2,877 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.1 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LL2012-F1N8SINDUCTOR 1.8NH TYPE LL SMD |
1,813 |
|
Datasheet |
LL2012-F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.051" (1.30mm) |
|
|
L0805C4R7MDMITFIXED IND 4.7UH 700MA 280MOHM SM |
1,483 |
|
Datasheet |
L-DMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 700 mA | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
|
AWP 252012FW-4R7M4.7 UH SHIELDED MOLDED INDUCTOR |
1,138 |
|
Datasheet |
AWP252012FW | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Molded | - | 4.7 µH | ±20% | 1.6 A | 1.6A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ASPI-0310FS-1R5N-T2FIXED IND 1.5UH 2A 70 MOHM SMD |
0 |
|
Datasheet |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.5 µH | ±30% | 2 A | 1.65A | Shielded | 70mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
IHHP1008AZERR24M01INDUCT WW SNGL COIL MISC |
12,000 |
|
Datasheet |
IHHP-1008AZ-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 240 nH | ±20% | 5 A | 4.9A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
IMC0603ER2N0C01INDUCT WW SNGL COIL MISC |
3,000 |
|
Datasheet |
IMC-0603-01 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2 nH | ±0.2nH | 700 mA | - | Unshielded | 80mOhm Max | 16 @ 250MHz | 6.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
MSA75681M0S001INDUCTANCE 680 UH TOL 20% |
23,000 |
|
Datasheet |
MSA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | - | 250mA | Unshielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|

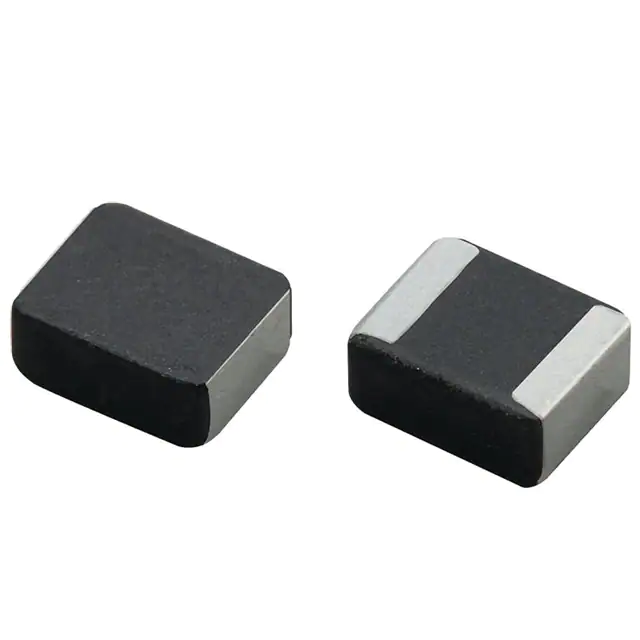

WIP322512A-R47MLDGPOWER INDUCTOR 3225 0.47UH 20% D |
29,968 |
|
Datasheet |
WIP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 5.2 A | 7A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
 MHQ Series.jpg)
|
MHQ0603P2N8CT000FIXED IND 2.8NH 500MA 250MOHM SM |
14,965 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.8 nH | ±0.2nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P3N5BT000FIXED IND 3.5NH 500MA 250MOHM SM |
14,730 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.5 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
WIP322512A-4R7MLDGPOWER INDUCTOR 3225 4.7UH 20% DC |
14,092 |
|
Datasheet |
WIP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 1.8A | Shielded | 162mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
WIP322512A-2R2MLDGPOWER INDUCTOR 3225 2.2UH 20% DC |
13,794 |
|
Datasheet |
WIP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.7 A | 3.5A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
WIP322512A-6R8MLDGPOWER INDUCTOR 3225 6.8UH 20% DC |
13,758 |
|
Datasheet |
WIP322512A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 1.2 A | 2.1A | Shielded | 210mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MHQ0603P3N8BT000FIXED IND 3.8NH 450MA 300MOHM SM |
13,219 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.8 nH | ±0.1nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
WIP322512A-1R0MLDGPOWER INDUCTOR 3225 1.0UH 20% DC |
12,097 |
|
Datasheet |
WIP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 4.4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
