Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447707047WE-PD PERFORMANCE SMT SHIELDED P |
445 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 8.5 A | 15.5A | Shielded | 10mOhm Max | - | 28.8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707221WE-PD PERFORMANCE SMT SHIELDED P |
420 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 1.35 A | 2.35A | Shielded | 265mOhm Max | - | 2.9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707470WE-PD PERFORMANCE SMT SHIELDED P |
396 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.9 A | 5.1A | Shielded | 63mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
TLVR1105T-70NYFIXED IND 70NH 77A 0.125MOHM |
390 |
|
Datasheet |
TLVR1105T | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Molded | Ferrite | 70 nH | ±15% | 77 A | 160A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | Nonstandard, 4 Lead | 0.461" L x 0.224" W (11.70mm x 5.70mm) | 0.441" (11.20mm) |
|
|
7447707068WE-PD PERFORMANCE SMT SHIELDED P |
364 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 6.8 A | 13A | Shielded | 14mOhm Max | - | 19.1MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707102WE-PD PERFORMANCE SMT SHIELDED P |
360 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 660 mA | 1.1A | Shielded | 1.09Ohm Max | - | 1.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707150WE-PD PERFORMANCE SMT SHIELDED P |
358 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 4.7 A | 9A | Shielded | 26.5mOhm Max | - | 13.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707100WE-PD PERFORMANCE SMT SHIELDED P |
231 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.6 A | 11A | Shielded | 21mOhm Max | - | 15.1MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707331WE-PD PERFORMANCE SMT SHIELDED P |
211 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 1.08 A | 1.9A | Shielded | 410mOhm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPM10054T-680M-HZRAUTO IND 68H 3.7A 163MOHM |
155 |
|
Datasheet |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 68 µH | ±20% | 2.7 A | 3.2A | Shielded | 163mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
8230-56-RCFIXED IND 33UH 187MA 3.4 OHM TH |
5,960 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 187 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-70-RCFIXED IND 120UH 97MA 13 OHM TH |
1,000 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 97 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

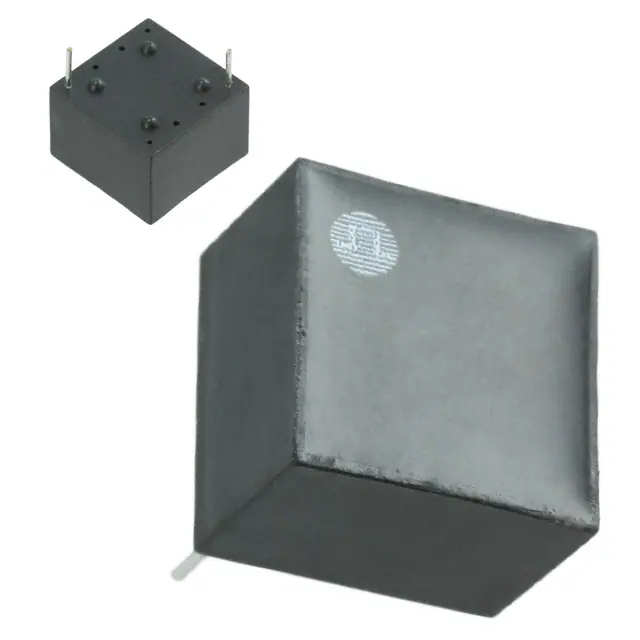

PE-53818NLFIXED IND 252UH 440MA 900MOHM TH |
560 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
AMDLA1306Q-220MTFIXED IND 22UH 8A 35 MOHM SMD |
468 |
|
Datasheet |
AMDLA1306Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 8 A | 9A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
AMDLA1306Q-100MTFIXED IND 10UH 11A 15.8 MOHM SMD |
468 |
|
Datasheet |
AMDLA1306Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 11 A | 15A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
AMDLA1306Q-330MTFIXED IND 33UH 6.5A 55 MOHM SMD |
289 |
|
Datasheet |
AMDLA1306Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 6.5 A | 8A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
PGL6380.101HLTIND PWR BEAD TLVR 100NH 117A |
1,243 |
|
Datasheet |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 77 A | 117A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
|
PE-53633NLTFIXED IND 29.1UH 2.7A 100MOHM SM |
1,200 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 29.1 µH | - | 2.7 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
74439387033POWER INDUCTOR 7070; 3.3 H; 18.2 |
1,190 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 18.2 A | 18.6A | Shielded | 8.76mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
|
|
74439387056POWER INDUCTOR 7070; 5.6 H; 14.8 |
1,189 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 14.8 A | 13.9A | Shielded | 13.32mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
