Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR0745HA-102MIND 1000UH 0.2A SHLD |
994 |
|
Datasheet |
SSR0745HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 240mA | Shielded | 4.1Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
LQH55DN4R7M03LFIXED IND 4.7UH 2.7A 57.4MOHM SM |
674 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.7 A | - | Unshielded | 57.4mOhm Max | - | 30MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
RL875S-471K-RCFIXED IND 470UH 340MA 1.44OHM TH |
600 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 340 mA | - | Shielded | 1.44Ohm Max | 45 @ 796kHz | 2.5MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
LQH55DNR47M03LFIXED IND 470NH 4.8A 18.2MOHM SM |
344 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 4.8 A | - | Unshielded | 18.2mOhm Max | - | 200MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN1R0M03LFIXED IND 1UH 4A 26.6 MOHM SMD |
332 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4 A | - | Unshielded | 26.6mOhm Max | - | 150MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DNR27M03LFIXED IND 270NH 5.3A 14 MOHM SMD |
325 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±20% | 5.3 A | - | Unshielded | 14mOhm Max | - | 300MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
PM5430.332NLTFIXED IND 3.3UH 6.6A 28.6MOHM SM |
319 |
|
Datasheet |
PM5430.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 6.6 A | - | Shielded | 28.6mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
LQH55DN470M03LFIXED IND 47UH 800MA 560MOHM SMD |
312 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 800 mA | - | Unshielded | 560mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN330M03LFIXED IND 33UH 900MA 448MOHM SMD |
307 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 900 mA | - | Unshielded | 448mOhm Max | - | 12MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN101M03LFIXED IND 100UH 560MA 1.2OHM SMD |
300 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 560 mA | - | Unshielded | 1.2Ohm Max | - | 6.5MHz | - | -40°C ~ 80°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN151M03LFIXED IND 150UH 420MA 2.66OHM SM |
300 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 420 mA | - | Unshielded | 2.66Ohm Max | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN222M03LFIXED IND 2.2MH 100MA 30.1OHM SM |
250 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 100 mA | - | Unshielded | 30.1Ohm Max | - | 1.2MHz | - | -40°C ~ 80°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55DN6R8M03LFIXED IND 6.8UH 2A 103.6MOHM SMD |
107 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2 A | - | Unshielded | 103.6mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
LCRNJ10165GL220MNFIXED IND 22UH 3.1A 42 MOHM SMD |
2,150 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.1A | Shielded | 35mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|

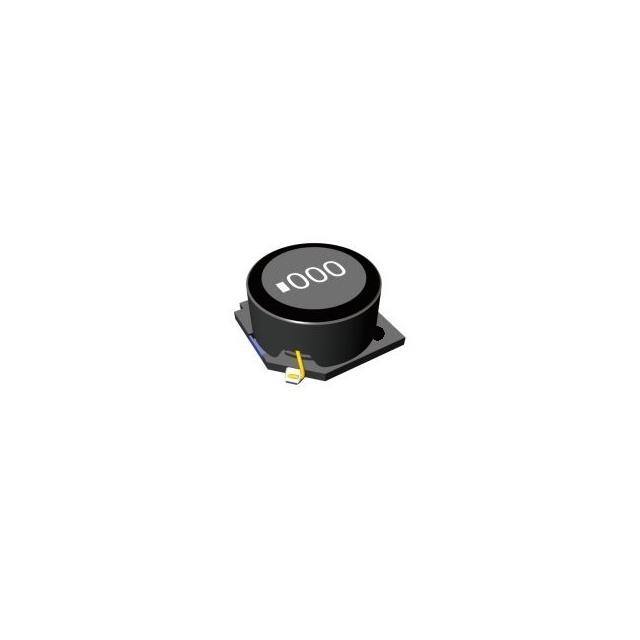

LCRNJ10165GL4R7NNFIXED IND 4.7UH 5.88A 13.5 MOHM |
2,000 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 11.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
AIAP-03-6R8MFIXED IND 6.8UH 11.6A 13 MOHM TH |
959 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 11.6 A | - | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
RL-5480HC-1-1000FIXED IND 1000UH .220A 5.63OHM T |
2,000 |
|
Datasheet |
RL-5480HC-1 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 220 mA | 215mA | Unshielded | 5.63Ohm Max | - | 1.8MHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.291" (7.40mm) |
|
P0250.153NLTFIXED IND 15UH 4A 36 MOHM SMD |
1,138 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±15% | 4 A | 8A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
78438336022WE-MAIA SMT POWER INDUCTOR |
342 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±20% | 2.4 A | 4.3A | Shielded | 80mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
ASPIAIG-F6050-2R2M-TFIXED IND 2.2UH 13A 8.5 MOHM SMD |
4,725 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 13 A | 12A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6050 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
