Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP8540A-R82MIND 8.8X8.4X3.8MM 0.82UH20% 21A |
585 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 820 nH | ±20% | 21 A | 32A | Shielded | 4.1mOhm Max | 15 @ 100kHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|

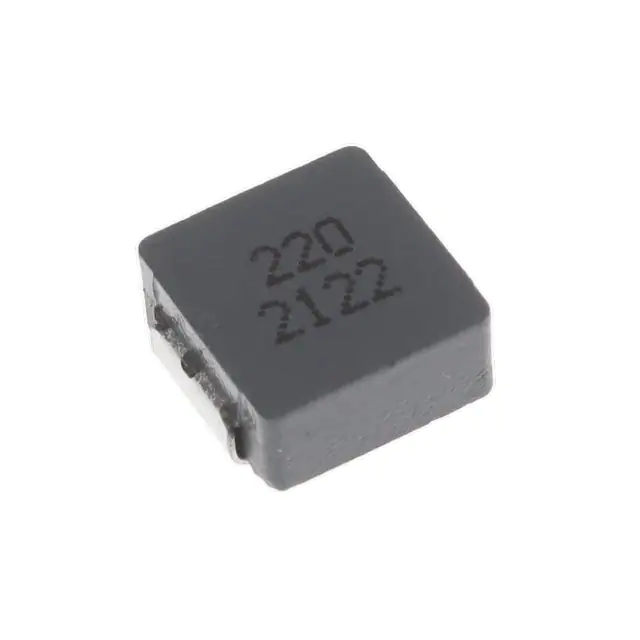

SRP8540A-220MIND 8.8X8.4X3.8MM 22UH20% 3.9A S |
493 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 22 µH | ±20% | 3.9 A | 8A | Shielded | 120mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
SPB1007-R17MIND POWER BEAD 175NH 61A SHLD |
468 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 175 nH | ±20% | 61 A | 66A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
|
|
SPB1007-R15MIND POWER BEAD 150NH 61A SHLD |
443 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±20% | 61 A | 76A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
|
SRP1038AA-100MIND,11X10X3.8MM,10UH20%,7.5A,SHD |
273 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 7.5 A | 8.6A | Shielded | 30mOhm Max | 20 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74408063470WE-HEPC SMT SHIELDED TINY POWER |
4,464 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 800 mA | 1.2A | Shielded | 385mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
ASPI-8040HS-R47M-TIND 0.47UH 25A 2.62M |
3,900 |
|
Datasheet |
ASPI-8040HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 25 A | 31.5A | Shielded | 2.62mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.157" (4.00mm) |
|
|
74408063330WE-HEPC SMT SHIELDED TINY POWER |
3,000 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 900 mA | 1.5A | Shielded | 285mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
74408063150WE-HEPC SMT SHIELDED TINY POWER |
3,000 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.2 A | 2.3A | Shielded | 180mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
74408063006WE-HEPC SMT SHIELDED TINY POWER |
2,998 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.8 A | 3.3A | Shielded | 100mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
74408063680WE-HEPC SMT SHIELDED TINY POWER |
2,974 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 600 mA | 1A | Shielded | 535mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
74408063220WE-HEPC SMT SHIELDED TINY POWER |
2,880 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1 A | 1.8A | Shielded | 220mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
74408063004WE-HEPC SMT SHIELDED TINY POWER |
2,874 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2 A | 4A | Shielded | 90mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
CMLE051H-R33MSIND SMD 0.33UH MOLDING CHOKE |
2,800 |
|
Datasheet |
CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 15 A | 17A | Unshielded | 5.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
HCM1A0703V2-1R2-RFIXED IND 1.2UH 9A 9.9 MOHM SMD |
2,000 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 9 A | 12A | Shielded | 9.9mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

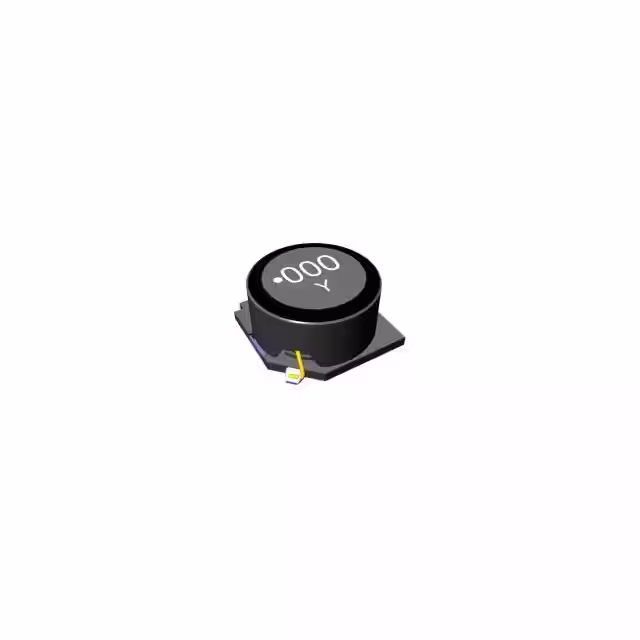

LSRNJ12575GL680MMYFIXED IND 68UH 2.49A 86.4MOHM SM |
1,264 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.49 A | 2.78A | Shielded | 86.4mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

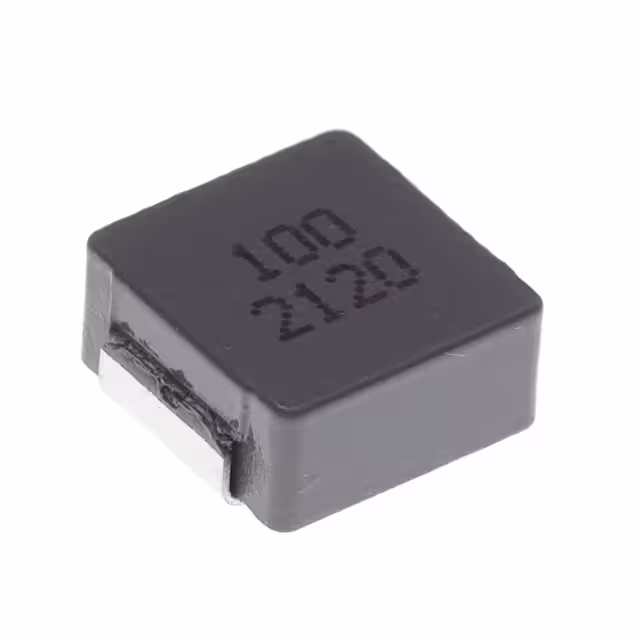

SRP8540A-100MIND 8.8X8.4X3.8MM 10UH20% 5.6A S |
1,237 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 10 µH | ±20% | 5.6 A | 10A | Shielded | 61mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
CMLE053T-1R0MSIND SMD 1.0UH MOLDING CHOKE |
998 |
|
Datasheet |
CMLE053T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 9.7 A | 9A | Unshielded | 9.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.118" (3.00mm) |
|
|
CMLB053T-1R5MSIND SMD 1.5UH MOLDING CHOKE |
990 |
|
Datasheet |
CMLB053T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 7 A | 8A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.118" (3.00mm) |
|
ASPIAIG-FLR4020-1R0M-TFIXED IND 1UH 11A 11.7 MOHM SMD |
1,672 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 8A | Shielded | 11.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
