Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1280A-681KFIXED IND 680UH 750MA 1.3OHM SMD |
2,000 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 750 mA | 970mA | Shielded | 1.3Ohm Max | 26 @ 796kHz | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
LSRNJ12575GL2R7NMYFIXED IND 2.7UH 7.69A 10.2 MOHM |
1,999 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±30% | 7.69 A | 13.91A | Shielded | 10.2mOhm Max | - | 55.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LSRNJ12575GL221MMYFIXED IND 220UH 1.35A 245MOHM SM |
1,950 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.35 A | 1.81A | Shielded | 294mOhm Max | - | 2.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
SRP7028AA-2R2MIND,7.1X6.6X2.8MM,2.2UH20%,8A,SH |
1,922 |
|
Datasheet |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 8 A | 10A | Shielded | 15mOhm Max | 10 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
LSRNJ12575GL100MMYFIXED IND 10UH 5.55A 18.72 MOHM |
1,785 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 18.8mOhm Max | - | 21.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
PA5431.103NLTIND COMPOSITE 10UH 3.1A |
1,776 |
|
Datasheet |
PA5431.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 3.1 A | 2.5A | Unshielded | 92.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.161" (4.10mm) |
|
|
SRP7028AA-150MIND,7.1X6.6X2.8MM,15UH20%,3A,SHD |
1,614 |
|
Datasheet |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 3 A | 4.5A | Shielded | 140mOhm Max | 10 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PM5449.473NLTFIXED IND 47UH 2.5A 225MOHM SMD |
1,600 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 2.5 A | 2.9A | Shielded | 225mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.332NLTFIXED IND 3.3UH 10A 15 MOHM SMD |
1,600 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 11A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.562NLTFIXED IND 5.6UH 8A 30 MOHM SMD |
1,599 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 8 A | 10A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.822NLTFIXED IND 8.2UH 6A 46 MOHM SMD |
1,590 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 6 A | 7.7A | Shielded | 46mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.152NLTFIXED IND 1.5UH 15A 7.6MOHM SMD |
1,549 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 15 A | 15A | Shielded | 7.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.222NLTFIXED IND 2.2UH 12A 11.4MOHM SMD |
1,510 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 12 A | 12A | Shielded | 11.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|

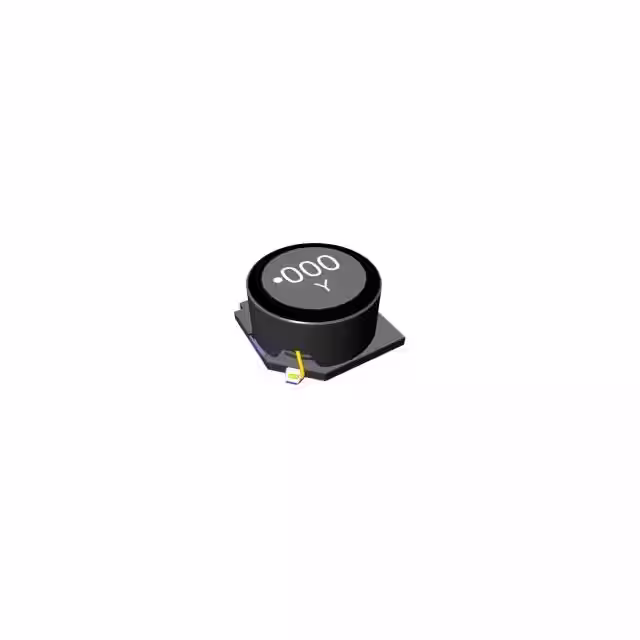

LSRNJ12575GL470MMYFIXED IND 47UH 2.95A 61.8MOHM SM |
1,420 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.95 A | 3.76A | Shielded | 61.8mOhm Max | - | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
MGV06024R7M-10FIXED IND 4.7UH 3A 78 MOHM SMD |
1,358 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3 A | 8A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
LSRNJ12575GL150MMYFIXED IND 15UH 5.22A 22.08 MOHM |
1,296 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 5.22 A | 6.54A | Shielded | 22.1mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SRP7028AA-5R6MIND,7.1X6.6X2.8MM,5.6UH20%,5.5A, |
1,289 |
|
Datasheet |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 5.5 A | 6A | Shielded | 42mOhm Max | 10 @ 100kHz | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
LSRNJ12575GL330MMYFIXED IND 33UH 3.48A 46.8MOHM SM |
1,110 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.48 A | 4.45A | Shielded | 46.8mOhm Max | - | 8.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SRP7028AA-3R3MIND,7.1X6.6X2.8MM,3.3UH20%,6.5A, |
1,055 |
|
Datasheet |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 6.5 A | 9.5A | Shielded | 22mOhm Max | 10 @ 100kHz | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028AA-1R5MIND,7.1X6.6X2.8MM,1.5UH20%,10A,S |
959 |
|
Datasheet |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 10 A | 14A | Shielded | 12.1mOhm Max | 10 @ 100kHz | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
