Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

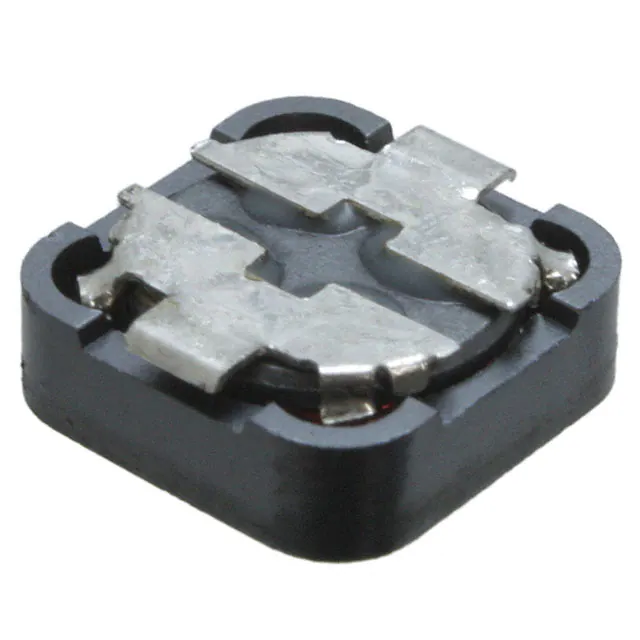

P1169.473NLFIXED IND 47UH 1.8A 140 MOHM SMD |
1,790 |
|
Datasheet |
P1169NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 1.9A | Shielded | 140mOhm Max | - | 9MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
P1169.153NLFIXED IND 15UH 3.1A 47 MOHM SMD |
1,788 |
|
Datasheet |
P1169NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±20% | 3.1 A | 3.3A | Shielded | 47mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
P1252.222NLFIXED IND 2.2UH 12A 6.1 MOHM SMD |
1,670 |
|
Datasheet |
P1252NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 12 A | 20A | Unshielded | 6.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
|
P1252.782NLFIXED IND 7.8UH 7.5A 18 MOHM SMD |
1,670 |
|
Datasheet |
P1252NL | Nonstandard | Tray | Active | Wirewound | - | 7.8 µH | ±20% | 7.5 A | 11A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
|
P1252.472NLFIXED IND 4.7UH 8.4A 14 MOHM SMD |
1,590 |
|
Datasheet |
P1252NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 8.4 A | 13A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
SFAPI-222K-UL-TRFIXED IND 2.2MH 158MA AXIAL |
2,994 |
|
Datasheet |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 2.2 mH | ±10% | 158 mA | - | Unshielded | 4.48Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|

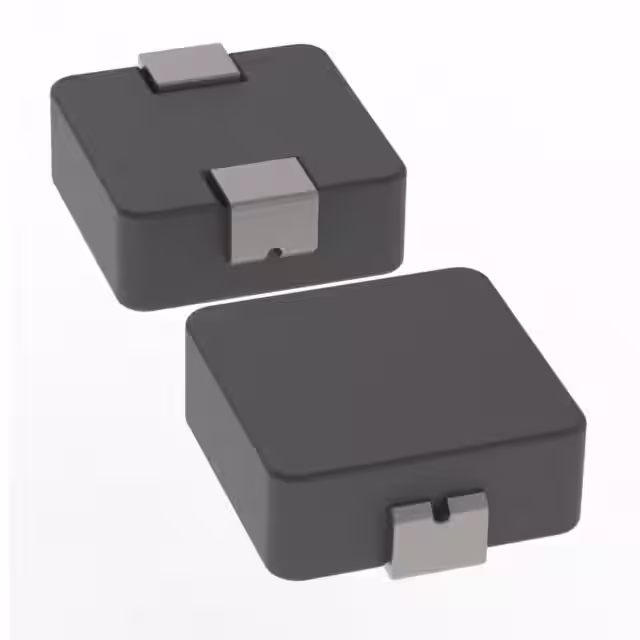

PM4342.333NLTFIXED IND 33UH 3.5A 112 MOHM SMD |
1,435 |
|
Datasheet |
PM4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PM4342.222NLTFIXED IND 2.2UH 12A 7 MOHM SMD |
1,430 |
|
Datasheet |
PM4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 12 A | 27A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
SFAPI-330K-UL-TRFIXED IND 33UH 1.008A AXIAL |
986 |
|
Datasheet |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 1.008 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SPB0705-R10MIND POWER BEAD 105NH 43A SHLD |
937 |
|
Datasheet |
SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | ±20% | 43 A | 44A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SPB0705-72NMIND POWER BEAD 72NH 43A SHLD |
885 |
|
Datasheet |
SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 72 nH | ±20% | 43 A | 65A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
SRR1240-820MFIXED IND 82UH 1.35A 250MOHM SMD |
789 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.35 A | 1.35A | Shielded | 250mOhm Max | 16 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
DRC-0810-560K-ULRADIAL INDUCTOR WITH LEADS, 56.0 |
500 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.3 A | - | Unshielded | 150mOhm Max | 40 @ 2.52MHz | 6.4MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
|
|
DRC-0810-150K-ULRADIAL INDUCTOR WITH LEADS, 15.0 |
500 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.8 A | - | Unshielded | 33mOhm Max | 50 @ 2.52MHz | 13MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
|
|
DRC-0810-180K-ULRADIAL INDUCTOR WITH LEADS, 18.0 |
495 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.6 A | - | Unshielded | 39mOhm Max | 50 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
|
|
DRC-0810-100K-ULRADIAL INDUCTOR WITH LEADS, 10.0 |
494 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.2 A | - | Unshielded | 25Ohm Max | 50 @ 2.52MHz | 17MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
|
PM127SH-391M-RCFIXED IND 390UH 1.6A 680MOHM SMD |
370 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 1.6 A | 1.4A | Shielded | 680mOhm Max | 20 @ 796kHz | 2.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRR1280-6R1YFIXED IND 6.1UH 6.6A 18 MOHM SMD |
344 |
|
Datasheet |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±30% | 6.6 A | 7.8A | Shielded | 18mOhm Max | 20 @ 7.96MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DRC-0810-561J-ULRADIAL INDUCTOR WITH LEADS, 560H |
296 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 380 mA | - | Unshielded | 1Ohm Max | 20 @ 796kHz | 2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
|
|
DRC-0810-821J-ULRADIAL INDUCTOR WITH LEADS, 820H |
295 |
|
Datasheet |
DRC-0810 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 310 mA | - | Unshielded | 1.5Ohm Max | 20 @ 796kHz | 1.7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.512" (13.00mm) |
