Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND6060YEL101MMGFIXED IND 100UH 750MA 605.8 MOHM |
1,475 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Unshielded | 466mOhm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LPA0618-250KLFIXED IND 25UH 1.2A 150 MOHM TH |
1,185 |
|
Datasheet |
LPA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 25 µH | ±10% | 1.2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | - |
|
|
LPA0618-100KLFIXED IND 10UH 2A 75 MOHM TH |
1,167 |
|
Datasheet |
LPA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | - |
-Height-1,00.jpg)
|

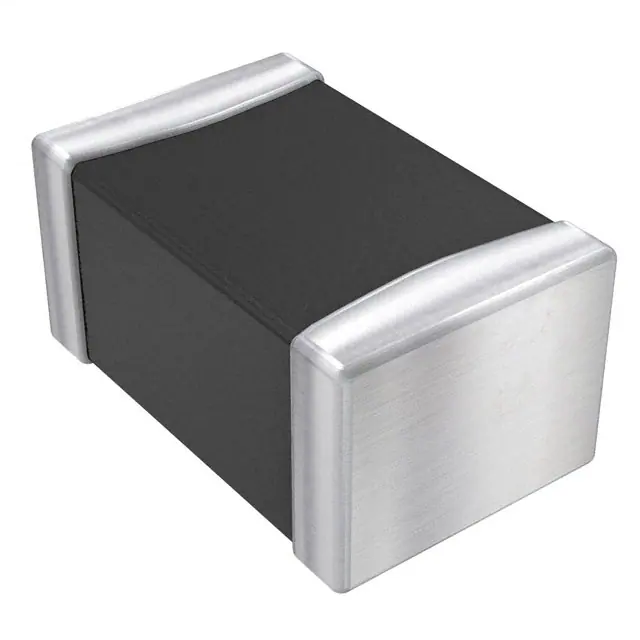

CPI0805E4R7R-10FIXED IND 4.7UH 500MA 300MOHM SM |
19,910 |
|
Datasheet |
CPI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 500 mA | - | Unshielded | 300mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
TYS252012L220M-10FIXED IND 22UH 380MA 1.824OHM SM |
9,691 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 380 mA | 530mA | Shielded | 1.824Ohm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW15CNR20J00DFIXED IND 200NH 390MA 0.47OHM SM |
6,110 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±5% | 390 mA | - | Unshielded | 470mOhm Max | - | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
TMS201210ALM-2R2MTAAIND,2.2UH, 1.4A, 282M, -40~125 |
6,000 |
|
Datasheet |
TMS-ALM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.1 A | 1.2A | Unshielded | 282mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
TMS201210ALM-1R5MTAAIND,1.5UH, 1.8A, 130M, -40~125 |
6,000 |
|
Datasheet |
TMS-ALM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 1.8 A | 2A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
TMS201210ALM-R56MTAAIND,0.56UH, 2.8A, 49M, -40~125 |
5,990 |
|
Datasheet |
TMS-ALM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 560 nH | ±20% | 2.8 A | 3A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
SRN4018BTA-3R3MIND,4X4X1.6MM,3.3UH20%,2A,SHD |
3,653 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 55mOhm | 10 @ 100kHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-1R5YIND,4X4X1.6MM,1.530%UH20%,2.4A,S |
3,281 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2.4 A | 3.3A | Shielded | 37mOhm | 10 @ 100kHz | 75MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-R47MIND,4X4X1.6MM,0.47UH20%,5.5A,SHD |
3,243 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±20% | 5.5 A | 6A | Shielded | 15mOhm | 10 @ 100kHz | 151MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-R56MIND,4X4X1.6MM,0.56UH20%,4.5A,SHD |
3,205 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±20% | 4.5 A | 5A | Shielded | 19mOhm | 10 @ 100kHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-2R2MIND,4X4X1.6MM,2.2UH20%,2.2A,SHD |
3,189 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 3A | Shielded | 42mOhm | 10 @ 100kHz | 60MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-100MIND,4X4X1.6MM,10UH20%,1.2A,SHD |
3,176 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 150mOhm | 10 @ 100kHz | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-330MIND,4X4X1.6MM,33UH20%,0.55A,SHD |
3,153 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 550 mA | 700mA | Shielded | 460mOhm | 10 @ 100kHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-101MIND,4X4X1.6MM,100UH20%,0.85A,SHD |
3,108 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 420mA | Shielded | 1.45Ohm | 10 @ 100kHz | 6.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
B82144A2103J000FIXED IND 10UH 1.4A 220 MOHM TH |
2,958 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 1.4 A | - | Unshielded | 220mOhm Max | 60 @ 2.52MHz | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
SRN4018BTA-150MIND,4X4X1.6MM,15UH20%,0.85A,SHD |
2,902 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Shielded | 210mOhm | 10 @ 100kHz | 18MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018BTA-680MIND,4X4X1.6MM,68UH20%,0.32A,SHD |
2,895 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 520mA | Shielded | 1Ohm | 10 @ 100kHz | 8.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
