Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCENA2016MKT1R0M0NKWIRE-WOUND METAL POWER INDUCTORS |
5,740 |
|
Datasheet |
LCEN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2 A | 3.1A | Unshielded | 45mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
SDCH1V5020-680M-RIND 68 UH 0.59A SMT |
4,925 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 550 mA | 590mA | Shielded | 725mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
LSENC2520KKT1R0MFIXED IND 1UH 3.3A 53 MOHM SMD |
4,590 |
|
Datasheet |
LSEN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3.3 A | 4.3A | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSXBD4040MKL150MFIXED IND 15UH 600MA 480MOHM SMD |
4,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 600 mA | 560mA | Shielded | 400mOhm | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXBD4040MKL220MFIXED IND 22UH 540MA 576MOHM SMD |
4,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 540 mA | 510mA | Shielded | 480mOhm | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
PE-0603CD121GTTFIXED IND 122NH 300MA 650MOHM SM |
4,000 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 122 nH | ±2% | 300 mA | - | Unshielded | 650mOhm Max | 33 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
PE-0805CD391GTTFIXED IND 386NH 290MA 1.5OHM SMD |
4,000 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 386 nH | ±2% | 290 mA | - | Unshielded | 1.5Ohm Max | 35 @ 250MHz | 560MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
LCXND6060WHL101MMGFIXED IND 100UH 660MA 780MOHM SM |
3,030 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 660 mA | 650mA | Unshielded | 600mOhm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060YEL470MFIXED IND 47UH 1.1A 286 MOHM SMD |
3,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 220mOhm | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
HTEX25201T-4R7MSRIND SMD 4.7UH HOT PRESSED CHOKE |
3,000 |
|
Datasheet |
HTEX25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.4 A | 1.95A | Unshielded | 240mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

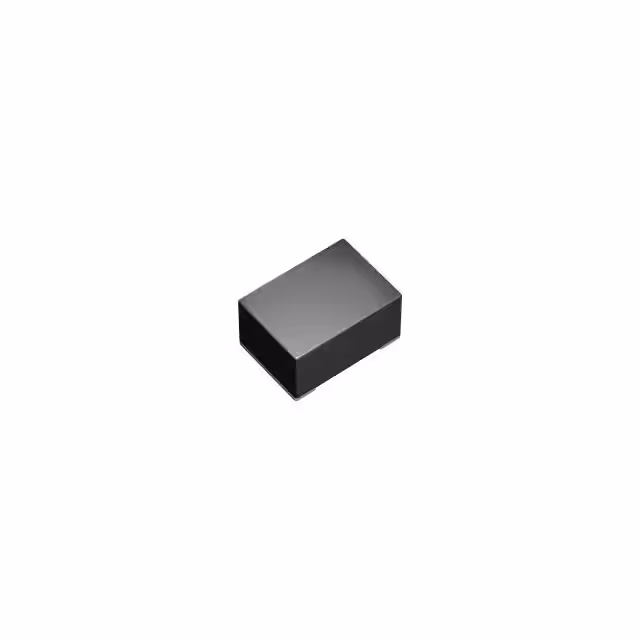

LSENC2520KKT4R7MFIXED IND 4.7UH SMD |
2,968 |
|
Datasheet |
LSEN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.5 A | 1.6A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AOTA-B201206SR47MTIND 0.47UH 4A 34MOHM |
2,915 |
|
Datasheet |
AOTA-B201206S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 4 A | 4.5A | Shielded | 34mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.026" (0.65mm) |
|
|
AOTA-B141208SR33MTIND 0.33UH 4A 27MOHM |
2,890 |
|
Datasheet |
AOTA-B141208S | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4 A | 5.2A | Shielded | 27mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
|
AOTA-B201206S2R2MTIND 2.2UH 1.5A 200MOHM |
2,820 |
|
Datasheet |
AOTA-B201206S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.5 A | 1.6A | Shielded | 200mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.026" (0.65mm) |
|
LSXBD6060YEL220MFIXED IND 22UH 1.5A 149.5MOHM SM |
2,732 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 1.9A | Shielded | 115mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
AOTA-B141208SR47MTIND 0.47UH 3.2A 32MOHM |
2,705 |
|
Datasheet |
AOTA-B141208S | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.2 A | 4A | Shielded | 32mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
|
HTEX25200H-100MSRIND SMD 10.0UH HOT PRESSED CHOKE |
2,641 |
|
Datasheet |
HTEX25200H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 850 mA | 1.05A | Unshielded | 760mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SDCH1V5020-221M-RIND 220 UH 0.36A SMT |
2,495 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 300 mA | 360mA | Shielded | 2.76Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

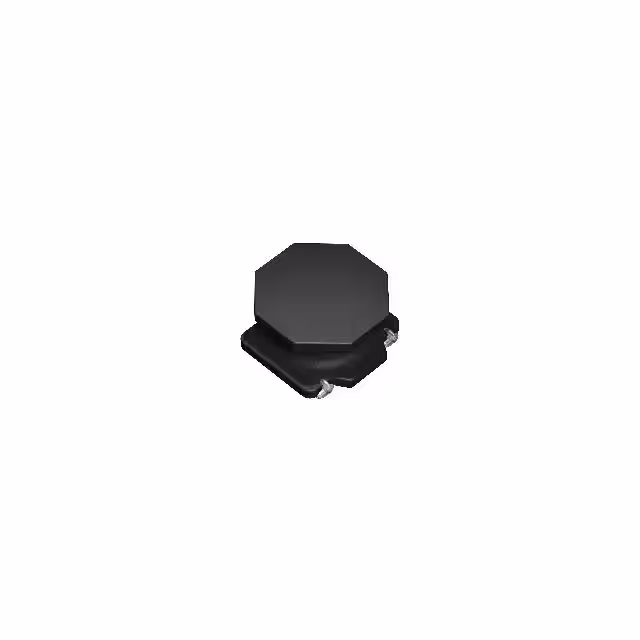

LSDND2020KKT100MMFIXED IND 10UH 630MA 690MOHM SMD |
2,274 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 630 mA | 750mA | Shielded | 690mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
AISC-1210-R39J-TFIXED IND 390NH 530MA 580MOHM SM |
2,272 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 530 mA | - | Unshielded | 580mOhm Max | 45 @ 150MHz | 510MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
