Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXBD4040TKL6R8MFIXED IND 6.8UH 1.06A 132MOHM SM |
3,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 1.06 A | 1.45A | Shielded | 110mOhm | - | 29MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

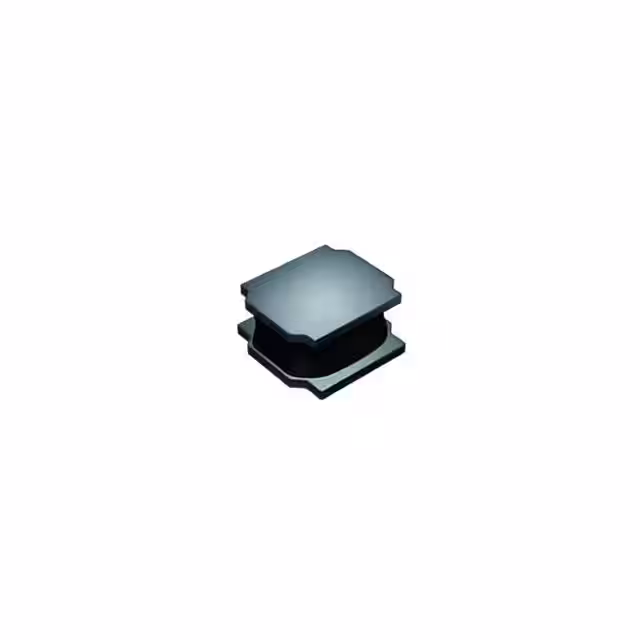

LSXBD4040TKL4R7MFIXED IND 4.7UH 1.2A 108MOHM SMD |
3,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.7A | Shielded | 90mOhm | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LSXBD4040TKL221MFIXED IND 220UH 170MA 4.8OHM SMD |
3,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 220 µH | ±20% | 170 mA | 270mA | Shielded | 4Ohm | - | 4MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LSXBD4040TKL101MFIXED IND 100UH 270MA 1.8OHM SMD |
3,350 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 270 mA | 400mA | Shielded | 1.5Ohm | - | 6.5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
CM453232-2R7JLFIXED IND 2.7UH 370MA 750MOHM SM |
3,000 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PE-1008CLH1R5STSFIXED IND 1.5UH 1.4A 91MOHM SMD |
3,000 |
|
Datasheet |
0805CLH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 µH | - | 1.4 A | 1.1A | Shielded | 91mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.083" W (2.50mm x 2.10mm) | 0.039" (1.00mm) |
|
|
SRN3012BTA-R22MFIXED IND 220NH 6.2A 0.019OHM SM |
2,996 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 6.2 A | 8A | Shielded | 19mOhm Max | 10 @ 1MHz | 410MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CM453232-R68KLFIXED IND 680NH 500MA 400MOHM SM |
2,992 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±10% | 500 mA | - | Unshielded | 400mOhm Max | 40 @ 25.2MHz | 135MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN3012BTA-1R2MFIXED IND 1.2UH 4A 0.056OHM SMD |
2,983 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 4 A | 3.3A | Shielded | 56mOhm Max | 10 @ 1MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1C1-252010-2R2MFIXED IND 2.2 UH 2.1A 70 MOHM |
2,975 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.1 A | 3A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
F1C1-252008-2R2MFIXED IND 2.2 UH 2.6A 77 MOHM |
2,973 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.6 A | 2.6A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SRN3012BTA-R68MFIXED IND 680NH 4.8A 0.037OHM SM |
2,946 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 4.8 A | 4.3A | Shielded | 37mOhm Max | 10 @ 1MHz | 175MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRN3012BTA-5R6MFIXED IND 5.6UH 1.9A 0.24OHM SMD |
2,931 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.9 A | 1.4A | Shielded | 240mOhm Max | 10 @ 1MHz | 55MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
LQM2MPZ4R7MG0LFIXED IND |
2,918 |
|
Datasheet |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
F1C1-252012-6R8MFIXED IND 6.8 UH 1.4A 270 MOHM |
2,917 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.4 A | 1.7A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFE2016CKA-1R0M=P2FIXED INDUCTOR 1UH 1.8A SMD |
2,910 |
|
Datasheet |
DFE18SBN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.8 A | 1.8A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
LQM2MPNR16MGHLFIXED IND 160NH 4A 18 MOHM SMD |
2,900 |
|
Datasheet |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 160 nH | ±20% | 4 A | 5A | Shielded | 18mOhm Max | - | 150MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRN3012BTA-1R5MFIXED IND 1.5UH 3.6A 0.062OHM SM |
2,896 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.6 A | 3A | Shielded | 62mOhm Max | 10 @ 1MHz | 102MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LQH2MCN220M52LFIXED IND 22UH 130MA 7.15OHM SMD |
2,717 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 130 mA | - | Unshielded | 7.15Ohm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
SRN3012BTA-6R8MFIXED IND 6.8UH 1.7A 0.252OHM SM |
2,691 |
|
Datasheet |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.7 A | 1.3A | Shielded | 252mOhm Max | 10 @ 1MHz | 50MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
