Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQP02HV2N8C02LFIXED IND 2.8NH 390MA NONAUTO |
29,950 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.8 nH | ±0.2nH | 390 mA | - | Unshielded | 210mOhm Max | 16 @ 500MHz | 11.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV3N2C02LFIXED IND 3.2NH 360MA NONAUTO |
29,900 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3.2 nH | ±0.2nH | 360 mA | - | Unshielded | 240mOhm Max | 16 @ 500MHz | 10.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV1N2C02LFIXED IND 1.2NH 730MA NONAUTO |
29,900 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.2nH | 730 mA | - | Unshielded | 60mOhm Max | 17 @ 500MHz | 16.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV8N2J02LFIXED IND 8.2NH 230MA NONAUTO |
29,900 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 8.2 nH | ±5% | 230 mA | - | Unshielded | 570mOhm Max | 16 @ 500MHz | 7.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV4N7J02LFIXED IND 4.7NH 360MA NONAUTO |
29,890 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 4.7 nH | ±5% | 360 mA | - | Unshielded | 240mOhm Max | 16 @ 500MHz | 7.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV0N8C02LFIXED IND 0.8NH 1000MA NONAUTO |
29,880 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.8 nH | ±0.2nH | 1 A | - | Unshielded | 30mOhm Max | 17 @ 500MHz | 16.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV2N0C02LFIXED IND 2NH 600MA NONAUTO |
29,870 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2 nH | ±0.2nH | 600 mA | - | Unshielded | 90mOhm Max | 17 @ 500MHz | 11.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV20NJ02LFIXED IND 20NH 140MA NONAUTO |
29,700 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 20 nH | ±5% | 140 mA | - | Unshielded | 1.48Ohm Max | 16 @ 500MHz | 4.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV1N7C02LFIXED IND 1.7NH 680MA NONAUTO |
29,700 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.7 nH | ±0.2nH | 680 mA | - | Unshielded | 70mOhm Max | 17 @ 500MHz | 12.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV15NJ02LFIXED IND 15NH 180MA NONAUTO |
29,675 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 15 nH | ±5% | 180 mA | - | Unshielded | 970mOhm Max | 16 @ 500MHz | 5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV0N6C02LFIXED IND 0.6NH 1000MA NONAUTO |
29,509 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.6 nH | ±0.2nH | 1 A | - | Unshielded | 30mOhm Max | 17 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV22NJ02LFIXED IND 22NH 140MA NONAUTO |
29,400 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 22 nH | ±5% | 140 mA | - | Unshielded | 1.48Ohm Max | 16 @ 500MHz | 4.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV27NJ02LFIXED IND 27NH 120MA NONAUTO |
28,890 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 27 nH | ±5% | 120 mA | - | Unshielded | 2Ohm Max | 16 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
.jpg)
|
LQP02HQ0N5B02LFIXED IND 0.5NH 1A 40 MOHM SMD |
28,400 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | - | 0.5 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 14 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|

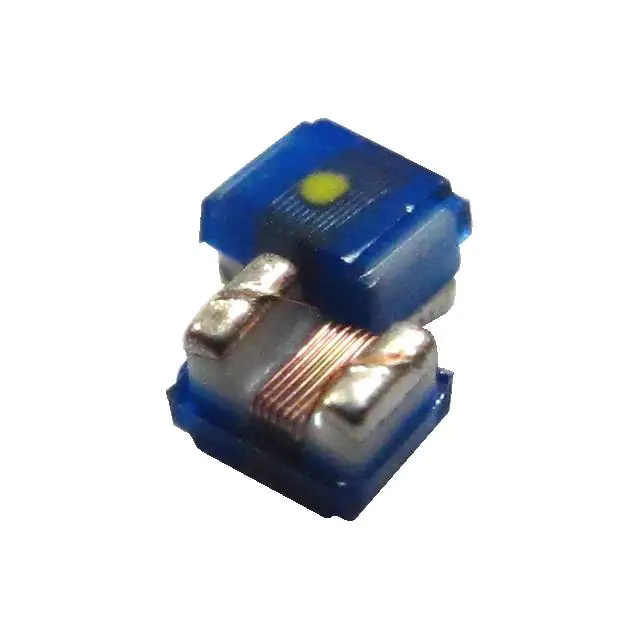

AWCS0016100882NJ00INDUCTOR RF |
28,000 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm Max | 34 @ 150MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
LQP02HV2N2C02LFIXED IND 2.2NH 600MA NONAUTO |
25,990 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.2 nH | ±0.2nH | 600 mA | - | Unshielded | 90mOhm Max | 17 @ 500MHz | 11.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HV2N4C02LFIXED IND 2.4NH 420MA NONAUTO |
24,993 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.4 nH | ±0.2nH | 420 mA | - | Unshielded | 180mOhm Max | 16 @ 500MHz | 11.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 1005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
LQW15AN8N0C10DFIXED IND 8NH 640MA 0.079OHM SMD |
24,903 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8 nH | ±0.2nH | 640 mA | - | Unshielded | 79mOhm Max | 30 @ 250MHz | 7.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLG1005SR10HTD25FIXED IND 100NH 200MA 2 OHM SMD |
20,000 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 100 nH | ±3% | 200 mA | - | Unshielded | 2Ohm Max | - | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S10NHTD25FIXED IND 10NH 500MA 350MOHM SMD |
19,985 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±3% | 500 mA | - | Unshielded | 350mOhm Max | 8 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
