FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQJ146EP-T1_GE3MOSFET N-CH 40V 75A PPAK SO-8 |
3,571 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7mOhm @ 15A, 10V | 3.5V @ 250µA | 27 nC @ 10 V | ±20V | 1500 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
BUK7Y25-60EXMOSFET N-CH 60V 34A LFPAK56 |
2,358 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 34A (Tc) | 10V | 25mOhm @ 10A, 10V | 4V @ 1mA | 16.1 nC @ 10 V | ±20V | 1043 pF @ 25 V | - | 64W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
BUK7M10-40EXMOSFET N-CH 40V 56A LFPAK33 |
1,950 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 10V | 10mOhm @ 15A, 10V | 4V @ 1mA | 19.5 nC @ 10 V | ±20V | 1231 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|

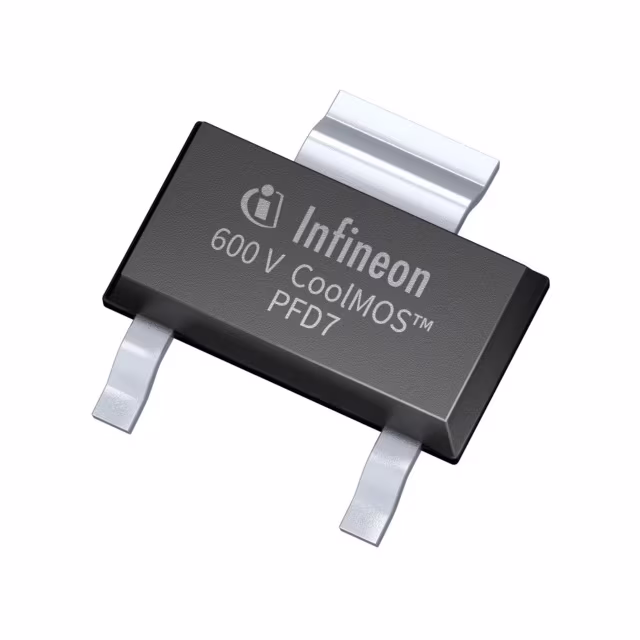

IPN60R600PFD7SATMA1CONSUMER PG-SOT223-3 |
8,772 |
|
Datasheet |
CoolMOS™ PFD7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 600mOhm @ 1.7A, 10V | 4.5V @ 80µA | 8.5 nC @ 10 V | ±20V | 344 pF @ 400 V | - | 7W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
DMNH6042SK3Q-13MOSFET N-CH 60V 25A TO252 |
2,356 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 6A, 10V | 3V @ 250µA | 8.8 nC @ 10 V | ±20V | 584 pF @ 25 V | - | 2W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
DMN6013LFGQ-7MOSFET N-CH 60V 10.3A PWRDI3333 |
1,750 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10.3A (Ta), 45A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 3V @ 250µA | 55.4 nC @ 10 V | ±20V | 2577 pF @ 30 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
NVTFS4C25NTAGMOSFET N-CH 30V 10.1A/22.1A 8DFN |
1,182 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.1A (Ta), 22.1A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.2V @ 250µA | 10.3 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 3W (Ta), 14.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
SI3458BDV-T1-GE3MOSFET N-CH 60V 4.1A 6TSOP |
30,815 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.1A (Tc) | 4.5V, 10V | 100mOhm @ 3.2A, 10V | 3V @ 250µA | 11 nC @ 10 V | ±20V | 350 pF @ 30 V | - | 2W (Ta), 3.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
TPN11006NL,LQMOSFET N-CH 60V 17A 8TSON |
13,285 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Tc) | 4.5V, 10V | 11.4mOhm @ 8.5A, 10V | 2.5V @ 200µA | 23 nC @ 10 V | ±20V | 2000 pF @ 30 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
AON7404MOSFET N-CH 20V 20A/40A 8DFN |
8,815 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Ta), 40A (Tc) | 2.5V, 4.5V | 6mOhm @ 20A, 4.5V | 1.6V @ 250µA | 43 nC @ 10 V | ±12V | 4630 pF @ 10 V | - | 3.1W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
RF4L040ATTCRPCH -60V -4A POWER, DFN2020, MOS |
5,937 |
|
Datasheet |
- | 6-PowerUDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4.5V, 10V | 89mOhm @ 4A, 10V | 2.5V @ 1mA | 17.3 nC @ 10 V | ±20V | 850 pF @ 30 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
FDMS0309ASMOSFET N-CH 30V 21A/49A 8PQFN |
5,921 |
|
Datasheet |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 49A (Tc) | 4.5V, 10V | 3.5mOhm @ 21A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
RS3E075ATTBMOSFET P-CH 30V 8SOP |
4,849 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | - | 4.5V, 10V | 23.5mOhm @ 7.5A, 10V | 2.5V @ 1mA | 25 nC @ 10 V | ±20V | 1250 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP-J |
|
NVMYS025N06CLTWGMOSFET N-CH 60V 8.5A/21A 4LFPAK |
2,450 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8.5A (Ta), 21A (Tc) | 4.5V, 10V | 27.5mOhm @ 7.5A, 10V | 2V @ 13µA | 5.8 nC @ 10 V | ±20V | 330 pF @ 25 V | - | 3.8W (Ta), 24W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
|
NVTFS052P04M8LTAGMOSFET P-CH 40V 4.7A/13.2A 8WDFN |
1,244 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 4.7A (Ta), 13.2A (Tc) | 4.5V, 10V | 69mOhm @ 5A, 10V | 2.4V @ 95µA | 6.3 nC @ 10 V | ±20V | 424 pF @ 20 V | - | 2.9W (Ta), 23W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
BUK9M10-30EXMOSFET N-CH 30V 54A LFPAK33 |
533 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 54A (Tc) | 5V | 7.8mOhm @ 15A, 10V | 2.1V @ 1mA | 12.2 nC @ 5 V | ±10V | 1249 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
DMT6015LPS-13MOSFET N-CH 60V PWRDI5060 |
9,988 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10.6A (Ta), 31A (Tc) | 4.5V, 10V | 16mOhm @ 10A, 10V | 2.5V @ 250µA | 18.9 nC @ 10 V | ±16V | 1103 pF @ 30 V | - | 1.16W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMP3028LPSQ-13MOSFET P-CH 30V 21A PWRDI5060-8 |
6,467 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Tc) | 4.5V, 10V | 28mOhm @ 7A, 10V | 2.4V @ 250µA | 22 nC @ 10 V | ±20V | 1372 pF @ 15 V | - | 1.28W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
TPN22006NH,LQMOSFET N-CH 60V 9A 8TSON |
5,752 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta) | 6.5V, 10V | 22mOhm @ 4.5A, 10V | 4V @ 100µA | 12 nC @ 10 V | ±20V | 710 pF @ 30 V | - | 700mW (Ta), 18W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.3x3.3) |
|
ZXMN6A08E6QTAMOSFET N-CH 60V 2.8A SOT26 |
4,473 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.8A (Ta) | 4.5V, 10V | 80mOhm @ 4.8A, 10V | 1V @ 250µA | 5.8 nC @ 10 V | ±20V | 459 pF @ 40 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-26 |
