FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN1R0-40YSHXMOSFET N-CH 40V 290A LFPAK56 |
8,827 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 290A (Tc) | 10V | 1mOhm @ 25A, 10V | 3.6V @ 1mA | 122 nC @ 10 V | ±20V | 9433 pF @ 20 V | Schottky Diode (Body) | 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56; Power-SO8 |
|
TK160F10N1L,LXGQMOSFET N-CH 100V 160A TO220SM |
5,719 |
|
Datasheet |
U-MOSVIII-H | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 160A (Ta) | 6V, 10V | 2.4mOhm @ 80A, 10V | 3.5V @ 1mA | 122 nC @ 10 V | ±20V | 10100 pF @ 10 V | - | 375W (Tc) | 175°C | - | - | Surface Mount | TO-220SM(W) |
|

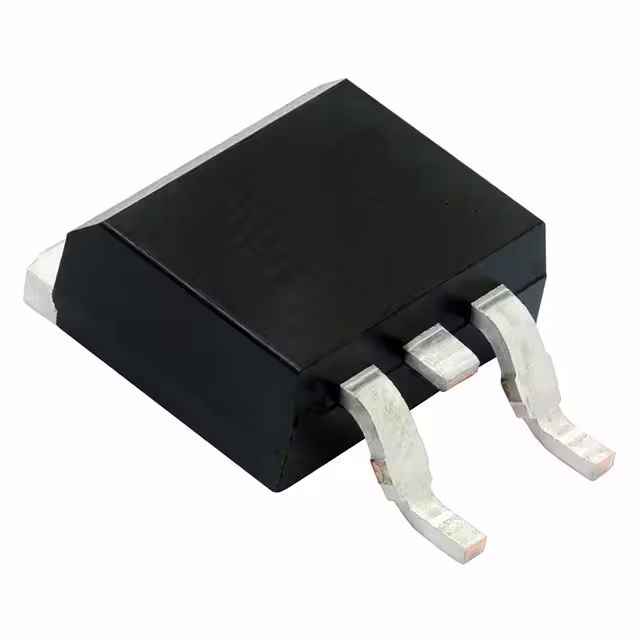

SIHB24N80AE-GE3MOSFET N-CH 800V 21A D2PAK |
1,036 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 21A (Tc) | - | 184mOhm @ 10A, 10V | 4V @ 250µA | 89 nC @ 10 V | ±30V | 1836 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SIHB22N60ET1-GE3MOSFET N-CH 600V 21A TO263 |
520 |
|
Datasheet |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
RCX330N25MOSFET N-CH 250V 33A TO220FM |
308 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 33A (Tc) | 10V | - | - | - | ±30V | - | - | 2.23W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
;;2.jpg)
|
STD7NM80MOSFET N-CH 800V 6.5A DPAK |
4,281 |
|
Datasheet |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6.5A (Tc) | 10V | 1.05Ohm @ 3.25A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STP13N80K5MOSFET N-CH 800V 12A TO220 |
1,013 |
|
Datasheet |
SuperMESH5™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Tc) | 10V | 450mOhm @ 6A, 10V | 5V @ 100µA | 29 nC @ 10 V | ±30V | 870 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
FCPF11N60FMOSFET N-CH 600V 11A TO220F |
960 |
|
Datasheet |
SuperFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 52 nC @ 10 V | ±30V | 1490 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
APT8M100BMOSFET N-CH 1000V 8A TO247 |
536 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 8A (Tc) | 10V | 1.8Ohm @ 4A, 10V | 5V @ 1mA | 60 nC @ 10 V | ±30V | 1885 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
PSMN1R7-60BS,118MOSFET N-CH 60V 120A D2PAK |
4,895 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2mOhm @ 25A, 10V | 4V @ 1mA | 137 nC @ 10 V | ±20V | 9997 pF @ 30 V | - | 306W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPB180N04S400ATMA1MOSFET N-CH 40V 180A TO263-7 |
3,937 |
|
Datasheet |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 0.98mOhm @ 100A, 10V | 4V @ 230µA | 286 nC @ 10 V | ±20V | 22880 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-3 |
|
IRFBF30STRLPBFMOSFET N-CH 900V 3.6A TO263 |
1,600 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | 10V | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IST007N04NM6AUMA1MOSFET N-CH 40V 54A/440A HSOF-5 |
1,043 |
|
Datasheet |
OptiMOS™ 6 | 5-PowerSFN | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 54A (Ta), 440A (Tc) | 6V, 10V | 0.7mOhm @ 100A, 10V | 3.3V @ 250µA | 152 nC @ 10 V | ±20V | 7900 pF @ 20 V | - | 3.8W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-5-4 |
|
|
STP10N105K5MOSFET N-CH 1050V 6A TO220 |
913 |
|
Datasheet |
MDmesh™ K5 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 6A (Tc) | 10V | 1.3Ohm @ 3A, 10V | 5V @ 100µA | 21.5 nC @ 10 V | 30V | 545 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STB28N65M2MOSFET N-CH 650V 20A D2PAK |
4,928 |
|
Datasheet |
MDmesh™ M2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 180mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 170W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SPP21N50C3XKSA1MOSFET N-CH 500V 21A TO220-3 |
1,903 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 190mOhm @ 13.1A, 10V | 3.9V @ 1mA | 95 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
SPA15N60C3XKSA1MOSFET N-CH 650V 15A TO220-FP |
211 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 280mOhm @ 9.4A, 10V | 3.9V @ 675µA | 63 nC @ 10 V | ±20V | 1660 pF @ 25 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-31 |
|
RS6L120BGTB1NCH 60V 120A, HSOP8, POWER MOSFE |
2,079 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 4.5V, 10V | 2.7mOhm @ 90A, 10V | 2.5V @ 1mA | 51 nC @ 10 V | ±20V | 3520 pF @ 30 V | - | 104W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
|
IRFS9N60ATRRPBFMOSFET N-CH 600V 9.2A D2PAK |
875 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.2A (Tc) | 10V | 750mOhm @ 5.5A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
FDP023N08B-F102MOSFET N-CH 75V 120A TO220-3 |
594 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2.35mOhm @ 75A, 10V | 3.8V @ 250µA | 195 nC @ 10 V | ±20V | 13765 pF @ 37.5 V | - | 245W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
