FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCAC160N06YHE3-TPMOSFET N-CH 60 160A DFN5060 |
4,791 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 160A (Tc) | 6V, 10V | 2.5mOhm @ 20A, 10V | 4V @ 250µA | 64 nC @ 10 V | ±20V | 3586 pF @ 20 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN5060 |
|

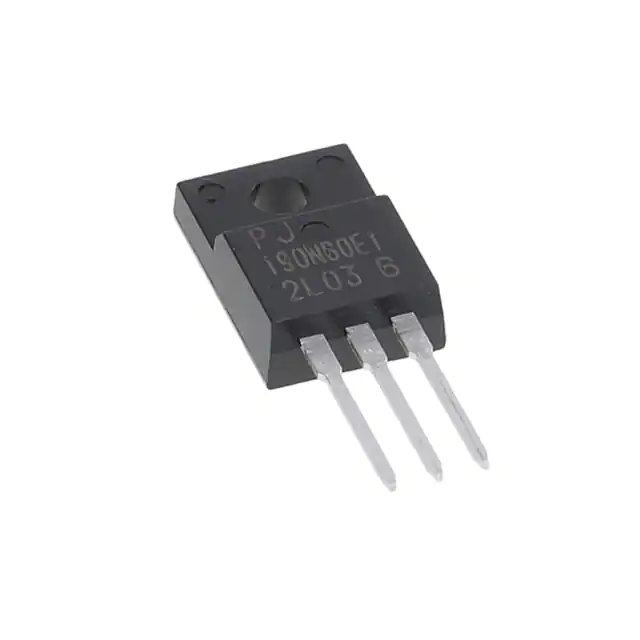

PJMF190N60E1_T0_00001600V SUPER JUNCITON MOSFET |
1,826 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 9.5A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±30V | 1410 pF @ 400 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB-F |
|
|
IAUMN08S5N013GAUMA1MOSFET_(75V 120V( |
1,965 |
|
Datasheet |
OptiMOS™ 5 | 4-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 250A (Tj) | 6V, 10V | 1.3mOhm @ 100A, 10V | 3.8V @ 214µA | 179 nC @ 10 V | ±20V | 12496 pF @ 40 V | - | 307W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-HSOG-4-1 |
|
FCPF190N60E-F154MOSFET N-CH 600V 20.6A TO220F-3 |
1,000 |
|
Datasheet |
SuperFET® II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.6A (Tj) | - | 190mOhm @ 10A, 10V | 3.5V @ 250µA | 82 nC @ 10 V | ±20V | 3175 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IPB65R190CFDATMA2MOSFET N-CH 650V 17.5A TO263-3 |
893 |
|
Datasheet |
CoolMOS™ CFD2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17.5A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 4.5V @ 700µA | 68 nC @ 10 V | ±20V | 1850 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
SIDR570EP-T1-RE3N-CHANNEL 150 V (D-S) 175C MOSFE |
5,990 |
|
Datasheet |
TrenchFET® Gen V | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 30.8A (Ta), 90.9A (Tc) | 7.5V, 10V | 7.9mOhm @ 20A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±20V | 3740 pF @ 75 V | - | 7.5W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8DC |
|
NVMFS5H600NLT1GMOSFET N-CH 60V 35A/250A 5DFN |
1,500 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Ta), 250A (Tc) | 4.5V, 10V | 1.3mOhm @ 50A, 10V | 2V @ 250µA | 89 nC @ 10 V | ±20V | 6680 pF @ 30 V | - | 3.3W (Ta), 160W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IRF740LCPBF-BE3MOSFET N-CH 400V 10A TO220AB |
975 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | - | 550mOhm @ 6A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±30V | 1100 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IQD009N06NM5CGATMA1OPTIMOS 6 POWER-TRANSISTOR |
4,872 |
|
Datasheet |
OptiMOS™ 5 | 9-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 42A (Ta), 445A (Tc) | 6V, 10V | 0.9mOhm @ 50A, 10V | 3.3V @ 163µA | 150 nC @ 10 V | ±20V | 12000 pF @ 30 V | - | 3W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TTFN-9-U02 |
|
|
TK7R4A15Q5,S4X150V UMOS10-HSD TO-220SIS 7.4MOH |
400 |
|
Datasheet |
U-MOSX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 57A (Tc) | 8V, 10V | 7.4mOhm @ 28.5A, 10V | 4.5V @ 1.4mA | 66 nC @ 10 V | ±20V | 4970 pF @ 75 V | - | 46W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
IPL60R180P6AUMA1MOSFET N-CH 600V 22.4A 4VSON |
4,990 |
|
Datasheet |
CoolMOS™ P6 | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22.4A (Tc) | 10V | 180mOhm @ 9A, 10V | 4.5V @ 750µA | 44 nC @ 10 V | ±20V | 2080 pF @ 100 V | - | 176W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-VSON-4 |
|
|
IPB60R160P6ATMA1MOSFET N-CH 600V 23.8A D2PAK |
2,219 |
|
Datasheet |
CoolMOS™ P6 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 9A, 10V | 4.5V @ 750µA | 44 nC @ 10 V | ±20V | 2080 pF @ 100 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
TSM60NE200CIT C0GMOSFET |
2,000 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V, 12V | 185mOhm @ 4A, 12V | 6V @ 1.65mA | 30 nC @ 10 V | ±30V | 1238 pF @ 300 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220TL |
|
IAUA180N10S5N029AUMA1MOSFET_(75V 120V( PG-HSOF-5 |
1,926 |
|
Datasheet |
OptiMOS™ | 5-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tj) | 6V, 10V | 2.9mOhm @ 90A, 10V | 3.8V @ 130µA | 105 nC @ 10 V | ±20V | 7673 pF @ 50 V | - | 221W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-5-4 |
|
TK210V65Z,LQMOSFET N-CH 650V 15A 5DFN |
4,630 |
|
Datasheet |
DTMOSVI | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Ta) | 10V | 210mOhm @ 7.5A, 10V | 4V @ 610µA | 25 nC @ 10 V | ±30V | 1370 pF @ 300 V | - | 130W (Tc) | 150°C | - | - | Surface Mount | 4-DFN-EP (8x8) |
|
|
MCB2D8N04YHQ-TPPOWER MOSFET |
1,600 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 164A (Tc) | 10V | 2.8mOhm @ 20A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 3540 pF @ 25 V | - | 136W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
RD3R05BBHTL1NCH 150V 50A, TO-252, POWER MOSF |
2,370 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 50A (Tc) | 6V, 10V | 29mOhm @ 25A, 10V | 4V @ 1mA | 37 nC @ 10 V | ±20V | 2150 pF @ 75 V | - | 89W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
TK7R2E15Q5,S1X150V UMOS10-HSD TO-220 7.2MOHM |
400 |
|
Datasheet |
U-MOSX-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Ta), 84A (Tc) | 8V, 10V | 7.2mOhm @ 42A, 10V | 4.5V @ 1.4mA | 66 nC @ 10 V | ±20V | 4970 pF @ 75 V | - | 230W (Tc) | 175°C | - | - | Through Hole | TO-220 |
|
|
IPT65R155CFD7XTMA1HIGH POWER_NEW |
2,000 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | - | - | 650 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PG-HSOF-8-3 |
|
|
NVMFWS003N10MCT1GPTNG 100V STD SO8FL HE |
1,420 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 23.7A (Ta), 169A (Tc) | 10V | 3.1mOhm @ 50A, 10V | 4V @ 351µA | 62 nC @ 10 V | ±20V | 4650 pF @ 50 V | - | 3.8W (Ta), 194W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
