FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFWS027N10MCLT1GPTNG 100V LL SO8FL |
1,265 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.9A (Ta), 28A (Tc) | 4.5V, 10V | 26mOhm @ 7A, 10V | 3V @ 38µA | 11.5 nC @ 10 V | ±20V | 800 pF @ 50 V | - | 3.5W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
.JPG)
|
TSM130NB06LCR RLGMOSFET N-CH 60V 10A/51A 8PDFN |
7,345 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 51A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 250µA | 37 nC @ 10 V | ±20V | 2175 pF @ 30 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
|
NTLJS4D9N03HTAGMOSFET N-CH 30V 9.5A 6PQFN |
0 |
|
Datasheet |
- | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V | 6.1mOhm @ 10A, 4.5V | 2.1V @ 250µA | 6.8 nC @ 4.5 V | ±12V | 1020 pF @ 15 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-PQFN (2x2) |
|
|
TSM070NB04LCR RLGMOSFET N-CH 40V 15A/75A 8PDFN |
5,000 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta), 75A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 2151 pF @ 20 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
|
TSM130NB06CR RLGMOSFET N-CH 60V 10A/51A 8PDFN |
4,880 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 51A (Tc) | 10V | 13mOhm @ 10A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±20V | 2380 pF @ 30 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
|
ZVN4206GTCMOSFET N-CH 60V 1A SOT223 |
3,975 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1A (Ta) | 5V, 10V | 1Ohm @ 1.5A, 10V | 3V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
DMT10H015LCG-7MOSFET N-CH 100V 9.4A/34A 8DFN |
3,536 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.4A (Ta), 34A (Tc) | 4.5V, 10V | 15mOhm @ 20A, 10V | 3.5V @ 250µA | 33.3 nC @ 10 V | ±20V | 1871 pF @ 50 V | - | 1W (Ta) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | V-DFN3333-8 |
|
DMTH10H015LPS-13MOSFET N-CH 100V PWRDI5060 |
2,480 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.3A (Ta), 44A (Tc) | 4.5V, 10V | 16mOhm @ 20A, 10V | 3V @ 250µA | 33.3 nC @ 10 V | ±20V | 1871 pF @ 50 V | - | 1.3W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
RSS100N03FRATBMOSFET N-CH 30V 10A 8SOP |
2,261 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13.3mOhm @ 10A, 10V | 2.5V @ 1mA | 20 nC @ 5 V | ±20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|

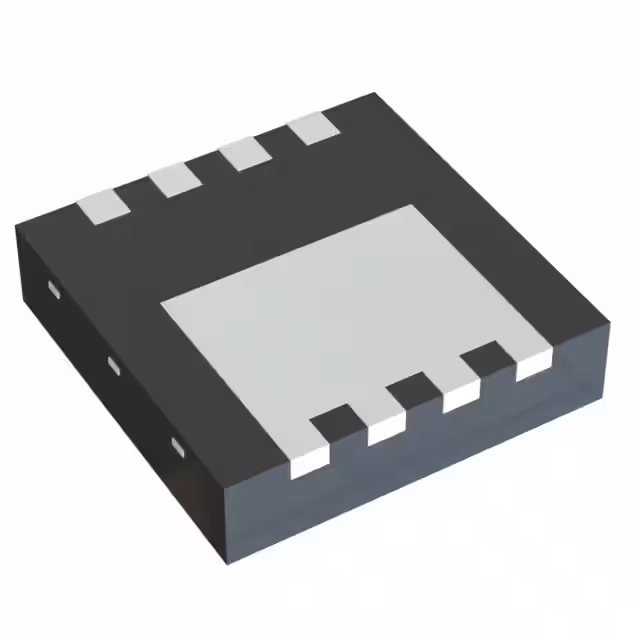

DMT64M8LCG-7MOSFET BVDSS: 61V~100V V-DFN3333 |
2,000 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 16.1A (Ta), 77.8A (Tc) | 4.5V, 10V | 4.8mOhm @ 20A, 10V | 2.4V @ 250µA | 47.5 nC @ 10 V | ±20V | 2664 pF @ 30 V | - | 990mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN3333-8 (Type B) |
|
|
NVMFS5H610NLWFT1GT8 60V LOW COSS |
1,475 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13A (Ta), 48A (Tc) | 4.5V, 10V | 10mOhm @ 8A, 10V | 2V @ 40µA | 13.7 nC @ 10 V | ±20V | 880 pF @ 30 V | - | 3.6W (Tc), 52W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
|
XP4060CMTMOSFET N-CH 30V 37A 100A PMPAK |
1,000 |
|
Datasheet |
XP4060C | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 37A (Ta), 100A (Tc) | 4.5V, 10V | 2.25mOhm @ 20A, 10V | 3V @ 250µA | 52.8 nC @ 10 V | ±20V | 3200 pF @ 25 V | - | 5W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PMPAK® 5 x 6 |
|
|
XP9565BGHMOSFET P-CH 40V 17A TO252 |
959 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 17A (Tc) | 4.5V, 10V | 52mOhm @ 8A, 10V | 3V @ 250µA | 12.5 nC @ 4.5 V | ±20V | 850 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
NVTFWS027N10MCLTAGPTNG 100V LL U8FL |
7,500 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.4A (Ta), 28A (Tc) | 4.5V, 10V | 26mOhm @ 7A, 10V | 3V @ 38µA | 11.5 nC @ 10 V | ±20V | 800 pF @ 50 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
MCG012N10YL-TPPOWER MOSFET |
5,000 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 3V @ 250µA | 28 nC @ 10 V | ±20V | 1370 pF @ 50 V | - | 78W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN3333 |
|
|
NVMYS020N08LHTWGT8 80V LL LFPAK |
3,499 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.7A (Ta), 30A (Tc) | 4.5V, 10V | 19.5mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 623 pF @ 40 V | - | 3.5W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
DMTH3004LK3Q-13MOSFET N-CH 30V 21A/75A TO252 |
2,201 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 75A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 3V @ 250µA | 44 nC @ 10 V | +20V, -16V | 2370 pF @ 15 V | - | 107W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
|
NVMFWS014P04M8LT1GMV8 40V P-CH LL IN S08FL PACKAGE |
1,508 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 12.5A (Ta), 52.1A (Tc) | 4.5V, 10V | 13.8mOhm @ 15A, 10V | 2.4V @ 420µA | 26.5 nC @ 10 V | ±20V | 1734 pF @ 20 V | - | 3.6W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
XP6677GHMOSFET P-CH 40V 60A TO252 |
992 |
|
Datasheet |
XP6677 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 60A (Tc) | 4.5V, 10V | 12.3mOhm @ 30A, 10V | 3V @ 250µA | 70 nC @ 4.5 V | ±20V | 5050 pF @ 25 V | - | 69W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
TSM051N04LCP ROG40V, 96A, SINGLE N-CHANNEL POWER |
5,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Ta), 96A (Tc) | 4.5V, 10V | 5.1mOhm @ 16A, 10V | 2.5V @ 250µA | 44.5 nC @ 10 V | ±20V | 2456 pF @ 20 V | - | 2.6W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
