FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI035N10PTMOSFET POWERQFN 3X3 N 100V 35A 0 |
4,854 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2.5V @ 250µA | 22 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|

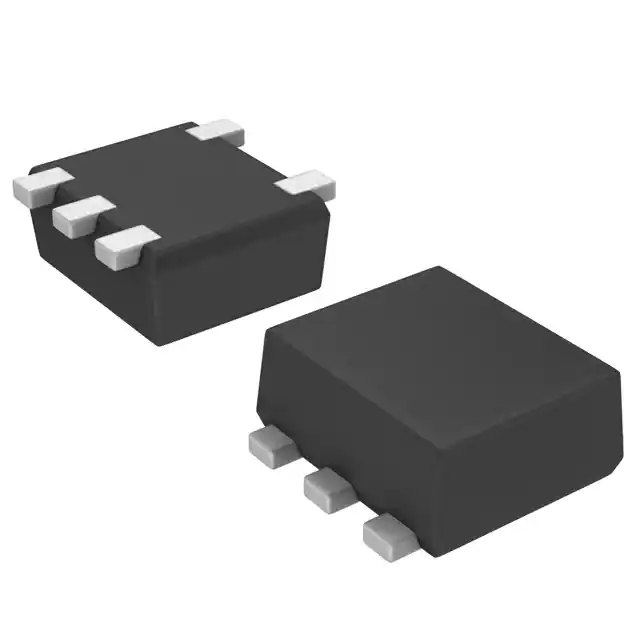

US5U1TRMOSFET N-CH 30V 1.5A TUMT5 |
2,765 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 2.5V, 4.5V | 240mOhm @ 1.5A, 4.5V | 1.5V @ 1mA | 2.2 nC @ 4.5 V | ±12V | 80 pF @ 10 V | Schottky Diode (Isolated) | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TUMT5 |
|
ZXMN6A08KTCMOSFET N-CH 60V 5.36A TO252-3 |
2,601 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.36A (Ta) | 4.5V, 10V | 80mOhm @ 4.8A, 10V | 3V @ 250µA | 5.8 nC @ 10 V | ±20V | 459 pF @ 40 V | - | 2.12W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
MCU05N20A-TPMOSFET N-CH 200VDS 30VGS 5A 78W |
2,500 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 5A (Tc) | 10V | 600mOhm @ 2.5A, 10V | 4V @ 250µA | 14.6 nC @ 10 V | ±20V | 222 pF @ 25 V | - | 90W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI2A7N70D1KMOSFET DPAK N 700V 1.6OHM 150C |
2,485 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 2.7A (Tc) | 10V | 1.6Ohm @ 1A, 10V | 3.5V @ 250µA | 5.8 nC @ 10 V | ±20V | 209 pF @ 350 V | - | 34.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
NTMFS020N06CT1GMOSFET N-CH 60V 9A/28A 5DFN |
1,476 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta), 28A (Tc) | 10V | 19.6mOhm @ 4A, 10V | 4V @ 20µA | 5.8 nC @ 10 V | ±20V | 355 pF @ 30 V | - | 3.4W (Ta), 31W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
DMP6110SSDQ-13MOSFET P-CHANNEL 60V 7.8A 8SO |
4,980 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 7.8A (Tc) | 4.5V, 10V | 105mOhm @ 4.5A, 10V | 3V @ 250µA | 17.2 nC @ 10 V | ±20V | 969 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
|
DMTH10H032LFVWQ-13MOSFET BVDSS: 61V~100V PowerDI33 |
1,441 |
|
Datasheet |
- | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 26A (Tc) | 4.5V, 10V | 30mOhm @ 10A, 10V | 2.5V @ 250µA | 11.9 nC @ 10 V | ±20V | 683 pF @ 50 V | - | 1.7W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
|
NVTFS6H888NWFTAGMOSFET N-CH 80V 4.7A/12A 8WDFN |
1,400 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 4.7A (Ta), 12A (Tc) | 10V | 55mOhm @ 5A, 10V | 4V @ 15µA | 4.7 nC @ 10 V | ±20V | 220 pF @ 40 V | - | 2.9W (Ta), 18W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
RUL035N02TRMOSFET N-CH 20V 3.5A TUMT6 |
681 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 1.5V, 4.5V | 43mOhm @ 3.5A, 4.5V | 1V @ 1mA | 5.7 nC @ 4.5 V | ±10V | 460 pF @ 10 V | - | 320mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TUMT6 |
|
|
IAUCN04S7N040DATMA1MOSFET_(20V 40V) |
497 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PJQ4439EP-AU_R2_002A130V P-CHANNEL ENHANCEMENT MODE M |
4,955 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 31A (Tc) | 4.5V, 10V | 19.1mOhm @ 10A, 10V | 2.5V @ 250µA | 22 nC @ 10 V | ±25V | 1012 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
|
SISS30LDN-T1-UE3N-CHANNEL 80 V (D-S) MOSFET 150 |
3,000 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 16A (Ta), 55.5A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 50 nC @ 10 V | ±20V | 2070 pF @ 40 V | - | 4.8W (Ta), 57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
DMS3014SFGQ-13MOSFET N-CH 30V 9.5A PWRDI3333-8 |
2,965 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V, 10V | 14.5mOhm @ 10.4A, 10V | 2.2V @ 250µA | 19.3 nC @ 10 V | ±12V | 4310 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
|
DMTH10H032LPSWQ-13MOSFET BVDSS: 61V~100V POWERDI50 |
2,457 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Tc) | 4.5V, 10V | 32mOhm @ 5A, 10V | 2.5V @ 250µA | 11.9 nC @ 10 V | ±20V | 683 pF @ 50 V | - | 3.4W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
DMN3007LSSQ-13MOSFET N-CHANNEL 30V 16A 8SO |
1,698 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.1V @ 250µA | 64.2 nC @ 10 V | ±20V | 2714 pF @ 15 V | - | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NTTFS016N06CTAGMOSFET N-CH 60V 8A/32A 8WDFN |
1,400 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta), 32A (Tc) | 10V | 16.3mOhm @ 5A, 10V | 4V @ 25µA | 6.9 nC @ 10 V | ±20V | 489 pF @ 30 V | - | 2.5W (Ta), 36W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
XP161A1355PR-GMOSFET N-CH 20V 4A SOT89 |
990 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 50mOhm @ 2A, 4.5V | - | - | ±8V | 390 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
DMP1022UFDEQ-7MOSFET P-CH 12V 9.1A 6UDFN |
705 |
|
Datasheet |
- | 6-PowerUDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 9.1A (Ta) | 1.2V, 4.5V | 16mOhm @ 8.2A, 4.5V | 800mV @ 250µA | 42.6 nC @ 5 V | ±8V | 2953 pF @ 4 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type E) |
|
|
PJQ4435EP_R2_0020130V P-CHANNEL STANDARD TRENCH MO |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
