FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD3NK60ZDMOSFET N-CH 600V 2.4A DPAK STMicroelectronics |
0 | - |
|
Datasheet |
SuperFREDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.4A (Tc) | 10V | 3.6Ohm @ 1.2A, 10V | 4.5V @ 50µA | 11.8 nC @ 10 V | ±30V | 311 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STP270N04MOSFET N-CH 40V 120A TO220AB STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.9mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7400 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
STS9NH3LLMOSFET N-CH 30V 9A 8SO STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ III | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Tc) | 4.5V, 10V | 22mOhm @ 4.5A, 10V | 1V @ 250µA | 10 nC @ 4.5 V | ±16V | 857 pF @ 25 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
STF11NM60NMOSFET N-CH 600V 10A TO220FP STMicroelectronics |
0 | - |
|
Datasheet |
MDmesh™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 450mOhm @ 5A, 10V | 4V @ 250µA | 31 nC @ 10 V | ±25V | 850 pF @ 50 V | - | 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STF12NM50NDMOSFET N-CH 500V 11A TO220FP STMicroelectronics |
0 | - |
|
Datasheet |
FDmesh™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±25V | 850 pF @ 50 V | - | 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STP80N340K6DISCRETE STMicroelectronics |
0 | - |
|
Datasheet |
- | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Tc) | 10V | 340mOhm @ 6A, 10V | 4V @ 100µA | 17.8 nC @ 10 V | ±30V | 950 pF @ 400 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STK20N75F3MOSFET N-CH 75V 20A POLARPAK STMicroelectronics |
0 | - |
|
Datasheet |

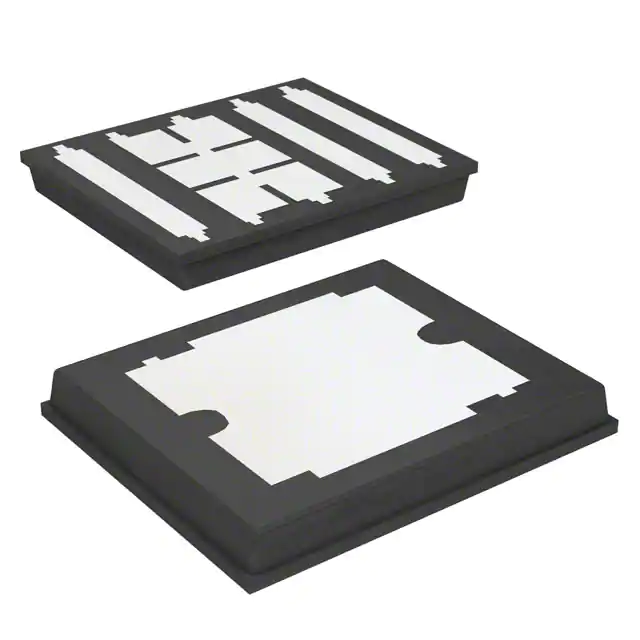

STripFET™ | PolarPak® | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 20A (Tc) | 10V | 7mOhm @ 10A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 5.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PolarPak® |
|
|
STP7NM80MOSFET N-CH 800V 6.5A TO220-3 STMicroelectronics |
0 | - |
|
Datasheet |
MDmesh™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6.5A (Tc) | 10V | 1.05Ohm @ 3.25A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STW24N60DM2MOSFET N-CH 600V 18A TO247 STMicroelectronics |
0 | - |
|
Datasheet |
FDmesh™ II Plus | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 200mOhm @ 9A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±25V | 1055 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STD12N65M5MOSFET N-CH 650V 8.5A DPAK STMicroelectronics |
0 | - |
|
Datasheet |
MDmesh™ V | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | 10V | 430mOhm @ 4.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 900 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
