FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMPB15XPAXMOSFET P-CH 12V 8.2A DFN2020MD-6 |
2,527 |
|
Datasheet |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8.2A (Ta) | 1.8V, 4.5V | 20mOhm @ 8.2A, 4.5V | 1V @ 250µA | 100 nC @ 4.5 V | ±12V | 2875 pF @ 6 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
DMP3098LSS-13MOSFET P-CH 30V 5.3A 8SOP |
2,454 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 4.5V, 10V | 65mOhm @ 5.3A, 10V | 2.1V @ 250µA | 7.8 nC @ 10 V | ±20V | 336 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
PMN48XPAXMOSFET P-CH 20V 4.1A 6TSOP |
2,355 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 13 nC @ 4.5 V | ±12V | 1000 pF @ 10 V | - | 530mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
SSM6K810R,LFSMALL SIGNAL MOSFET N-CH VDSS=10 |
5,744 |
|
Datasheet |
U-MOSVIII-H | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1.5W (Ta) | 175°C | - | - | Surface Mount | 6-TSOP-F |
|
|
DMT3020LFDFQ-7MOSFET BVDSS: 25V~30V U-DFN2020- |
5,000 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.4A (Ta) | 4.5V, 10V | 17mOhm @ 9A, 10V | 2.5V @ 250µA | 7 nC @ 10 V | ±20V | 393 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type F) |
|
DMN4040SK3-13MOSFET N-CH 40V 6A TO252-3 |
3,650 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 30mOhm @ 12A, 10V | 3V @ 250µA | 18.6 nC @ 10 V | ±20V | 945 pF @ 20 V | - | 1.71W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
PMPB10XNE,115MOSFET N-CH 20V 9A DFN2020MD-6 |
1,208 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Ta) | 1.8V, 4.5V | 14mOhm @ 9A, 4.5V | 900mV @ 250µA | 34 nC @ 4.5 V | ±12V | 2175 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
PJQ4463AP_R2_0000160V P-CHANNEL ENHANCEMENT MODE M |
9,955 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 4.2A (Ta) | 4.5V, 10V | 68mOhm @ 6A, 10V | 2.5V @ 250µA | 17 nC @ 10 V | ±20V | 879 pF @ 30 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
IAUCN04S7N030ATMA1MOSFET_(20V 40V) |
5,025 |
|
Datasheet |
OptiMOS™ 7 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A | 10V | - | - | - | - | - | - | - | -55°C ~ 100°C | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-33 |
|
|
SSM6K809R,LFSMALL SIGNAL MOSFET N-CH VDSS=60 |
3,272 |
|
Datasheet |
U-MOSVIII-H | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 5A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.5W (Ta) | 175°C | - | - | Surface Mount | 6-TSOP-F |
|

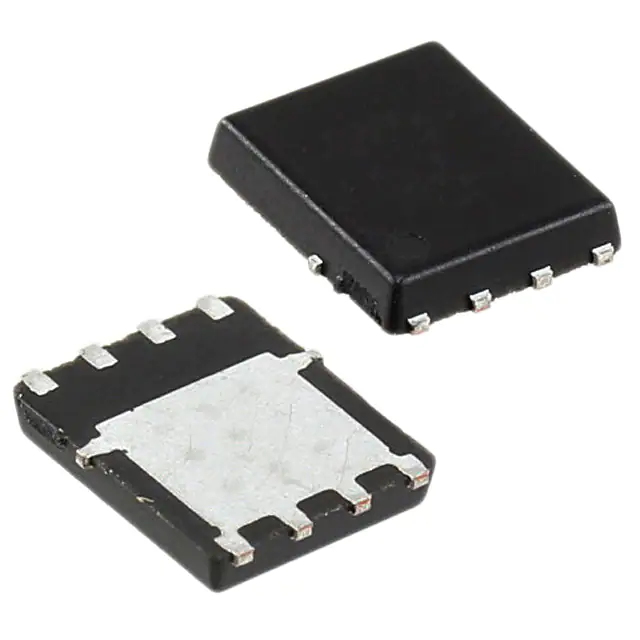

SIRA96DP-T1-GE3MOSFET N-CH 30V 16A PPAK SO-8 |
5,243 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 8.8mOhm @ 10A, 10V | 2.2V @ 250µA | 15 nC @ 4.5 V | +20V, -16V | 1385 pF @ 15 V | - | 34.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
DMN10H170SFDE-7MOSFET N-CH 100V 2.9A 6UDFN |
2,853 |
|
Datasheet |
- | 6-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.9A (Ta) | 4.5V, 10V | 160mOhm @ 5A, 10V | 3V @ 250µA | 9.7 nC @ 10 V | ±20V | 1167 pF @ 25 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type E) |
|
CSD23203WMOSFET P-CH 8V 3A 6DSBGA |
2,215 |
|
Datasheet |
NexFET™ | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 3A (Ta) | 1.8V, 4.5V | 19.4mOhm @ 1.5A, 4.5V | 1.1V @ 250µA | 6.3 nC @ 4.5 V | -6V | 914 pF @ 4 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|
|
PJQ4534P_R2_0020130V N-CHANNEL (LL) SGT MOSFET |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PJW5N10A_R2_00001100V N-CHANNEL ENHANCEMENT MODE |
2,245 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta), 5A (Tc) | 4.5V, 10V | 115mOhm @ 4A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 1413 pF @ 25 V | - | 3.1W (Ta), 5.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
PSMN047-100NSEXPSMN047-100NSE/SOT1220-2/DFN20 |
1,390 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 18.4A (Tc) | 10V | 53.4mOhm @ 5A, 10V | 3.6V @ 1mA | 13.3 nC @ 10 V | ±20V | 815 pF @ 50 V | - | 42W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
|
MCG30N04HE3-TPN-CHANNEL MOSFET, DFN3333 |
13,500 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 30A (Tc) | 4.5V, 10V | 14mOhm @ 20A, 10V | 2.5V @ 250µA | 23 nC @ 10 V | ±20V | 990 pF @ 25 V | - | 24W (Tj) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333 |
|
|
PMPB08R4VPHPPMPB08R4VP/SOT1220-2/DFN2020M- |
10,000 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 12A (Ta) | 1.8V, 4.5V | 9.6mOhm @ 12A, 4.5V | 900mV @ 250µA | 40 nC @ 4.5 V | ±8V | 2200 pF @ 6 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
PMN48XP,125MOSFET P-CH 20V 4.1A 6TSOP |
5,780 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 13 nC @ 4.5 V | ±12V | 1000 pF @ 10 V | - | 530mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

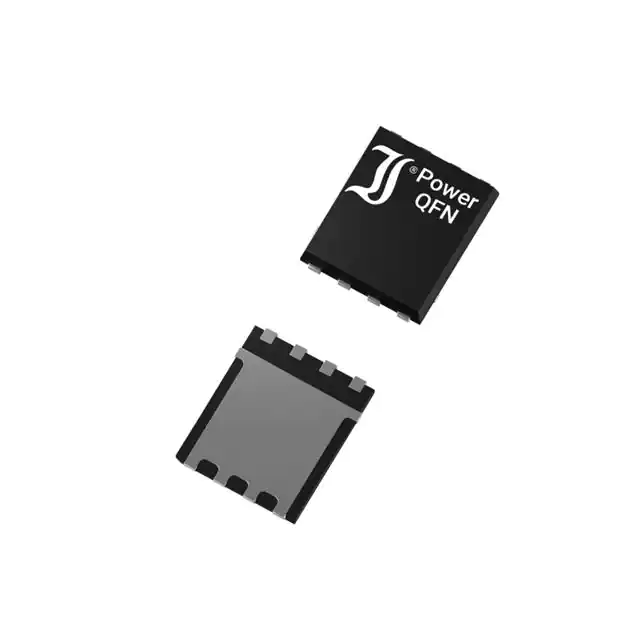

DI017N06PQ-AQMOSFET POWERQFN 5X6 N 60V |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | N-Channel | - | - | 17A | - | - | - | - | - | - | - | 21W | - | - | - | Surface Mount | PowerQFN 5x6 |
